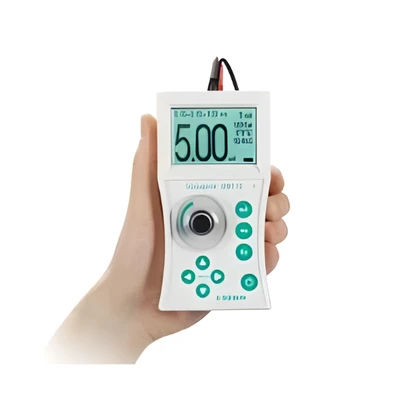

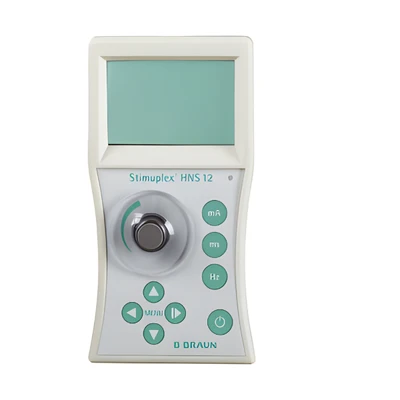

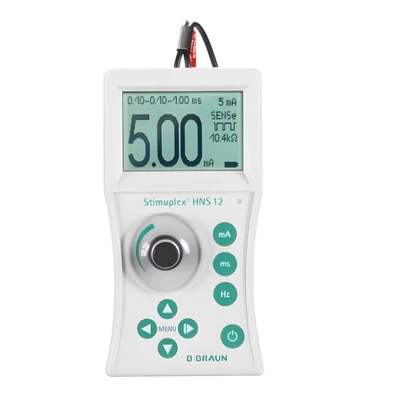

B Braun Stimuplex HNS 12 Peripheral Nerve Stimulator

New

Specifications

Instrument type: BF Battery: 9V (alkaline)
Power consumption: 6 mA (8 mA max.)
Stimulation current: Î = 5 mA (max.) (0–12 kΩ)
Stimulation voltage: Û = 95 V (max.)
Stimulation frequency: 1 Hz / 2 Hz ±1%/SENSe (3 Hz)
Stimulus duration: 0.05 ms – 0.10 ms – 0.30 ms – 0.50 ms – 1.00 ms ±1% SENSe (0.10 ms - 0.10 ms - 0.15 ms to 1.0 ms)
Allowable load impedance: 0 kΩ–12 kΩ
Current measuring accuracy: ± 0.02 mA
Impedance measuring range: 1 kΩ – 90 kΩ for target stimulation current > 0.5 mA
Impedance measuring accuracy: ±10%/±20% for target stimulation current>1mA/<= 1mA
Sound pressure level: 51 dB / 54 dB / 63 dB for stimulation/warning/error
Weight: 250g
Operational environmental conditions: 0 – 50° C, max. 90 % relative humidity, no condensation

highlights

Award-Winning Performance: Rated best overall nerve stimulator in clinical evaluations.
Advanced SENSe Technology: Ensures safe, easy, and efficient peripheral nerve stimulation for faster nerve localization.
Extended Motor Response: Helps maintain motor response for longer durations during procedures.
Customizable Stimulation: Adjustable pulse durations allow tailoring to specific procedural needs.
Enhanced Readability: Features an enlarged, full-graphic LCD display with high contrast and a wide viewing angle.
Multi-Language Support: Menu structure available in 26 languages for global usability.
Versatile Applications: Suitable for single and continuous nerve blocks.

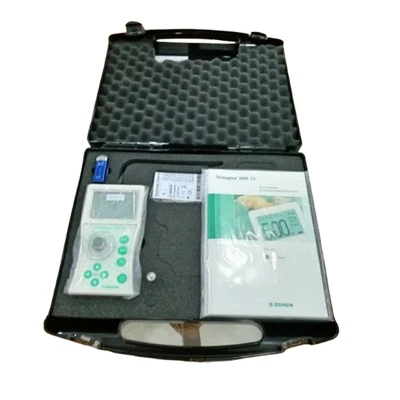

in the box

Stimuplex® HNS-12 nerve stimulator
9-volt block battery
Cable for connecting B. Braun stimulation needles (approx. 1.25 m)
10 kΩ test resistance
User Manual
CD-ROM with user manuals in multiple languages (PDF)
Brief instructions for use
Technical service manual
Storage case for keeping the stimulator and accessories together

Use Cases :

Peripheral nerve stimulation for regional anesthesia.
Localization of nerve fibers in tissue during surgical procedures.
Single nerve blocks.
Continuous nerve blocks.
Pain management therapies.

Key Features :

SENSe technology for safe and efficient nerve localization.
Maintains motor response for longer periods.
Adjustable pulse durations for procedural customization.
Enlarged, full-graphic LCD display for easy readability.
High contrast and wide viewing angle on the LCD display.
Menu structure available in 26 languages.
Suitable for single and continuous nerve blocks.
Load impedance measurement capability.
Electrical charge display.

Design Advantages :

Patented mode of functionality called SENSe, (Sequential Electrical Nerve Stimulation) can be turned on to help find the nerve sooner and maintain the motor response for longer.
Pulse duration can be changed, (0.1, 0.3 and 1.0 Ms) to target motor/ sensory nerve component for greater flexibility.
Disconnectand current threshold alarms provide audible alerts to reduce patient risk.
Resistance monitoring shows relationship between actual patient and desired current level for increased safety.

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The B. Braun Stimuplex HNS 12 Nerve Stimulator (4892098) stands out as a leading peripheral nerve stimulator, recognized for its superior performance and safety in clinical evaluations. Equipped with the innovative SENSe technology, this device facilitates secure, straightforward, and effective nerv...
