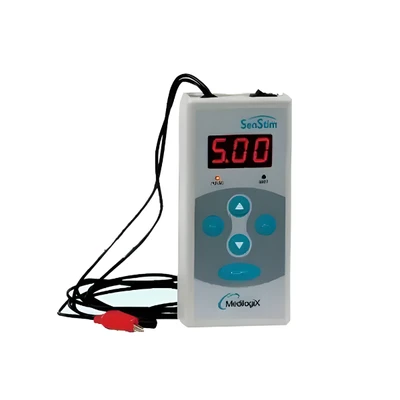

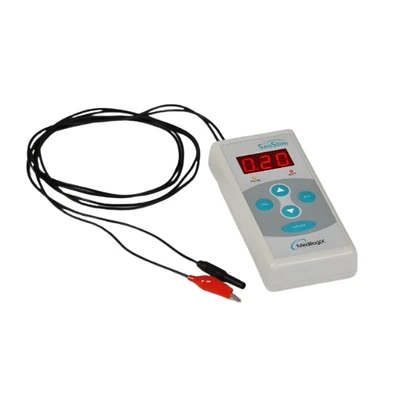

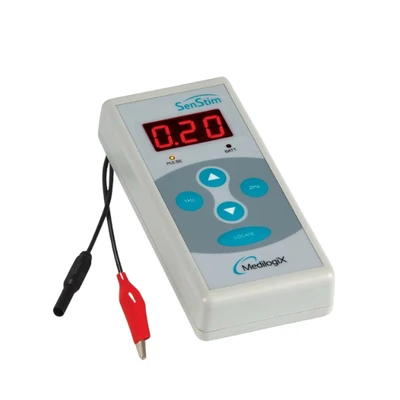

Medilogix Senstim Peripherial Nerve Stimulator

New

₹28,999₹45,00036% off

Specifications

Pulse Amplitude : 0.2mA to 5.0mA
Pulse Width : 0.1m sec
Pulse Frequency : 1Hz or 2 Hz switchable (Default 1 Hz)
Impedance : 0 to 5K Ohms
Display : 3 Digit 7 segment large display
Resolution : 0.01mA or 0.1mA
Battery : 9V, Type 6LR–61 or 6F22
Indication : Red LED flashing indicates battery. Yellow LED flashing with beep sound for delivery of each pulse when the circuit is closed.

highlights

Constant Current Stimulation Technology
Precise control over Pulse Amplitude, Width, and Frequency
Large and clear 3-Digit 7-Segment LED Display
Intuitive operation for efficient use
Portable and battery-operated design
Low battery warning indicator

in the box

Senstim Peripheral Nerve Stimulator
Stimuplex Insulated Needle
Carry Bag
User Manual

Use Cases :

Nerve mapping and localization
Diagnostic evaluation of peripheral nerve function
Assessment of neuromuscular blockade
Pre-operative nerve identification
Therapeutic nerve stimulation applications

Key Features :

Digital Display : Displaying the Impulse current from 0.20 to 5.0mA Pulse LED (Yellow) indicates that the device is ready.
Battery LED : Indicates low battery & battery should be replaced.
Frequency : The frequency can be toggled between 1Hz and 2Hz by holding the concerned key for 2 sec. The default frequency is 1Hz.
Beep Tone : Beep Tone is heard briefly during Self Test and after that it is triggered only when the circuit is closed.

Warranty

1 Year

Seller

AA MEDIE QUIPLearn More

Product Description

The Medilogix Senstim Peripheral Nerve Stimulator is a sophisticated instrument designed for precise nerve stimulation. It utilizes constant current technology to deliver controlled electrical impulses, allowing for accurate nerve mapping and functional assessment. The device features a user-friendl...
