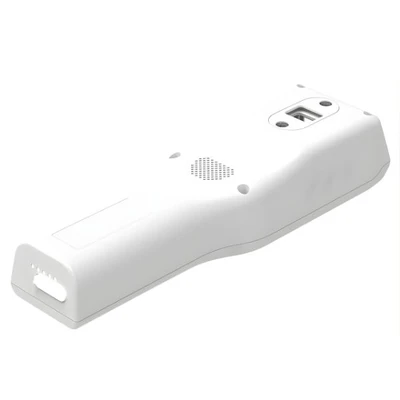

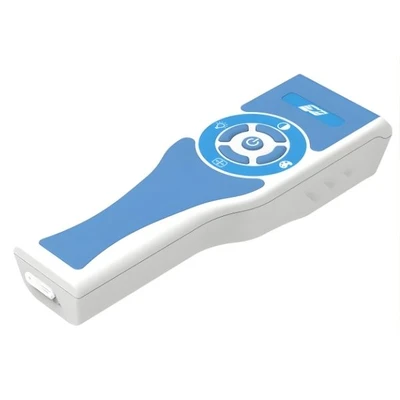

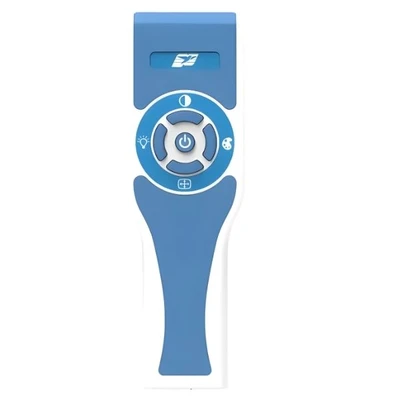

Pigeon DVA30 Vein Finder

New

₹76,000₹96,00021% off

Specifications

Brand : Pigeon
Model : DVA
Brightness Adjustment : High 338cd/m² (3.61lm) / Medium 234cd/m²(2.56lm) / Low 118cd/m²(1.28lm)
Infrared Wavelength : 400nm～650nm
Contrast Strength : Normal Mode, Enhanced Mode, Depth Mode
Imaging Color : Green/Blue, Purple/White, Green/White, Red/White, Black/White
Image Size : Full Size (81mm×49mm) / 1/2 Size / 1/3 Size
Imaging Distance : Focusing Distance 200mm±20mm
Minimum Diameter : 1.0mm
Image Accuracy : 0.2mm
Image Resolution Speed : 30 Frames/sec
Charging Indication : In charging state, the indicator light is on and flashing; in full state, the indicator light is on and does not flash
Low Battery Indicator : Battery voltage<3.5V±0.1V, low battery indicator light is always on
Battery : 3.7V 5.2Ah rechargeable Li-ion battery
Battery Life : ≥5 hours
Charging Time : 6 to 8 hours
Input Rate : 100～240VAC, 50～60Hz, 0.4A
Product Dimensions : 220mm(W) x 70mm(D) x 40mm(H)
Product Weight : 0.9kg

highlights

Improves first-stick success rate significantly
Reduces patient pain and anxiety
Enables non-contact vein visualization
Quick vascular assessment in seconds
Customizable display for different skin tones and environments
Lightweight and easy to operate
Battery-powered for mobility (no constant power needed)

in the box

DVA30 Vein Finder Unit
Rechargeable Lithium-ion Battery (built-in)
Power Adapter / Charger
User Manual / Operation Guide

Use Cases :

Venipuncture and IV access procedures
Pediatric and neonatal patients
Geriatric and obese patients with difficult vein access
Emergency and ICU settings
Chemotherapy and long-term infusion patients
Blood collection and diagnostic labs

Key Features :

Near-infrared light technology (non-radiative and safe)
Real-time vein projection on skin surface
High-resolution imaging with accurate vein alignment
Adjustable brightness levels and multiple color modes
Multiple projection sizes for better visualization
Portable, handheld, and battery-operated design
Detects veins as small as 1 mm diameter

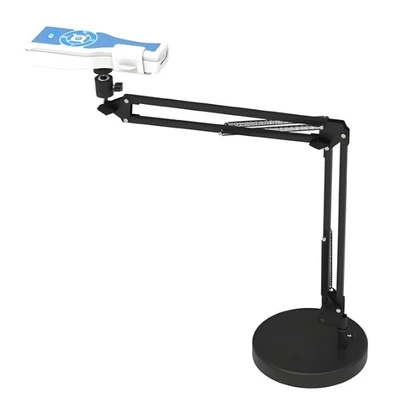

Supports different mounting options (mobile stand / fixed bracket)

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Pigeon DVA30 Vein Finder is a portable, handheld near-infrared vein visualization device designed to help healthcare professionals locate subcutaneous veins quickly and accurately. It projects real-time vein images onto the patient’s skin, enabling safer and more efficient venipuncture procedure...
