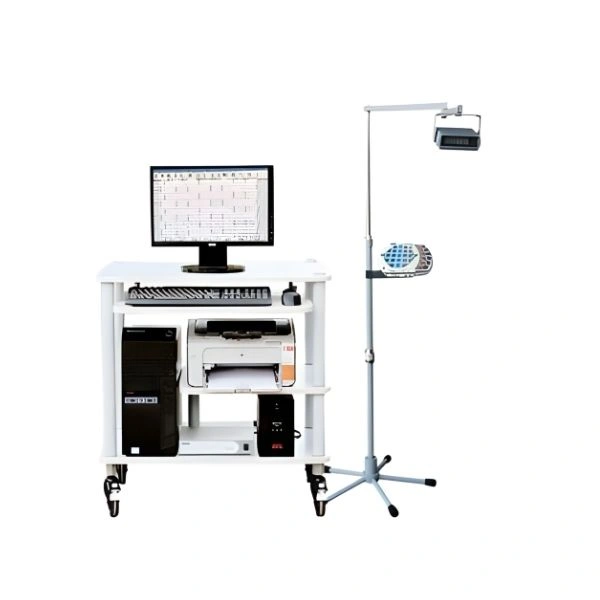

Clarity Brain Tech 40+ EEG Machine

New

₹2,05,000₹290,00029% off

Specifications

Product Name : Clarity Brain Tech 40+ EEG Machine
Brand : Clarity
Model : BrainTech 40+
EEG Channels : 24 / 32 / 40 input channels (configurable)
Display Channels : 24 / 32 / 40 (matching input)
Sampling Rate : 1024 Hz at ADC, 256 Hz stored
A/D Conversion : 16-bit resolution
Frequency Band Range : 0.1 – 100 Hz
Input Range : ±8 mV
Noise Level : < 1 µV P-P
CMRR : > 95 dB
Impedance Measurement : Automatic, built-in
Filters : Digital low/high/notch filters
Photic Stimulator : High-intensity white LEDs, 1 – 60 Hz
Dimensions (L×W×H) : 192 × 136 × 42 mm
Weight : < 420 g
Operating Temp. : 0 – 45 °C
Storage Temp. : –5 – 70 °C
Operating Humidity : 5 – 95 % RH (non-condensing)
OS Compatibility : Windows 7/8/10 (with specified hardware)
Required PC Specs : Intel i3 (7th Gen) or better, 4 GB RAM (Win7) / 8 GB (Win8/10)
Optional Upgrades : HD video EEG camera

highlights

Portable and lightweight EEG recording unit with robust software control.
Supports detailed editing, marking, and database management for clinical records.
High-intensity LED photic stimulation for standardized activation tests.
Optional HD video EEG integration enhances correlation between clinical events and EEG.
Flexible channel configuration (24/32/40) based on diagnostic needs.

in the box

EEG recording unit (Brain Tech 40+)
USB data/power cable
EEG electrodes and lead wires
Photic flash stimulator unit with cables
EEG paste or gel jars
Patient ground and event marker cables
User manual and warranty documentation
Trolley (optional depending on vendor configuration)
Additional accessories as per package (e.g., electrode adaptor, USB flat cables)

Use Cases :

Neurology departments & hospitals for routine EEG diagnostics and monitoring.
Epilepsy and seizure monitoring to detect and characterize abnormal brain activity.
Sleep laboratories for polysomnography and sleep disorder evaluations (with EEG integration).
Research and neuroscience labs — high-resolution EEG data for cognitive studies and experiments.
Continuous inpatient monitoring where high channel counts improve diagnostic accuracy.

Key Features :

Comprehensive 40-channel acquisition for detailed brainwave monitoring and diagnostics.
User-friendly software toolbar for intuitive control of gain, filters, and display settings.
Online/offline editing and event marking — easily annotate and revise EEG data.
Advanced database management with robust search and retrieval tools.
High-intensity LED photic stimulator for activation protocols during testing.
Optional HD video EEG camera with remote control (pan/tilt/zoom) available on request.
Support for multiple channel configurations — 24/32/40 channels depending on setup.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Clarity Brain Tech 40+ EEG Machine is an advanced 40-channel digital electroencephalograph (EEG) system designed to record and analyze brain electrical activity with high fidelity. It is intended to be used with a desktop or laptop computer, providing clinicians and researchers with powerful too...
