Clarity BrainTech 32+ 32-Channel EEG system

New

₹2,50,000₹340,00026% off

Specifications

Product Name : Clarity BrainTech 32+ 32-Channel EEG System
Brand : Clarity
Model : BrainTech 32+
EEG Channels : 32 simultaneous acquisition
Power Supply : USB powered (via PC/Laptop)
A/D Conversion : 24-bit resolution
Sampling Rate : 4096 Hz at ADC, 256 Hz for internal storage
Input Range : ±8 mV
Noise Level : < 1 µV P-P
Frequency Band Range : 0.1 – 100 Hz
Common Mode Rejection Ratio (CMRR) : > 110 dB
Impedance : > 10 MΩ
Filters : Digital low/high/notch filters
EEG Flash Stimulator : High-intensity white LEDs, 1–60 Hz
Dimensions (L × W × H) : 192 × 136 × 42 mm
Weight : < 360 g
OS Compatibility : Windows (7/8/10/11 and above)
Optional Upgrades : SpO₂ monitoring, HD video camera integration
Operating Temp. : 0 – 45 °C
Storage Temp. : –5 – 70 °C
Humidity : 5 – 95 % RH (non-condensing)

highlights

Portable, lightweight 32-channel EEG system
No external power — USB-powered setup
Real-time and post-processing editing/annotation tools
High-intensity EEG flash stimulator
Advanced EEG database management
Optional video and physiological monitoring upgrades

in the box

Clarity BrainTech 32+ EEG unit
USB data/power cable
High-intensity LED flash stimulator
EEG electrodes and leads
EEG paste or gel
Electrode placement card
User manual & warranty documentation
Optional accessories (depending on bundle): SpO₂ sensor, video camera module

Use Cases :

Neurology departments & clinics — routine EEG diagnostics and monitoring.
Sleep laboratories — recording brain activity during sleep studies.
Epilepsy monitoring — capturing seizure activity with EEG and optional synchronized video.
Research & neuroscience labs — high-resolution EEG data for analysis and experimentation.
Mobile diagnosis & outreach — portable design makes it ideal for mobile clinics or bedside assessments.

Key Features :

32-channel simultaneous EEG acquisition for detailed brainwave recording and analysis.
USB-powered operation — runs entirely from a connected PC or laptop without external power adapters.
Highly portable, compact module (<360 g) ideal for clinical, bedside, or mobile settings.
User-friendly interface & software with online/offline editing, marking, and database search features.
User-friendly interface & software with online/offline editing, marking, and database search features. EEG flash stimulation with high-intensity LEDs on rechargeable battery for activation protocols.
Advanced database management for efficient retrieval, annotation, and archiving of EEG records.
Optional HD video camera integration with remote control (pan/tilt/zoom) available.
Optional integrated SpO₂ monitoring support upon request.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

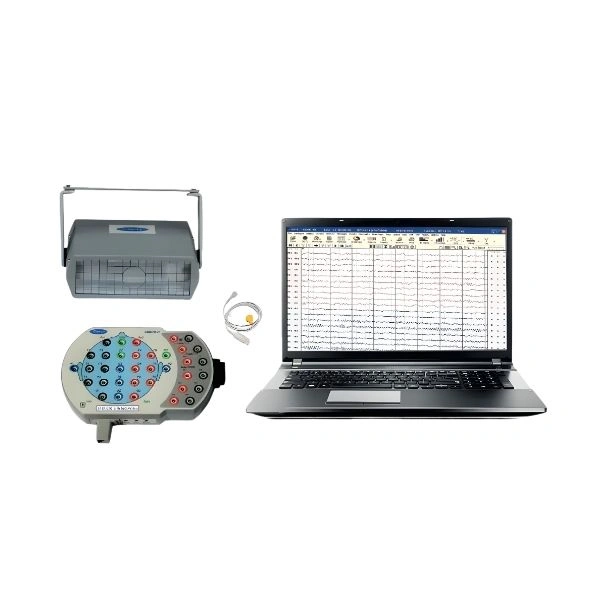

The Clarity BrainTech 32+ 32-Channel EEG System is a portable, PC-based electroencephalograph (EEG) that measures and records electrical activity of the brain from 32 channels. It’s designed to operate with a laptop or desktop via USB power, eliminating the need for external power supplies and enabl...
