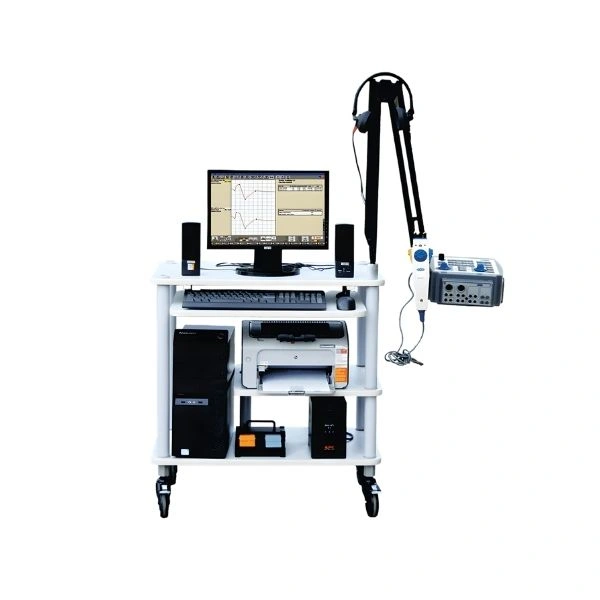

Clarity EMG-Octopus 2 Channel Electromyography Machine

New

Specifications

Brand : Clarity Medical
Model : EMG-Octopus 2 Channel
Channels : 2 (Expandable to 4 / 8)
Standard Tests Supported : EMG, NCS, Evoked Potentials (up to 17 diagnostics)
Amplifier Type : Low-noise, high-sensitivity amplifiers
Stimulator : Integrated electrical stimulator
Gain : 50 to 20,000 (with fine control)
Sensitivity : 0.1 µV/div to 50 mV/div
Sweep Range : 1 ms/div to 1000 ms/div
Noise Level : ≈0.4 µVRMS (100 Hz to 10 kHz)
Input Impedance : >10 MΩ
Filters : Low: DC–300/500 Hz; High: 100 Hz–20 kHz
Dynamic Range : ±100 mV min gain
Power Supply : AC 100–240 V
User Interface : Integrated panel with function keys

highlights

Comprehensive Test Support: Performs multiple electrophysiological tests from a single platform.
Expandable Design: Start with 2 channels and upgrade if future needs require more.
User-Focused Controls: Built-in function keys and easy-to-navigate interface support quick exams.
High-Quality Recordings: Low-noise amplifiers help ensure clean signal capture and reliable diagnosis.

in the box

Clarity EMG-Octopus 2 Channel EMG System main unit
Integrated stimulator module
Electrode leads and cables (for EMG and NCS)
Electrodes (surface and/or other types as specified)
Power cable and accessories
User manual and documentation
Warranty card / support documentation

Use Cases :

Neurology Clinics & Departments: Diagnosis of neuromuscular disorders, nerve injury, and muscle pathology.
Diagnostic Labs: EMG, NCS, and EP testing workflows in hospital labs and private diagnostic centers.
Rehabilitation Centers: Monitoring neuromuscular recovery and therapy progress.
Academic & Research Institutions: Teaching and research involving electrophysiological studies.

Key Features :

2-Channel EMG Acquisition: Dual amplifier channels suitable for standard electrophysiological testing.
Modular Hardware Design: Expandable up to 8 channels if needed for more advanced diagnostics.
17 Diagnostic Test Protocols: Supports a wide range of tests including EMG, NCS, and EP.
Integrated Electrical Stimulator: Built-in stimulator for peripheral nerve stimulation.
Low-Noise Amplifiers: High signal fidelity for accurate recording.
Dedicated Function Keys: Facilitates smooth clinical workflow and quick operation.
Ergonomic Setup: Often supplied with a sturdy cart and articulating arm for ergonomic placement.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Clarity EMG-Octopus 2 Channel Electromyography Machine is a sophisticated neurodiagnostic system designed for comprehensive electromyography (EMG) testing, nerve conduction studies (NCS), and evoked potential (EP) assessments. Built on a modular hardware architecture, it offers expandable channe...
