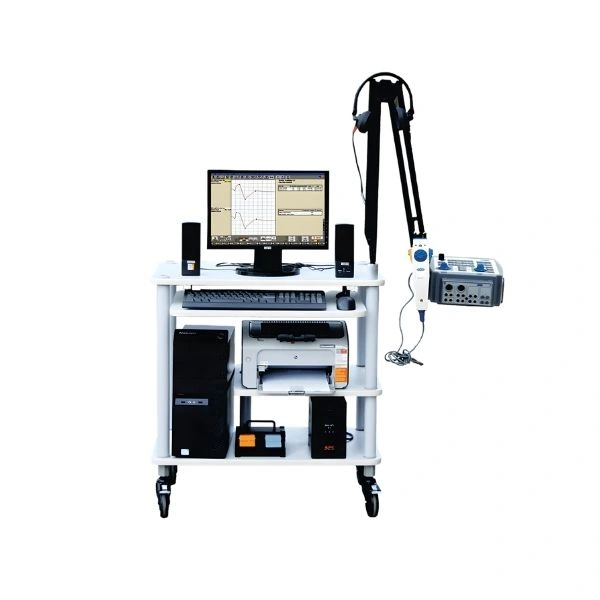

Clarity EMG-Octopus 4 Channel Electromyography Machine

New

Specifications

Product Name : Clarity EMG-Octopus 4-Channel EMG Machine
Brand : Clarity Medical
Model : Octopus
Amplifier Channels : 4 Channels (modular, upgradable to 8)
Diagnostic Tests Supported : EMG, NCS, EP — up to 17 predefined tests
Amplifier Type : Low-noise, high-sensitivity amplifiers
Stimulator : Built-in electrical stimulator
Sensitivity Range : ~0.1 µV/divn to tens of mV/divn (typical)
Sweep Range : 1 ms/divn to 1000 ms/divn
Noise Level : ≈0.4 µV RMS (100 Hz–10 kHz)
Dynamic Range : ±100 mV at minimum gain
Gain Range : ~50 – 20,000 with fine control
Input Impedance : >10 MΩ
Filters : Low: DC–300/500 Hz; High: 100 Hz–20 kHz
Sampling : Rate Up to ~80 kHz (system dependent)
Power Supply : AC 100–240 V
User Interface : Integrated panel with function keys

highlights

Modular System: Easily upgradeable hardware supports future channel expansion.
Multi-Modal Diagnostics: One platform for EMG, NCS and EP testing.
Enhanced Signal Quality: Low-noise amplifiers ensure precise measurements even in challenging clinical environments.
User-Centered Control Panel: Dedicated function keys facilitate quick operations and reduce setup time.

in the box

Octopus 4-Channel EMG Main Unit
Integrated Electrical Stimulator Module
Electrode Leads and Cables for EMG/NCS
Surface Electrodes
Power Cable and Accessories
User Manual / Quick Start Guide
Warranty & Support Documentation

Use Cases :

Neurology Departments: Diagnosing neuromuscular disorders, nerve injuries, radiculopathies and myopathies.
Electrophysiology Diagnostic Labs: Routine EMG, NCS and EP studies in hospital labs and independent centers.
Rehabilitation Clinics: Tracking recovery of nerve and muscle function during therapy.
Academic & Research Institutions: Teaching and research applications in electrophysiology and neural science.

Key Features :

4-Channel Acquisition: Supports simultaneous EMG data from up to 4 channels for comprehensive testing.
Modular Expandability: Hardware is modular and upgradable up to 8 channels if future needs grow.
17 Diagnostic Protocols: Includes EMG, NCS, and EP tests (e.g., MNC, SNC, F-Wave, H-Reflex).
Powerful Integrated Stimulator: Built–in stimulator used for nerve conduction and reflex testing.
Very Low-Noise Amplifiers: High-fidelity signal acquisition for accurate readings.
Ergonomic Operation Panel: Dedicated keys and panel for efficient test handling.
Intuitive UI: Designed for fast navigation and ease of use during testing.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Clarity EMG-Octopus 4-Channel Electromyography Machine is a professional EMG/NCS/EP diagnostic system designed for advanced clinical neurology and electrophysiology studies. Part of the modular Octopus series, it performs electromyography (EMG) tests, nerve conduction studies (NCS) and evoked po...
