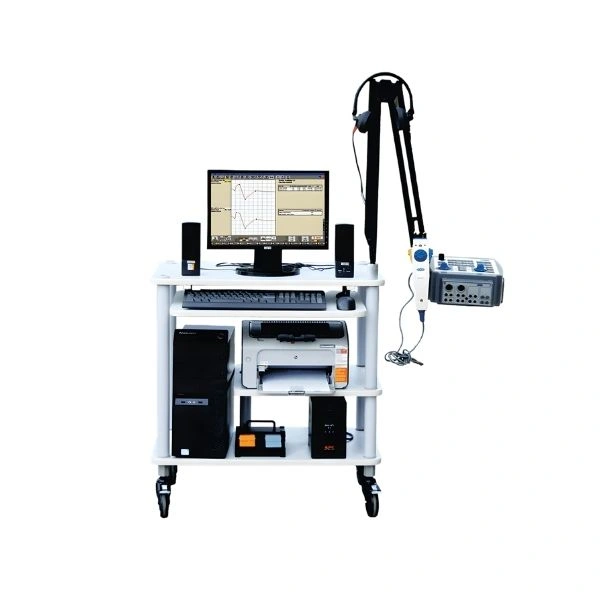

Clarity EMG-Octopus 8 Channel Electromyography Machine

New

Specifications

Product Name : Clarity EMG-Octopus 8 Channel EMG Machine
Brand/Manufacturer : Clarity Medical
Channels : 8-Channel Amplifier (modular hardware)
Diagnostic Tests Supported : EMG, NCS & Evoked Potentials (up to 17 protocols)
Amplifier Type : Extremely low-noise, high-sensitivity amplifiers
Integrated Stimulator : Yes – for nerve stimulation tests
Sensitivity Range : ~0.1 µV/div to tens of mV/div (typical for Octopus series)
Sweep Range : 1 ms/div to 1000 ms/div
Noise Level : ≈ 0.4 µV RMS (100 Hz – 10 kHz)
Input Impedance : >10 MΩ
Filters : Low: DC–300/500 Hz; High: 100 Hz–20 kHz
Gain Range : ~50–20,000 with fine control
Dynamic Range : ±100 mV at minimum gain
Resolution : ~0.02 µV at maximum gain
Sampling Rate : Up to ~80 kHz
Power Supply : AC 100–240 V
User Panel : Function keys and intuitive controls

highlights

Comprehensive Diagnostics: Combines EMG, NCS and EP functionality in one system.
Scalable Capacity: Modular hardware allows configuration from 2 to 8 channels depending on clinical need.
High-Fidelity Signal Capture: Low-noise circuitry enhances waveform clarity even in complex tests.
Built-In Stimulus Control: Facilitates diverse nerve conduction and reflex protocols without external add-ons.

in the box

Main Octopus 8-Channel EMG Machine unit
Integrated electrical stimulator module
Electrode leads and cables (for EMG, NCS and EP)
Surface and needle electrodes
Power cable and accessories
Mobile cart with articulating arm
User manual, documentation and warranty card

Use Cases :

Neurology Departments: Diagnostic evaluation of neuropathies, myopathies, motor unit disorders, radiculopathies and other neuromuscular conditions.
Clinical Diagnostic Labs: Routine EMG/NCS/EP testing as part of neurological diagnostic workflows.
Rehabilitation Clinics: Monitoring patient progress during neuromuscular rehabilitation programs.
Academic & Research Settings: Teaching and research applications in electrophysiology and neural science.

Key Features :

8 Channel Acquisition: High-resolution multi-channel amplifier enables simultaneous recording across eight channels for detailed neuromuscular analysis.
Modular Expandable Architecture: Built with a modular hardware concept (supports configurations up to 8 channels).
Supports 17 Diagnostic Tests: Performs a wide range of electrophysiological tests including EMG, NCS and EP protocols.
Integrated Electrical Stimulator: Built-in stimulator facilitates nerve conduction and reflex studies.
Low-Noise Amplifiers: Extremely low-noise amplifiers ensure high signal fidelity and clear waveform detection.
Ergonomic Operation Panel: Convenient control keys and a user-friendly interface support efficient examination and evaluation.
Sturdy Mobile Cart: Often supplied with a robust mobile cart and articulating arm for easy positioning and mobility.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Clarity EMG-Octopus 8 Channel Electromyography Machine is a professional-grade EMG/NCS/EP diagnostic system engineered for comprehensive neuromuscular assessment in hospitals, diagnostic labs, rehabilitation centres, and research institutions. Part of the Octopus series by Clarity Medical, this ...
