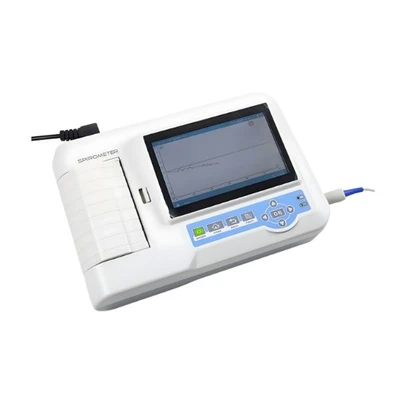

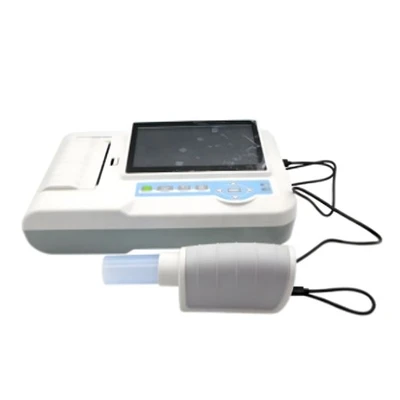

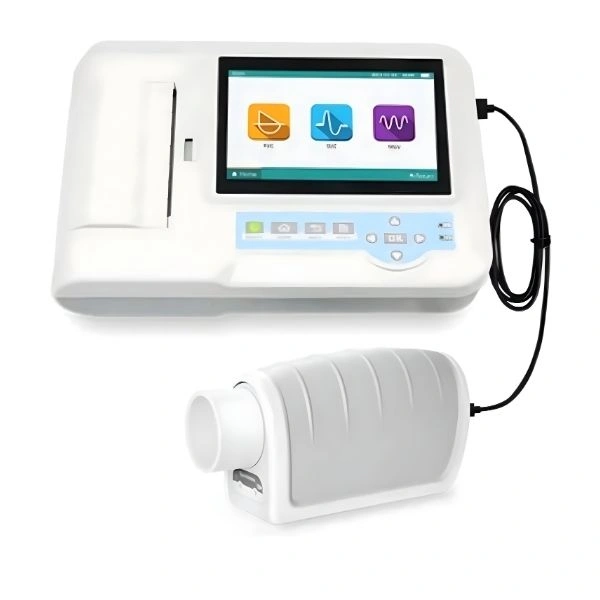

Contec SP100 Desktop Spirometer

New

₹44,000₹60,00027% off

Specifications

Volume Range : ±10 L
Volume Accuracy : ±3% or ±0.05 L
Flow Range : ±16 L/s
Flow Accuracy : ±5% or ±0.2 L/s
Screen : 7-inch color TFT touch screen
Waveforms : Flow-Volume & Volume-Time curves
Power Supply : 100–240 V AC, 50/60 Hz
Input Power : 60 VA
Optional built-in battery support
Dimensions : 315 × 215 × 92 mm
Weight : ~1.8 kg
Classification : Class I equipment, Type BF applied part

highlights

Portable yet desktop-grade diagnostic capability
Supports multiple test modes (FVC, VC, MVV)
Real-time visualization for better interpretation
User-friendly interface with touchscreen + animation guidance
Standalone operation (no PC required)
High data storage capacity for long-term patient tracking

in the box

SP100 Spirometer
Disposable Mouthpiece
Nose Clip
Recording Paper
Power Cord
User Manual

Use Cases :

Hospitals and diagnostic centers
Clinics and physician offices
Community health screening programs
Occupational health & industrial screening
Schools and epidemiological studies
Preventive healthcare checkups

Key Features :

Measures Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), and MVV along with 30+ parameters
Displays real-time respiratory waveforms (Flow-Volume loop & Volume-Time curve)
7-inch color TFT touch screen with button support
Built-in thermal printer for instant report printing
BTPS automatic correction (temperature, pressure, humidity compensation)
Calibration function for accuracy
Multiple predicted value settings for different populations
Data storage >10,000 records
Incentive animation guidance for easy use (children & elderly)
Lung age estimation function

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The SP100 is a portable desktop spirometer designed to measure pulmonary (lung) function parameters. It uses differential pressure measurement technology to analyze respiratory performance and provides results to support clinical diagnosis. It is suitable for hospitals, clinics, community health pro...
