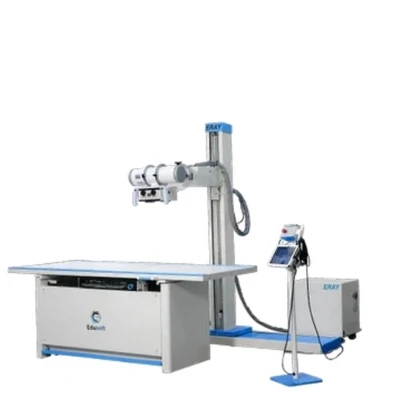

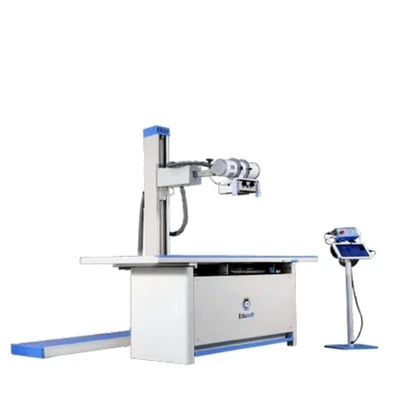

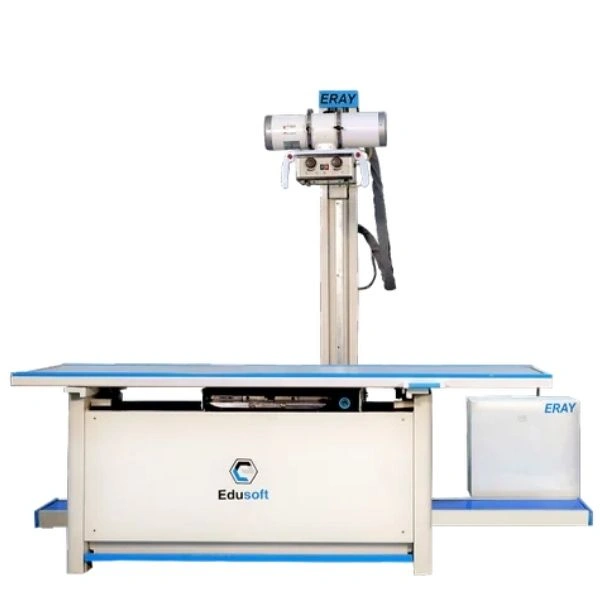

Edusoft ERAY RAD 630S Digital Fixed X‑Ray Machine

New

Specifications

Generator Power: 50 kW
Generator Type: High Frequency
kV Range: 40 kV – 150 kV
mA Range: 10 mA – 630 mA
Focal Spot Size: 0.6/1.5mm
Detector Size: 17”×17”
Exposure Time Range: 0.001 sec – 10 sec
Mas Range: 0.1-320 mAs (Note: A broader range of 0.4-800 mAs is mentioned in one source, but the primary range is listed as 0.1-320mAs for the RAD 630S.)
Table Type: Bucky Table
Anode Heat Capacity: 200 kHU
Power Supply: Three Phase, 440V, 50/60 Hz

Use Cases :

General Radiography
Orthopedic Imaging
Chest X-rays
Abdominal Imaging
Trauma Imaging
Specialized Radiographic Examinations

Key Features :

Powerful 50 kW High-Frequency Generator
Wide kV range (40-150 kV) for diverse examinations.
High mA output (up to 630 mA) for robust imaging.
Precise 0.6/1.5mm dual focal spot.
Large 17”×17” digital detector for extensive coverage.
Fast exposure control (0.001-10 seconds).
Integrated Bucky Table for stable positioning.
AERB Approved.
Digital Radiography Technology.
Manual Operation with 4-point technique display (kV, mA, time, mAs).
Max. 1280 anatomical programs with APR utility software.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Eray RAD 630S fixed X-ray machine, manufactured by Edusoft Healthcare, is a high-frequency, 50kW digital radiography system designed for use in hospitals and diagnostic centers. It is known for high-quality diagnostic imaging with minimal radiation exposure and a user-friendly interface. This ad...
