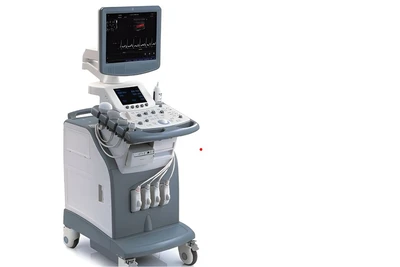

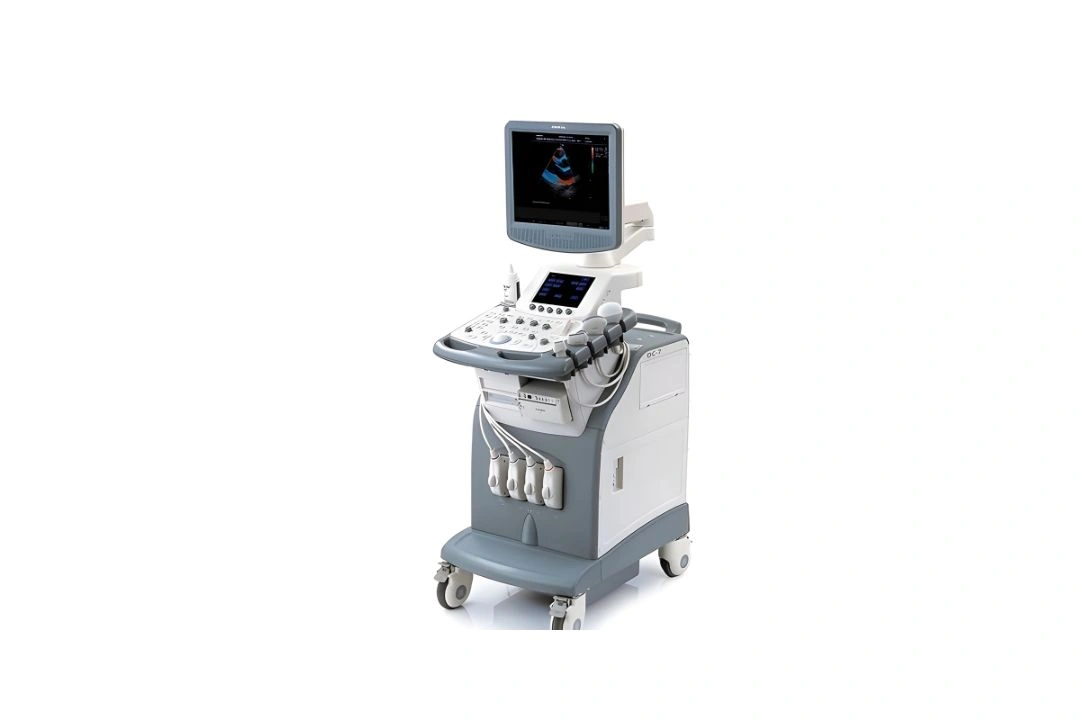

Mindray DC-7 Ultrasound System

Pre - Owned

Key Features:

Clinical Applications: Supports a wide range of exam types: abdominal, cardiology, gynecology, obstetrics, small parts, vascular, urology, and pediatrics.
4D Imaging: Real-time 4D capability enables volumetric imaging, especially useful in OB/GYN.
Doppler Modes: Color Doppler, Power Doppler, Directional Power Doppler, PW (pulsed-wave), and CW (continuous-wave) Doppler are supported.
Image Quality Enhancements: iBeam™: spatial compounding to reduce artifacts and improve border definition. ultrasoundportables.com iClear™: adaptive speckle suppression to clean up the image without blurring too much. ultrasoundportables.com Tissue harmonic imaging: for better contrast and resolution.

Technical Specifications

Imaging Modes : B-mode, 2B / 4B, M-mode, PW Doppler, CW Doppler, Color Doppler, Power Doppler, 4D / Volumetric imaging
Advanced Imaging Technology : iBeam (spatial compounding), iClear (speckle suppression), Frequency compounding, Tissue harmonic imaging
Doppler : Power Doppler, Directional Power Doppler, CW, PW (including Tissue Doppler Imaging, TDI)
Real-time 4D / Volume : Yes — supports 4D imaging.
Contrast Imaging : Supported
Intima-Media Thickness (IMT) : Automated measurement and analysis available.
Transducer / Probe Ports : 4 active probe connectors.
User Interface : Touch screen, iTouch for optimization, user presets, multifunction controls.
Display : High-resolution LCD on articulated arm.
Data / Connectivity : iStation (on-board), USB, DICOM 3.0 (Store, Print, Worklist, MPPS, Structured Reporting).
Storage : According to some specs, a 320 GB hard disk with capacity for ~200,000 still images.
Imaging Enhancements : Trapezoid imaging (for linear transducers)
Custom / Productivity Features : iZoom (full screen), iStation, user-programmable presets, fast system response.
DICOM Conformance : According to its DICOM Conformance Statement.
Regulatory / Certification : FDA cleared (510k) for multiple applications.

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Disclaimer : Product details are submitted by the seller. EquipMedy will carry out inspection and give you inspection report before you purchase.

Product Description

Good

Other Details

The Mindray DC-7 is a shared-service ultrasound system with a 17-inch high-resolution LCD monitor, a touch screen, and 3D/4D imaging capabilities. Its specifications include Color Doppler Velocity, iClear technology, iZoom, and support for a wide range of applications such as OB/GYN, cardiac, and vascular imaging. It also features connectivity ports, multiple transducer types, and a weight of approximately 265 lbs (120 kg).
