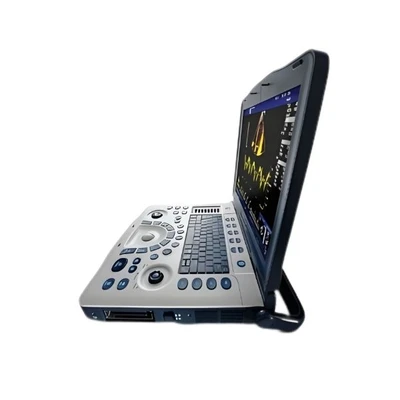

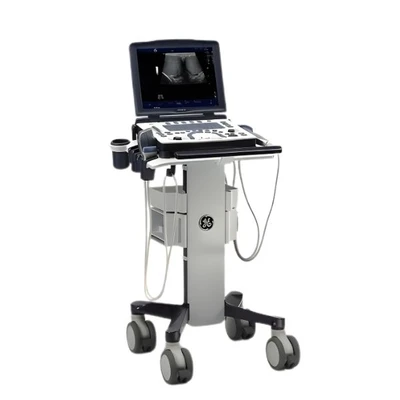

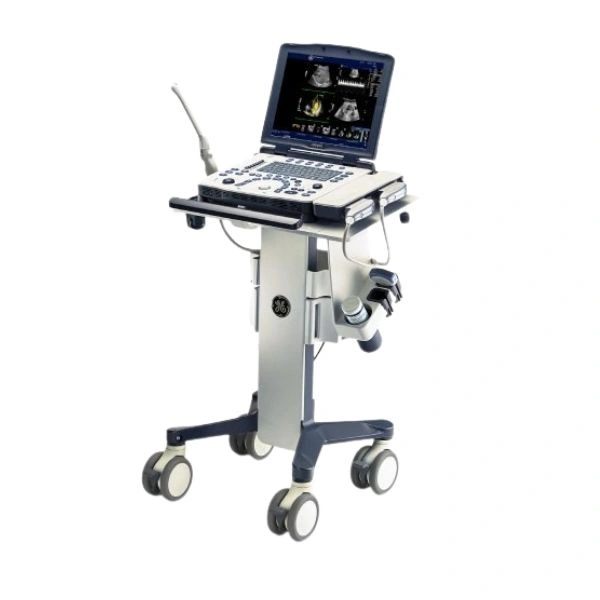

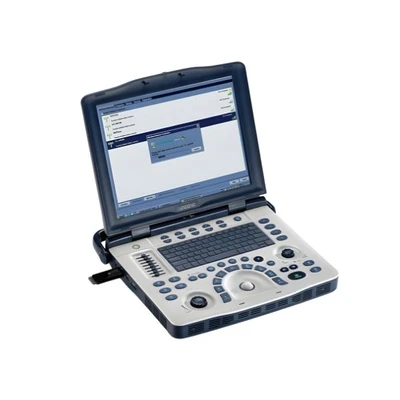

GE Healthcare LOGIQ-V2 Ultrasound Machine

New

Specifications

Display : 15″ high-resolution LCD (1024 × 768)
Dimensions (L×W×H) : ~396 × 368 × 83 mm
Weight ~ : 6 kg (with battery)
Scanning Modes : B-Mode, M-Mode, Color Flow, PW Doppler, Power Doppler
Advanced Imaging Tech : CHI, SRI-HD, CrossXBeam™
Automated Features : Auto Optimization, Auto IMT, SonoBiometry, Scan Assistant
User Interface : Ergonomic keyboard, programmable presets
Power Requirement : 100–240 VAC, 50/60 Hz, ≤ 200 VA
Ports : 1 active probe port (plus optional second)
Storage : Integrated SSD/HDD (varies with configuration)
Probe Types Supported : Convex, Linear, Sector (varies by clinical need)

highlights

Color Doppler Imaging for enhanced vascular and flow studies.
Advanced imaging tech derived from flagship LOGIQ systems.
Automated measurement tools to improve efficiency and reduce scan time.
Portable, compact form factor with 15" LCD display.
Designed for reliability and multi-year warranty support from GE Healthcare.

in the box

Main LOGIQ V2 ultrasound console
Power cable and adapter
One or more compatible ultrasound probes (e.g., convex, linear, sector) – often sold separately
User manual and quick start guides
On-board software and Scan Coach tutorial
Basic accessories (e.g., gel holder, probe holders)

Use Cases :

Abdominal imaging (liver, kidney, gallbladder)
Obstetrics & Gynecological exams (fetal and maternal assessment)
Vascular and peripheral vascular studies
Cardiac (basic cardiac imaging)
Small parts (thyroid, breast, testicles)
Pediatric and neonatal imaging
Transcranial and musculoskeletal applications

Key Features :

High-resolution imaging with Coded Harmonic Imaging (CHI) for improved penetration and clarity.
Real-time Speckle Reduction Imaging (SRI-HD) enhances tissue detail by reducing noise.
CrossXBeam™ spatial compounding enhances visualization of tissue interfaces.
Auto Optimization for fast, optimized B-mode images.
SonoBiometry automatically performs key fetal measurements.
Auto IMT automates carotid intima-media thickness measurement.
Scan Assistant/Scan Coach for guided scanning and protocol support.
Portable and lightweight (~6 kg), ideal for mobile scanning and small spaces.
Ergonomic keyboard and controls with intuitive operation.
Built-in high-resolution 15″ LCD display with wide viewing angles.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The GE Healthcare LOGIQ V2 is a compact, portable color Doppler ultrasound system that brings advanced imaging capabilities into a lightweight and easy-to-maneuver platform. It incorporates imaging technologies migrated from GE’s higher-end LOGIQ series, enabling clear, diagnostic quality imaging ac...
