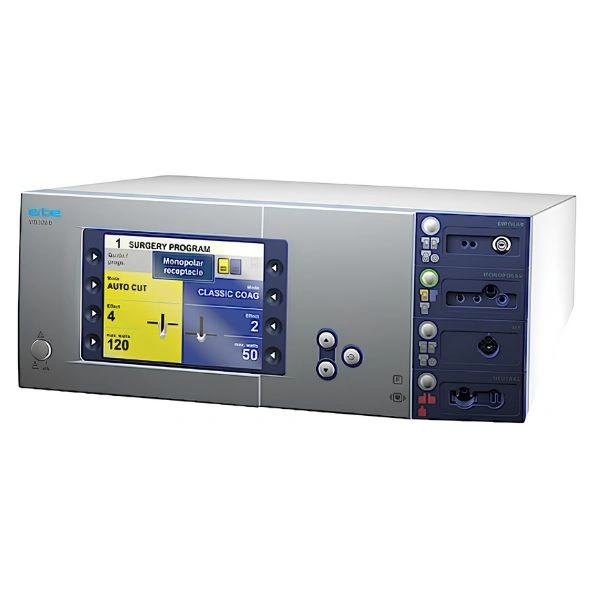

Erbe VIO 300 D ElectroSurgical Unit
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Type : Electrosurgical Generator
- Model : VIO 300 D
- Maximum Cut Power : 300 W @ 500 Ω
- Maximum Coag Power : Up to 200 W
- Frequency : 350 kHz
- Operating Modes : Monopolar / Bipolar
- Supply Voltage : 100–120 V / 220–240 V (±10%)
- Frequency Supply : 50 / 60 Hz
- Max Line Current : 8 A / 4 A
- Standby Power Consumption : 40 W
- Max HF Power Consumption : 500 W / 920 VA
- Dimensions (W × H × D) : 410 × 165 × 380 mm
- Weight : 9.5 kg
- Operating Temperature : +10°C to +40°C
- Relative Humidity : 15–80% (non-condensing)
- Safety System : NESSY Neutral Electrode Monitoring
highlights
- Premium electrosurgical platform for complex procedures
- Highly customizable workflow with programmable settings
- Reliable tissue effect across varying tissue impedances
- Modular expansion support (compatible with APC2, smoke evacuation, irrigation modules, etc.)
- Enhanced safety with NESSY neutral electrode monitoring
- Designed for consistent clinical performance in OR and endoscopy suites
in the box
- 1 × Erbe VIO 300 D Electrosurgical Generator
- 1 × Power Cable
- 1 × Footswitch (depending on configuration)
Use Cases :
- General Surgery
- Gastroenterology / Endoscopy
- Gynecology
- Urology
- ENT (Otolaryngology)
- Pulmonology
- Orthopedic Surgery
- Dermatology
- Vessel Sealing Procedures
Key Features :
- 300 W Maximum Cutting Output for demanding surgical applications
- Advanced Spark Recognition Technology for controlled and reproducible tissue cutting
- Constant Voltage Regulation with Power Dosing to automatically deliver the lowest effective power
- Power Peak System (PPS) improves cutting initiation, especially at low impedance
- Plug & Play Instrument Recognition automatically configures connected instruments
- ReMode® Function enables remote switching between modes via footswitch
- Full-Color TFT Display with intuitive interface
- FocusView & PreView for easier visualization of settings and tissue effects
- Multiple CUT and COAG modes for specialty procedures
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Erbe VIO 300 D is a premium high-frequency electrosurgical generator designed for advanced surgical and interventional endoscopy procedures. It delivers precise electrical energy for cutting, coagulation, desiccation, and vessel sealing with intelligent power regulation. The system supports both...
