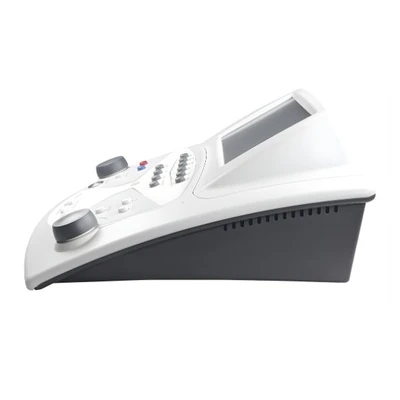

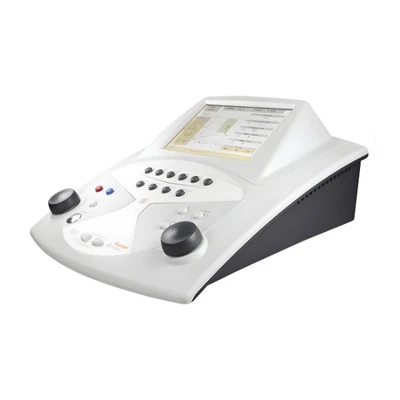

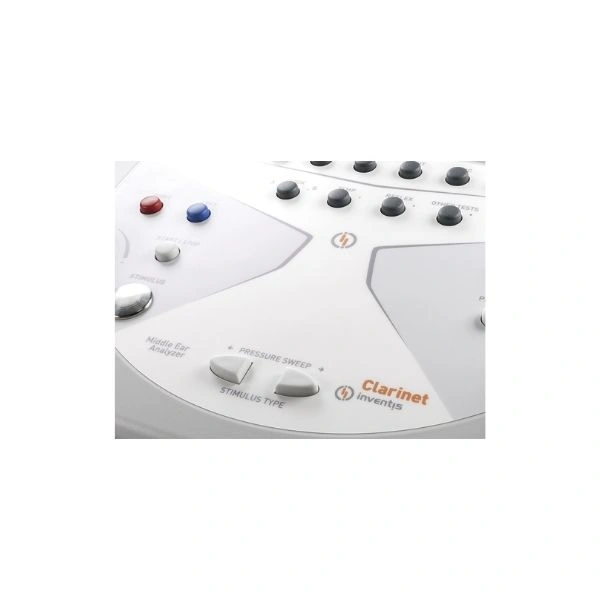

Inventis Clarinet Clinical Tympanometer

New

Specifications

Product Name : Inventis Clarinet Clinical Tympanometer
Configuration : Basic and Plus models available
Probe Tone Frequencies : 226 Hz standard; 678, 800, 1000 Hz (Plus)
Sound Level : 85 dB SPL @ 226 Hz; 80 dB/75 dB @ higher tones
Admittance Range : –2.0 to 8.0 mmho (@226 Hz); –4.0 to 16.0 mmho (Plus)
Pressure Range : –600 to +400 daPa (safety limits –800 to +600)
Sweep Speeds : 15–600 daPa/sec + AUTO
Tympanometry Modes : Automatic & Manual
Acoustic Reflex : Ipsilateral & Contralateral tests
ETF Tests : Williams & Toynbee methods

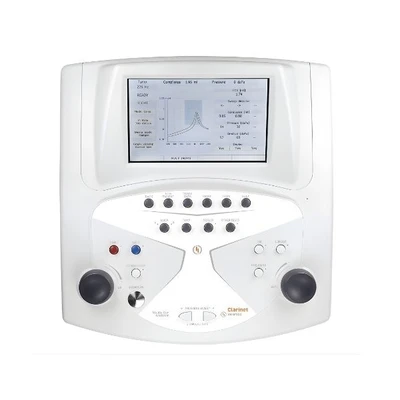

Display : 7″ Color TFT Touchscreen (800×480)
Printer : Optional Built-In Thermal Printer
PC Interface : USB (driverless), NOAH/Maestro compatible
Power Supply : 100–240 V AC medical adapter
Dimensions : 32 × 32 × 15 cm (without printer)
Weight : ~2.0 kg (without printer)

highlights

Includes full middle ear analysis tests beyond basic tympanometry.
Fast auto and manual operation with adjustable parameters.
Smooth data transfer and PC integration (NOAH/Maestro).
Optional integrated printer for immediate hardcopy reports.
Designed and manufactured for clinical use with robust build quality.

in the box

Main Clarinet Clinical Tympanometer Unit (Control Box)
Probe Assembly with Ultra-Light Metal Probe
Assorted Ear Tips (multiple sizes)
Medical-Grade Power Adapter
USB Cable for PC Connection
User Manual
(Optional) Built-In Printer Paper Roll (for printer-equipped models)

Use Cases :

Screening and diagnosing middle ear disorders such as otitis media and effusion.
Pediatric ear assessments, thanks to low-frequency tympanometry and reflex testing.
Eustachian tube function evaluation in both intact and perforated eardrums.
Acoustic reflex analysis for auditory pathway evaluation.
ENT, audiology clinics, and hospital diagnostic departments for comprehensive middle ear profiling.

Key Features :

Automatic & Manual Tympanometry — Flexible testing modes for various clinical needs.
Acoustic Reflex Testing — Ipsilateral and contralateral stimulation with threshold, fixed intensity, growing intensity, reflex decay, and latency tests.
Eustachian Tube Function (ETF) Tests — Supports Williams and Toynbee methods for intact and perforated tympanic membranes.
Multi-Component Tympanometry (Plus) — Includes admittance, susceptance, and conductance measurements.
High-Speed “Endless Flow” Pump — Up to 600 daPa/sec sweep speed for precise and rapid pressure changes.
High-Resolution Touchscreen Display — Large color TFT graphical interface for clear results.
NOAH & Maestro Integration — Easy USB transfer to audiology databases; live monitoring on PC.
Optional Built-In Thermal Printer — On-site printouts of results.

Warranty

1 Year

Seller

AA MEDIE QUIPLearn More

Product Description

The Inventis Clarinet Clinical Tympanometer is a professional clinical middle ear analyser that performs comprehensive diagnostics of the middle ear system. It supports both automatic and manual tympanometry as well as advanced tests such as acoustic reflex threshold, reflex decay, reflex latency, e...
