J Morita Root Zx Mini Apex Locator (RCM - 7)

Shipping time and rates

Shipping about 5-7 days

J Morita Root Zx Mini Apex Locator (RCM - 7)

New
0.0|0 Ratings

Quantity :

1

Specifications

  • Product Name : Root ZX mini
  • Model / Type : RCM-7
  • Device Type : Electronic Apex Locator
  • Intended Use : Detection of the apex of the root canal
  • Operating Principle : Impedance measurement at two frequencies
  • Power Supply DC : 4.5 V
  • Battery : 3 × 1.5 V AAA/LR03 alkaline batteries
  • Power Consumption / Output : 0.2 W
  • Dimensions : W 60 × D 103 × H 57 mm
  • Weight : Approx. 110 g
  • Display : LCD
  • Applied Parts : File holder and contrary electrode
  • Protection : Internal powered ME equipment / Type BF applied part
  • Automatic Shut-Off : Approx. 10 minutes of non-use
  • Operating Temperature : +10°C to +35°C
  • Operating Humidity : 30%–80% RH, non-condensing
  • Atmospheric Pressure : 70–106 kPa

highlights

  • Compact & lightweight: approx. 110 g
  • Small footprint: 60 × 103 × 57 mm
  • Two-frequency measurement technology
  • Easy-to-read LCD display
  • 3 programmable Flash Bar memories
  • Memory Bar for marking points inside the canal
  • Adjustable sound indication
  • Battery powered – no mains connection required
  • Designed specifically for endodontic apex location.

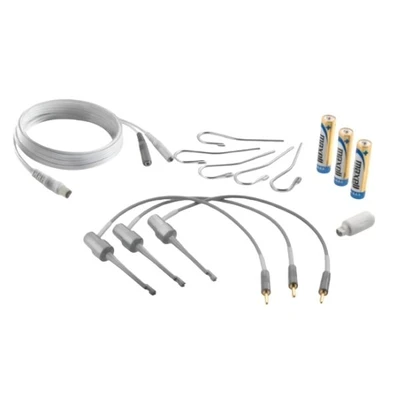

in the box

  • Root ZX mini main unit – 1
  • Probe Cord – 1
  • File Holders – 3
  • Contrary Electrodes – 5
  • Tester – 1
  • Long File Holder – 1
  • AAA/LR03 Alkaline Batteries – 3

Use Cases :

  • Determine the approximate position of the root apex.
  • Assist in determining the working length of a root canal.
  • Monitor the position of an endodontic file inside the canal.
  • Provide a reference during canal cleaning, enlargement and preparation.
  • Mark specific points inside the canal using the Memory Bar, such as the beginning of a curve or a point at which the file size may be changed.

Key Features :

  • Accurate root canal/apex detection
  • Two-frequency impedance measurement for detecting file position.
  • Compact and lightweight design – approx. 110 g.

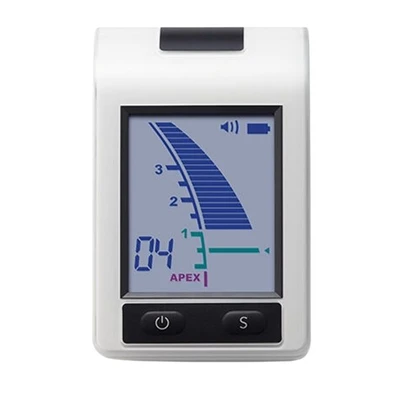

  • LCD display with canal-length indicator bars.
  • Flash Bar provides a visual reference for the estimated working length.
  • 3 memory settings for storing different Flash Bar positions.
  • Memory Bar can mark an important point inside the canal during treatment.
  • Adjustable beeper volume – Loud, Soft or Off.
  • Automatic power-off after approximately 10 minutes of non-use.
  • Operates using 3 AAA alkaline batteries.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Root ZX mini is a compact electronic apex locator designed to accurately detect the position of a file within the root canal and help determine the working length during endodontic treatment. It uses impedance measurement at two frequencies to detect the file position inside the root canal. Its ...
