Waldent Woodpecker RTA MiniMotor Brushless Endomotor
New0.0|0 Ratings
Quantity :
1
Specifications
- Product Name : Waldent RTA MiniMotor Brushless Endomotor By Woodpecker
- Motor Type : Brushless Motor
- Speed Range : 100 r/min – 1500 r/min
- Torque Range : 0.4 N·cm – 4.2 N·cm
- Speed Ratio : 6:1
- Adjustable Reciprocating Angle : 10° intervals
- Forward & Reverse Reciprocating Angle : 20° – 400°
- Head Height : 9.7 mm
- Head Diameter : 8 mm
- Neck Diameter : 6 mm
- Contra-Angle Rotation : 360° rotatable
- Working Modes : Forward, Reverse, Reciprocating, ATR
- Control : Wireless
- Design : Lightweight, cordless and well-balanced
- Apex Locator Compatibility : Yes
- Motor Service Life : Up to 10 times longer than traditional brush motors
- Rotation : Smooth and low noise
- Operation : Low-speed, high-torque operation
- Warranty : 2 years for Main Motor and 1 year for Contra-Angle, as applicable under the manufacturer/importer warranty
highlights
- • Brushless Technology: High-performance motor with strong power and stable torque
- • Long Service Life: Motor service life stated to be 10 times longer than traditional brush motors
- • High Torque: 0.4–4.2 N·cm torque range
- • Adjustable Speed: 100–1500 r/min speed range
- • 6:1 Contra-Angle: Compact design providing a broader operating field
- • Cordless Operation: Wireless handpiece allows unrestricted movement
- • Multiple Modes: Forward, Reverse, Reciprocating and ATR modes
- • Adjustable Reciprocation: 20°–400° forward/reverse angle range with 10° adjustment intervals
- • Compact Head: 9.7 mm head height and 8 mm head diameter
- • Apex Locator Compatibility: Can be used with an apex locator
- • Ergonomic Design: Lightweight and well-balanced for easier clinical operation
in the box
- • 1 × Base
- • 1 × Motor Handpiece
- • 1 × Contra-Angle Head
- • 1 × Spray Nozzle
- • 1 × Adapter
- • 1 × Disposable Insulation Sleeves
- • 2 × Protective Silicone Covers
- • 1 × Cable
- • 1 × Instruction Manual
Use Cases :
- Root canal preparation
- Endodontic treatment procedures
- Rotary and reciprocating file preparation
- Preparation of narrow and curved root canals
- Low-speed, high-torque dental preparation
- Procedures requiring precise reciprocating angle control
- Endodontic procedures where cordless operation provides better accessibility
- Can be used with an external apex locator for enhanced treatment accuracy
Key Features :
- High-performance brushless motor for strong power and high torque
- Motor service life up to 10 times longer than traditional brush motors
- Low wear and low heat generation
- Smooth and quiet rotation
- Speed range from 100 r/min to 1500 r/min
- Torque range from 0.4 N·cm to 4.2 N·cm
- Adjustable reciprocating angle in 10° intervals
- Forward and reverse reciprocating angle adjustment from 20° to 400°
- Compact 6:1 mini contra-angle
- 360° rotatable contra-angle
- Lightweight and well-balanced cordless design
- Wireless operation without a tail cord
- Four working modes: Forward, Reverse, Reciprocating and ATR
- Compatible with an apex locator
- Accurate angle control helps reduce the risk of instrument separation
- Suitable for stable cutting even in narrow or curved root canal areas
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description

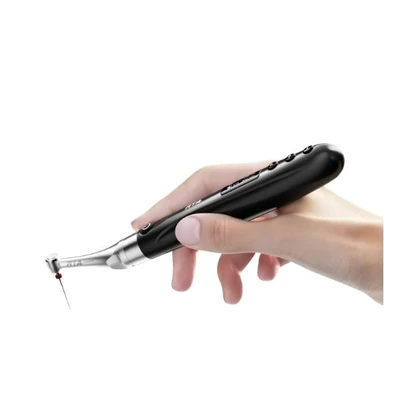

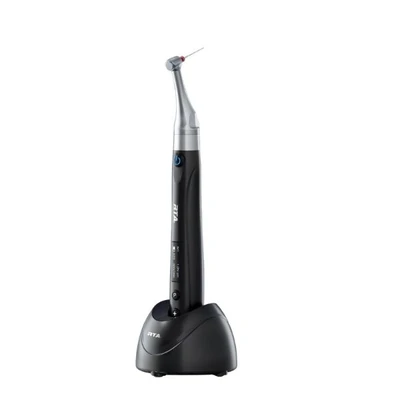

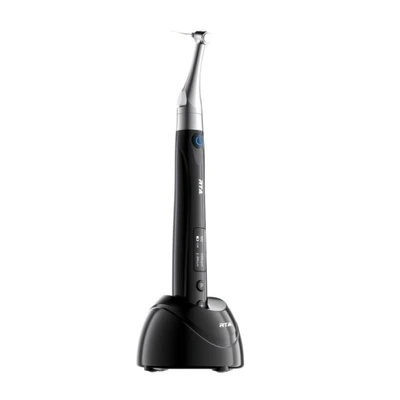

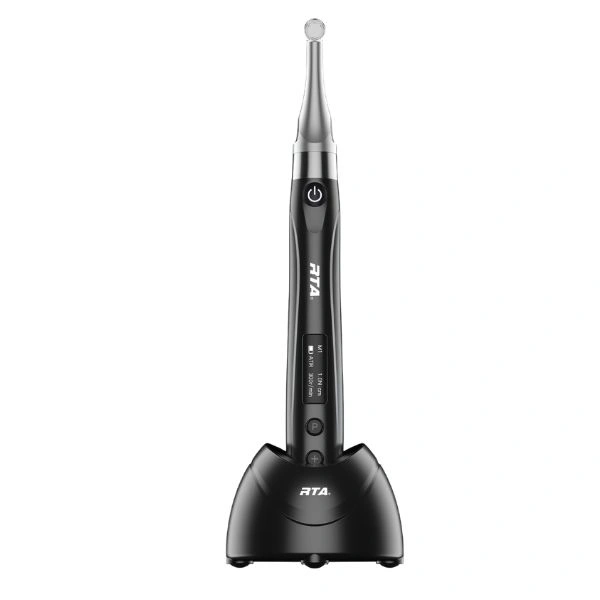

Waldent RTA MiniMotor Brushless Endomotor by Woodpecker is an efficient cordless endodontic motor designed for precise and efficient dental preparation. It features a high-performance brushless motor that delivers strong power, high torque and fast response for stable and accurate operation.
The br...
