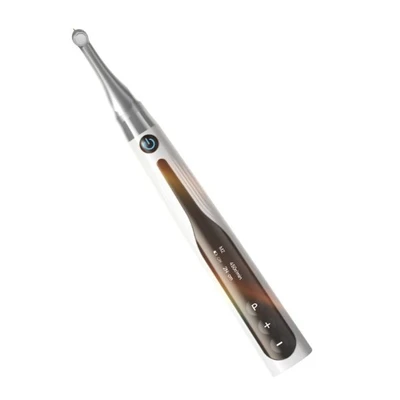

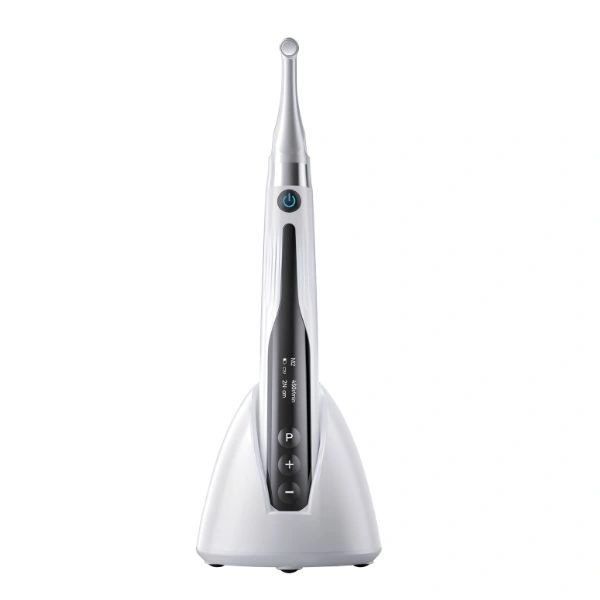

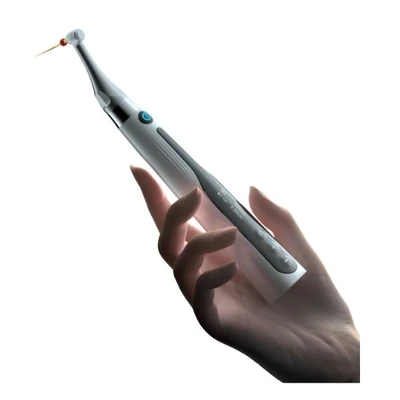

Woodpecker RTA Endo Space Brushless Endomotor With In-Built Apex Locator
New0.0|0 Ratings
Quantity :
1
Specifications
- Battery : 3.6V / 2000mAh Lithium
- Adapter Input : 100V–240V, 50Hz/60Hz, 0.4A–0.2A
- Adapter Output : DC 5V / 1A
- Torque Range : 0.4–5.0 N·cm (4–50 mNm)
- Speed Range : 100–1800 rpm
- Motor Rotation : 360° forward, clockwise
- Counterclockwise Mode : For calcium hydroxide injection
- ATR Mode : Adaptive Torque Reverse
- Apical Reference : Flash bar indicator
- Sterilization : 134°C (2.0–2.3 bar)
- ISO Standard : Ø 2.334–2.350 mm
- Cable Type : Unshielded parallel line
- Adapter Cable Length : 1.8 m
- Measuring Wire Length : 1.6 m
- File Clip Cable Length : 0.2 m
- Operating Modes : CW, CCW, REC, ATR & EAL
- Gear Ratio : 6:1
- Operating Temperature : +5°C to +40°C
- Relative Humidity : 30%–75%
- Atmospheric Pressure : 70–106 kPa
highlights
- Brushless Motor Low noise, stable torque and longer motor life
- Built-in Apex Locator Allows working-length monitoring without a separate apex locator
- Cordless Operation Better freedom of movement during treatment
- 100–1800 rpm Suitable for different rotary endodontic procedures
- 0.4–5.0 N·cm Torque Allows adjustment according to file/system requirements
- REC Mode Supports reciprocating file systems
- ATR Mode Automatically responds to excessive file load
- Auto-Reverse/Stop Helps reduce the possibility of file breakage
- Super-Mini Contra Angle Improves visibility and access
- Multiple Modes Supports different endodontic techniques
in the box
- 1 × Base
- 1 × Motor handpiece
- 1 × Contra-angle
- 1 × Spray nozzle
- 1 × Measuring wire
- 4 × File clips
- 2 × Lip hooks
- 1 × Disposable insulation sleeves
- 2 × Touch probes
- 2 × Protective silicone covers
- 2 × O-rings
- 1 × Power adapter
- 1 × Instruction manual
- 1 × Qualified certificate
- 1 × Apex locator troubleshooting card
- 1 × Packing list
Use Cases :
- Rotary root canal preparation using compatible rotary NiTi files.
- Reciprocating root canal preparation with compatible reciprocating files.
- Working-length determination using the integrated electronic apex locator.
- Canal preparation with torque control, helping manage file loading.
- Calcium hydroxide/medicament delivery using the counterclockwise mode.
- Adaptive torque reverse procedures where the motor responds to increased file load.
- General endodontic procedures where cordless operation and integrated apex measurement are beneficial.
Key Features :
- Brushless motor technology for low-noise and stable operation.
- Built-in electronic apex locator (EAL) for real-time canal-length monitoring.
- Cordless design for convenient clinical handling.
- Adjustable speed: 100–1800 rpm.
- Adjustable torque: 0.4–5.0 N·cm.
- Adjustable reciprocating angle: 30°–360°.
- CW mode for rotary file operation.
- CCW mode for counterclockwise rotation, including calcium-hydroxide medication delivery.
- REC mode for reciprocating file systems.
- ATR mode – Adaptive Torque Reverse.
- Auto-stop and auto-reverse functions when the preset torque limit is reached.
- Dynamic torque control with real-time feedback.
- Super-mini contra-angle head for improved visibility and access.
- LED display for monitoring operating parameters.
- Multiple memory/program settings for different endodontic procedures.
- Overload protection and auto-calibration.
- Contra-angle designed for sterilization at 134°C under the stated conditions.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Woodpecker RTA Endo Space is a cordless endodontic motor designed for efficient and controlled root canal preparation. It combines a brushless endomotor with an integrated electronic apex locator, allowing clinicians to perform canal preparation and monitor working length using one device.
Th...
