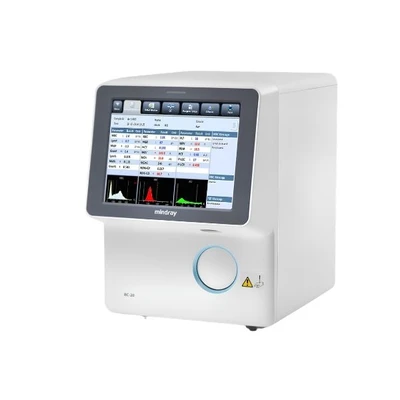

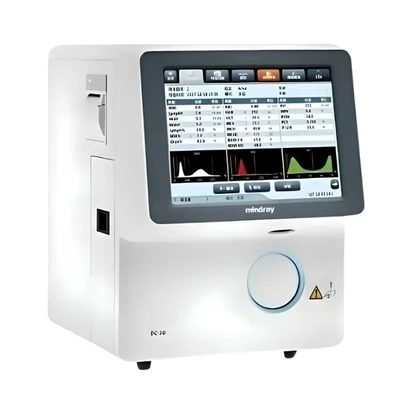

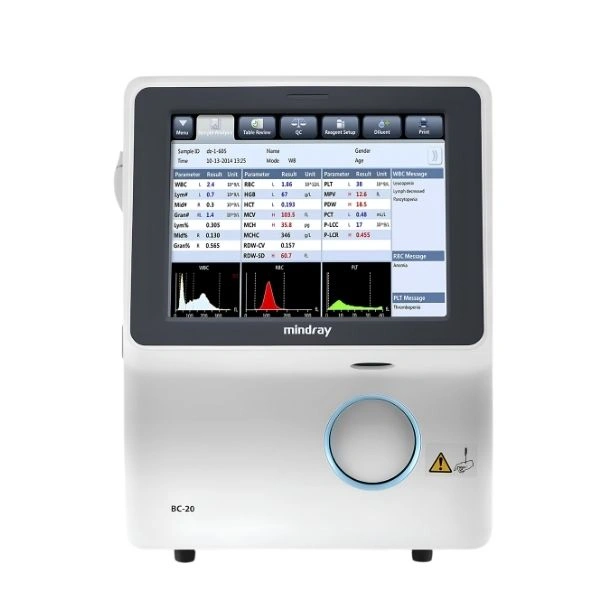

Mindray BC20 3-Part Fully Automatic Hematology Analyzer
New0.0|0 Ratings
₹1,82,500₹215,00115% off
Quantity :
1
Specifications
- Product Name : Mindray BC-20 Auto Hematology Analyzer
- Analyzer Type : 3-Part Differential Hematology Analyzer
- Test Mode : CBC + 3-DIFF
- Parameters : 20 parameters
- Histograms : 3 histograms — WBC, RBC and PLT
- WBC/RBC/PLT Counting Principle : Impedance method
- Hemoglobin Principle : Cyanide-free reagent method
- Throughput : Up to 40 samples/hour
- Whole Blood Sample Volume : ≤9 µL
- Prediluted Sample Volume : ≤20 µL
- Reagents Required : M-30D Diluent, M-20CFL Lyse, Probe Cleanser
- Display : 10.4-inch TFT touchscreen
- Data Storage : Up to 100,000 results, including numerical and graphical information
- Communication : LAN port with HL7 protocol; bi-directional LIS
- USB Ports : 4
- Printer : Thermal recorder, 50 mm wide paper
- Operating Temperature : 15°C–30°C
- Operating Humidity : 10%–90%
- Air Pressure : 70 kPa–106 kPa
- Power Supply : 100–240 V ±10%
- Power Consumption : ≤180 VA
- Frequency : 50/60 Hz ±1 Hz
- Dimensions : 410 mm (D) × 300 mm (W) × 400 mm (H)
- Weight : ≤20 kg
- Languages : Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia
highlights
- 20 hematology parameters + 3 histograms
- 40 samples/hour throughput
- ≤9 µL whole-blood sample volume
- ≤20 µL prediluted sample volume
- 100,000-result data storage
- 10.4-inch TFT touchscreen
- Cyanide-free hemoglobin testing reagent
- Impedance technology for WBC, RBC and PLT counting
- HL7/LIS connectivity
- Compact benchtop design
- Original QC, calibrators and reagents available from Mindray.
in the box
- Mindray BC‑20 main unit
- Power cable / adapter
- Reagent starter kit (diluent, lyse, probe cleanser)
- User manual / instruction guide
- QC / calibrator solutions
- Sample handling accessories
Use Cases :
- Complete Blood Count (CBC) testing
- 3-part WBC differential analysis
- Routine screening of hematological parameters
- Monitoring patient blood-cell counts
- Small hospitals and clinics
- Diagnostic laboratories and pathology laboratories
- Laboratories requiring compact, automated hematology testing
Parameters :
- WBC : White Blood Cell Count
- Lymph# : Lymphocyte Absolute Count
- Mid# : Mid-Size Cell Absolute Count
- Gran# : Granulocyte Absolute Count
- Lymph% : Lymphocyte Percentage
- Mid% : Mid-Size Cell Percentage
- Gran% : Granulocyte Percentage
- RBC : Red Blood Cell Count
- HGB : Hemoglobin
- HCT : Hematocrit
- MCV : Mean Corpuscular Volume
- MCH : Mean Corpuscular Hemoglobin
- MCHC : Mean Corpuscular Hemoglobin Concentration
- RDW-CV : Red Cell Distribution Width – CV
- RDW-SD : Red Cell Distribution Width – SD
- PLT : Platelet Count
- MPV : Mean Platelet Volume
- PDW : Platelet Distribution Width
- PCT : Plateletcrit
- P-LCR : Platelet Large Cell Ratio
Key Features :
- CBC + 3-DIFF with 20 parameters and 3 histograms.
- Throughput of up to 40 samples/hour.
- 10.4-inch TFT touchscreen for operation.
- Requires only three reagents.
- Open-vial sampling.
- Sample volume as low as 9 µL in whole-blood mode.
- Storage capacity of up to 100,000 results with numerical and graphical information.
- Advanced flag information helps identify potentially abnormal cell results.
- Original Mindray QC, calibrators and reagents.
- LAN connectivity with HL7 protocol and support for bi-directional LIS.
- Four USB ports for peripherals such as printer, barcode reader, Wi-Fi, keyboard and mouse.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Mindray BC-20 is an automated 3-part differential hematology analyzer designed primarily for small laboratories. It performs CBC + 3-DIFF testing, provides 20 hematological parameters with 3 histograms, and can process up to 40 samples per hour. The analyzer features a 10.4-inch TFT touchscreen,...
