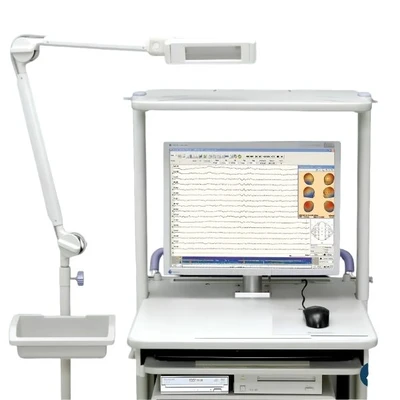

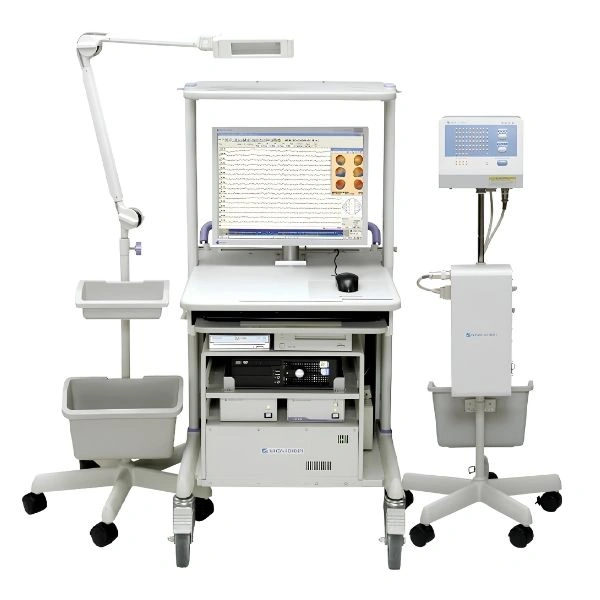

Nihon Kohden Neurofax EEG-1200 EEG Machine

Product Name : Nihon Kohden Neurofax EEG-1200
Product Type : Electroencephalograph (EEG) System
Maximum Recording Channels : Up to 256
Standard Junction Box : 32-channel
Display Resolution : Up to 1920 × 1080 pixels
Display Channels : Up to 64 (up to 250 with multi-channel junction boxes)
A/D Conversion : 24-bit (JE-120A)
Sampling Frequency : Up to 10,000 Hz (configuration dependent)
Input Impedance : Up to 200 MΩ
Internal Noise : Less than 1.5 µVp-p (JE-120A)
CMRR : ≥110 dB (EEG Input)
Input Range : ±3.2 mV or ±12.8 mV (selectable)
Waveform Colors : 16 Colors
Display Modes : Overwrite and Page-by-Page
Waveform Sweep Speed : 0.1 s to 60 s, or 5 min/page
High-Cut Filter : Up to 3000 Hz (configuration dependent)
Low-Cut Filter : Selectable
Video Recording : Synchronized video up to Full HD
Additional Monitoring : SpO₂ and EtCO₂ (supported with compatible junction box)
Software : NeuroWorkbench, EEG Portaview
Clinical Applications : Routine EEG, EMU, ICU EEG, Functional Brain Mapping, Research

Modular and scalable architecture supporting future expansion.
Up to 256 EEG recording channels.
High-resolution synchronized video recording.
Advanced EEG review tools including Voltage Mapping and DSA Trendgraph.
Flexible amplifier options for clinical and research applications.
Integrated software for data review, reporting, consultation, and storage.
Excellent signal quality with high common-mode rejection ratio (CMRR) and low noise.
Supports multiple display modes and customizable recording configurations.

Neurofax EEG-1200 Main Unit
EEG Amplifier/Junction Box (model depending on configuration)
Acquisition Software
NeuroWorkbench Software
EEG Portaview Software
Patient Interface Cables
Power Supply
User Documentation
Accessories as per selected configuration (electrodes, video module, accessories, etc.)

Expandable EEG recording system from 32 channels up to 256 channels.
High-performance amplifier with low internal noise for accurate signal acquisition.
3D Voltage Mapping for visualization of EEG abnormalities.
DSA (Density Spectral Array) Trendgraph for rapid review of long recordings.
Synchronized Full HD video recording with adjustable resolution.
Integrated EEG Portaview software for remote consultation.
NeuroWorkbench software for centralized data management.
Supports SpO₂ and End-Tidal CO₂ (EtCO₂) monitoring through compatible junction boxes.
Simultaneous multi-channel recording with high sampling frequencies for clinical and research use.
Expandable for Epilepsy Monitoring Unit (EMU) and functional brain mapping applications.
