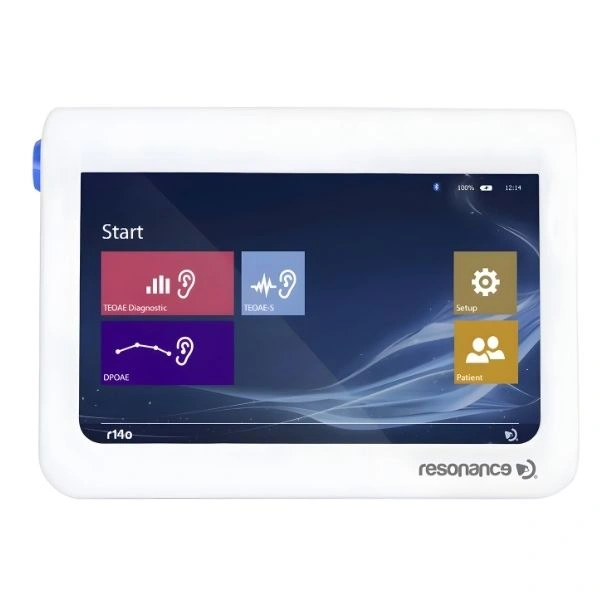

Resonance r14o OAE Screener

New

0.0|0 Ratings

Quantity :

Specifications

Product Type : Portable OAE Hearing Screener
Test Types : TEOAE Screening / Diagnostic, DPOAE Diagnostic
Display : 7” TFT Resistive Touchscreen
Display Resolution : 800 × 480 pixels, 133 ppi, 262K colors
Data Transfer : Bluetooth 2.1
Communication Ports : 1 × USB Host, 1 × Mini USB Slave
Software : Resonance MDS Management Data Suite
Dimensions : 180 × 135 × 23–41 mm
Weight : 450–570 g (depending on configuration/source)
Power Source : Rechargeable Battery
Auto Power Saving : Yes
TEOAE Frequency Bands : 1, 1.5, 2, 3, 4 kHz
TEOAE Stimulus Level : 70–90 dB pe SPL
TEOAE Stimulus Level : 70–90 dB pe SPL
TEOAE Stimulus Rate : 66 Hz
TEOAE Test Time : 30–75 sec
TEOAE Analysis Window : 3–15 ms
TEOAE Protocols : 3 User Definable
DPOAE F2 Frequencies : 1.5–12 kHz
DPOAE Frequency Ratio : 1.22
DPOAE Frequency Test Time : 2–16 sec per frequency
DPOAE Protocols : 2 Preset + 3 User Definable
Reporting : Printable Reports / Templates
Intended Users : Audiologists / Hearing Professionals / Technicians

highlights

Large touchscreen enables quick and precise testing
Wireless connectivity for easy report management
Simple menu navigation requiring only a few taps
Reliable and easy-to-interpret OAE results
Customizable screening protocols
Compact and lightweight for mobile screening use
Auto sleep / auto shut-off feature to preserve battery
Optional Wi-Fi thermal printer support (in some packages)

in the box

Resonance R14O main unit
OAE probe
Power supply / charger
USB cable
Resonance MDS software
User handbook / quick guide
Carrying case (package dependent)
Optional Wi-Fi thermal printer
Optional accessories / ear tips / probe consumables

Use Cases :

Universal Newborn Hearing Screening (UNHS)
Pediatric hearing screening
Adult hearing assessments
Audiology clinics and ENT centers
Diagnostic cochlear function evaluation
Follow-up hearing assessments
Hospital maternity wards and neonatal units

Key Features :

7-inch TFT resistive touchscreen display with intuitive workflow
Portable and rechargeable handheld/desktop design
Supports TEOAE screening & diagnostic
Supports DPOAE diagnostic (model dependent)
Fast testing with results in seconds to minutes
Bluetooth 2.1 connectivity for wireless data transfer
USB Host and Mini USB ports for data transfer and software upgrades
Includes Resonance MDS (Management Data Suite) software
Dedicated report templates for result printing and documentation
Upgradeable software with free future updates
Multiple user-definable protocols for screening and diagnostics
Designed for audiologists, hearing healthcare professionals, and trained technicians

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Resonance R14O is a portable, touchscreen OAE hearing screener designed for newborn hearing screening, pediatric screening, and adult cochlear function assessment. It provides TEOAE screening and diagnostic testing, along with DPOAE diagnostic capabilities depending on the selected model configu...
