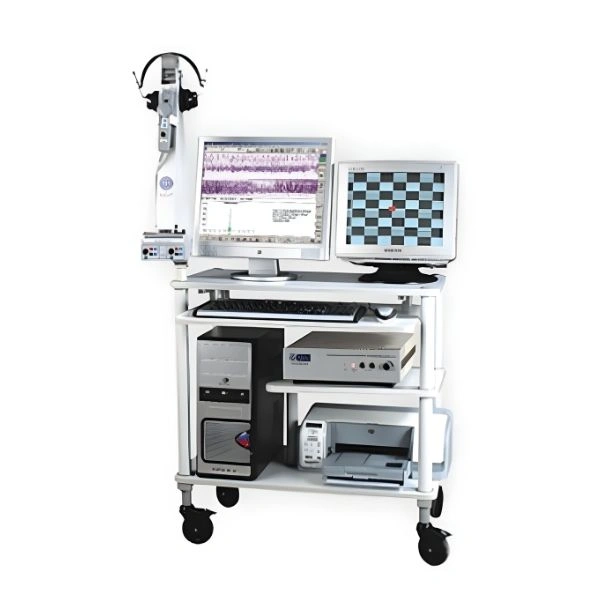

RMS Aleron-201 2/4 Channel EMG Machine

New

Specifications

Model Name : RMS Aleron-201 / 401 (2/4 Channel EMG Machine)
Brand : RMS
Acquisition Channels : 2 / 4 (Selectable)
Display : Continuous / Rasterized waveform display
MUP Selection : Manual / Automatic
Standard Tests Supported : EMG, NCV, F Wave, H Reflex, Evoked Potentials
Usage/Application : Hospital, Clinic, Research
Noise (Typical) : ~0.4 µV peak-to-peak
Amplitude/Frequency Range : 1 Hz – 5 kHz
Sensitivity : 0.05 µV/div – 20 mV/div
Min Lower Filter : 0.1 Hz
Max Higher Filter : 50 Hz
Power Supply : AC 100 – 240 V (typical)
Interface : USB / PC connectivity supported (software-based control)

highlights

Flexible Channel Options: Choice of 2 or 4 channels for basic to advanced clinical requirements.
Digital Signal Quality: High-resolution digital acquisition and processing for precise EMG and NCV analysis.
Customizable Test Protocols: Software allows tailored electrical parameters, scoring options, and customizable reports.
Designed for Clinical Workflow: Ideal for routine outpatient diagnostics through to comprehensive neurophysiology labs.

in the box

RMS Aleron-201/401 EMG Unit
Power Adapter & Cables
Software Installation Media / USB Drive
Electrodes & Leads (standard EMG & NCV kit)
User Manual & Quick Start Guide
Warranty Card & Technical Support Information

Use Cases :

Neurology Departments: Diagnostic evaluation in cases of suspected neuropathies, myopathies, or radiculopathies.
Rehabilitation Clinics: Monitoring progress in nerve or muscle recovery.
Medical Research: Electrophysiological studies in clinical research settings.
Hospitals & Diagnostic Centers: Routine nerve conduction and muscle diagnostic workflows.

Key Features :

2/4 Channel Acquisition: Simultaneous multi-channel EMG recording for detailed neuromuscular evaluation.
User-Selectable Scoring Options: Adjustable scoring facilitates tailored analysis for different clinical protocols.
Continuous / Rasterized Display: Real-time waveform display supports effective monitoring of muscle signals.
Manual / Automatic MUP Selection: Offers both automatic and expert manual selection of motor unit potentials for flexible data analysis.
Nerve Conduction Studies (NCV): Useful for assessing peripheral nerve function and detecting neuropathies.
Evoked Potentials (EP): Supports measurement of neural responses to sensory stimulation as part of neurological diagnostics.
User-Configurable Summary Report: Customizable reporting options for patient records.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RMS Aleron-201 2/4 Channel EMG Machine is a digital electromyograph (EMG) system designed to record and analyze electrical activity generated by skeletal muscles and peripheral nerves. It supports 2-channel and 4-channel acquisition, enabling comprehensive neuromuscular assessment including elec...
