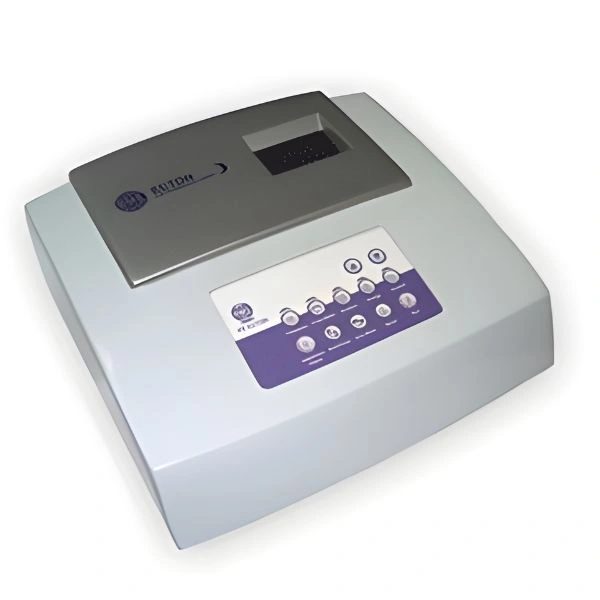

RMS Ecton ElectroConvulsive Therapy Machine (ECT)

New

0.0|0 Ratings

Quantity :

Specifications

Waveform Type : Bidirectional square wave
Frequency : 10 – 140 Hz (selectable)
Pulse Width : 0.10 – 2.0 ms (selectable)
Duration : 0.10 – 5 seconds (selectable)
Current : 500 – 800 mA (step adjustable)
Energy Delivery : Auto-adjusted based on head impedance
Current : 650 mA (fixed)
Frequency : 50 Hz (fixed)
Duration : Fixed
Energy : Based on impedance
Channels : ECG / EEG / EMG (up to 2–3 channels)
A/D Resolution : 12-bit
CMRR : >90 dB
Sampling Rate : 256 Hz
Interface : RS-232
Power Supply : 220V, 50 Hz
Microprocessor controlled system
Data storage & patient session recording (PC version)

highlights

Precision-controlled stimulation parameters (frequency, duration, current)
Safety-focused design with impedance monitoring
Flexible therapy modes (brief pulse & sine wave)
Upgradeable system with PC-based monitoring (ECG/EEG/EMG)
Cost-effective Indian-manufactured solution for psychiatric care

in the box

Headband
Conductive gel/jelly
Earthing cord
Dust cover
Instruction manual
Remote service support provision

Use Cases :

Psychiatry departments in hospitals
Mental health institutions
Clinics treating severe depression, bipolar disorder, schizophrenia
Cases where pharmacological treatments are ineffective

Key Features :

Dual operating modes: Brief Pulse & Sine Wave
LCD display for parameter monitoring
Impedance check system for patient safety
Portable & lightweight design
Feather-touch keypad for easy operation
Optional ECG & EMG monitoring channels
Optional PC connectivity for data management
Microcomputer-controlled automatic energy calculation

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RMS Ecton is a psychiatric electroconvulsive therapy (ECT) device designed to deliver controlled electrical stimuli to induce therapeutic seizures under medical supervision. It is used primarily for treating severe psychiatric disorders such as major depression and bipolar disorder when other tr...
