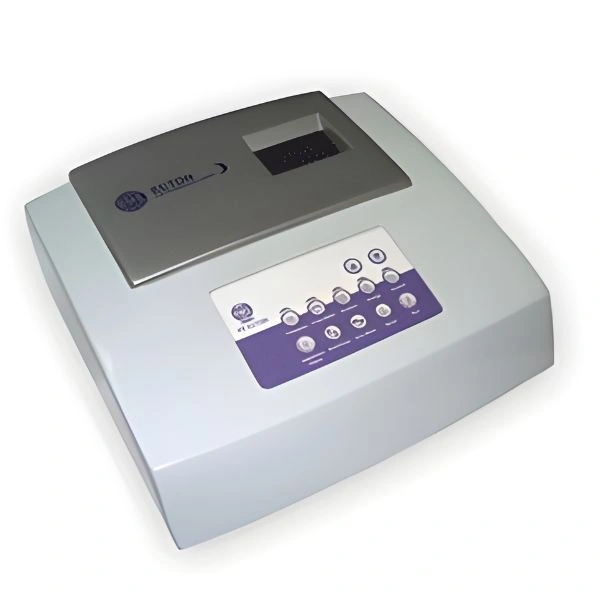

RMS PC Ecton Electroconvulsive Therapy Machine

New

0.0|0 Ratings

Quantity :

Specifications

Frequency : 10 – 140 Hz (selectable in steps)
Pulse Width : 0.10 – 2.0 ms
Current : 500 – 800 mA (step adjustable)
Energy : Auto-adjusted based on head impedance
Current : 650 mA (fixed)
Frequency : 50 Hz (fixed)
Duration : 0.5 ms (fixed)
Energy : Based on impedance
Channels : 2 channels (EEG & ECG)
CMRR : >90 dB
A/D Resolution : 12-bit (unipolar)
Sampling Rate : 256 Hz
Filters : Multiple selectable low-pass & high-pass ranges
Sensitivity : Wide selectable range (1–1500 µV)
Interface : RS-232
Display : Alphanumeric LCD
Modes : Brief Pulse & Sine Wave
Safety : Impedance monitoring system
Data : Patient database with session recording & reporting
Power Supply : 220V AC, 50 Hz

highlights

Integrated PC-based monitoring system for advanced diagnostics
Comprehensive patient data management (view/edit/search sessions)
Multi-parameter monitoring (EEG, ECG, EMG)
Precision-controlled stimulation parameters
Enhanced clinical analysis tools (HRV, waveform analysis, filters)
Reliable & cost-effective Indian-manufactured solution

in the box

Headband
Conductive jelly
Earthing cord
Dust cover
Instruction manual
Electrode

Use Cases :

Psychiatry departments in hospitals
Mental health institutions
Cases requiring advanced monitoring & documentation of ECT sessions
Treatment of : Severe depression, Bipolar disorder, Schizophrenia

Key Features :

Dual operating modes: Brief Pulse & Sine Wave
Alphanumeric LCD display with feather-touch keypad
Impedance check system for patient safety
PC connectivity for data storage & analysis
EEG, ECG & EMG monitoring capability
Session-wise patient record storage & database search
Automatic convulsion calculation & report generation
Waveform viewing (raster & continuous) with filters and sensitivity control
Heart rate variability & measurement tools

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The RMS PC Ecton is an advanced electroconvulsive therapy (ECT) system with PC-based monitoring and data management, designed for psychiatric treatment of severe mental disorders. It delivers controlled electrical stimuli to induce therapeutic seizures under medical supervision, while enabling real-...
