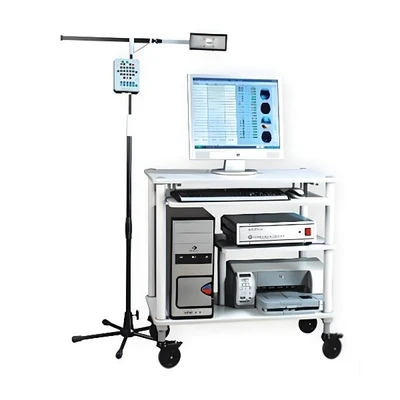

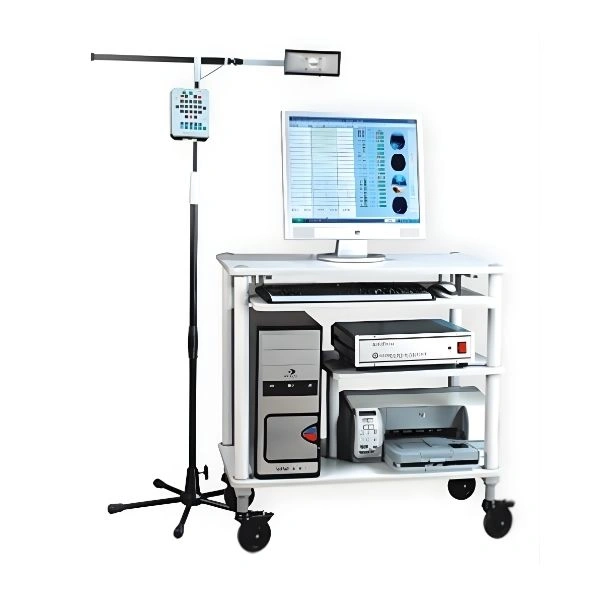

Name: RMS Super Spec 32-Channel EEG Machine
Brand: RMS
SKU: 0131cb1c-7111-44b5-969d-a58f5f9f7188
Price: 180000 INR
Availability: InStock
Rating: 4.3 (44 reviews)

Specifications

Product Name : RMS Super Spec 32 Channel EEG Machine
Brand : RMS
Model : Super Spec
Channels : 32 simultaneous acquisition
Type : Digital EEG
Frequency Band : Typically up to ~0–150 Hz (varies by config)
Sampling Rate : ~250 Hz (typical)
Amplifier Interface : USB connection
Control Impedance : Online AC impedance check
Photic Stimulator : Yes (software driven)
Software Features : Brain mapping, paging, protocol customization
Video EEG Support : Optional synchronous EEG video
PC Compatibility : Desktop PC (Windows)
Warranty : ~1 year from manufacturer

highlights

Highly accurate 32-channel EEG acquisition
Robust software with customizable protocols
Real-time signal quality indicators
Brain mapping with color coding
Optional video integration
PC-based system for data processing and reporting

in the box

EEG acquisition hardware
USB interface cable
Software for acquisition & analysis
User manual
Necessary electrodes and leads (may vary by seller)
Warranty card (typically 1 year)

Use Cases :

Clinical Neurology Departments – for routine diagnostic EEG tests.
Epilepsy Monitoring – combined EEG and video to observe seizure activity.
Sleep Disorder Clinics – brainwave recording during sleep studies.
Neuroscience Research – high-resolution EEG for studies in cognition, brain mapping, and neurophysiology.
Diagnostic Centres & Hospitals – brain activity evaluation for various neurological conditions.

Clinical Benfits

More Reliable Recordings: Numeric impedance values for individual electrodes help technicians check electrode contact before starting the recording.
Fuller Diagnostic Picture: Frequency, amplitude, and Tri Map views, together with CSA, DSA, and FFT analysis, provide multiple ways to review the same EEG study.
Better Event Correlation: Event marking and optional synchronised video make it easier to compare clinical events, such as seizures, with the EEG trace.
Flexible Review: Unlimited montage and filter reformatting, along with split-screen comparison of different time segments or settings, support detailed EEG review.
Recording Wherever the Patient Is: The battery-powered Traveller version allows EEG recording in the ICU, OT, at the bedside, or at the patient's home.
Smooth Sharing of Studies: EDF, PDF, and MATLAB export options, along with e-mail, CD/DVD, and network storage support, make it easier to share studies for review and maintain records.

Why Choose the RMS Super Spec 32 Channel EEG Machine?

Complete 32-input recording: Combines EEG, ECG, bipolar, and polygraphic channels in one system for routine EEG as well as extended polygraphic studies.
Analysis tools included as standard: Brain mapping, spectral arrays, FFT, and split-screen comparison provide multiple ways to review EEG data without relying on additional analysis modules.
Flexible deployment: The cart-based Super Spec EEG 32 is suitable for dedicated EEG rooms, while the portable Traveller version can be used in ICU, OT, bedside, and home settings.
Upgrade path to Video EEG: Start with standard EEG recording and add synchronised video later as your service requirements expand.
Cleaner recordings: The LED photic stimulator and online impedance check help reduce interference and identify electrode-related recording issues.
Remote service support: Online technical support is available from the RMS head office, with an internet connection provided by the customer.
CE marked: Manufactured to recognised European conformity requirements.

Key Features of the RMS Super Spec 32 Channel EEG Machine

Up to 32 Channels of Data Acquisition: Supports 24 EEG channels, 5 bipolar channels, and 3 polygraphic (DC/external transducer) inputs.
Simultaneous Acquisition and Analysis: Allows clinicians to review and analyse the EEG recording while data is still being acquired.
Online True AC Impedance Check: Displays numeric impedance values for all electrodes, helping technicians check electrode contact before starting the recording.
LED-Based Photic Stimulator: Designed to reduce acoustic and electrical interference compared with conventional flash units.
User-Programmable Protocols: Allows users to create acquisition and photic stimulation sequences for routine or specialised studies.
Unlimited Online/Offline Montage & Filter Reformatting: Recordings can be reviewed using different montage and filter settings whenever required.
Advanced Brain Mapping: Supports multiple references and colour coding according to international standards, along with frequency maps, amplitude maps, and Tri Map views covering left, right, and top views.
CSA, DSA, and FFT Analysis: Includes Compressed Spectral Array, Density Spectral Array, and Fast Fourier Transform analysis for reviewing areas of activity and over-activity.
Event Marking, Auto Paging, and Screen Freeze: Allows users to mark events, move through recordings quickly, and freeze the display for closer review while data continues recording to disk.
Flexible Reporting and Export: Supports export to EDF, PDF, MS Word, MS Excel, and MATLAB, with sharing through e-mail, auto-run CD/DVD, or network storage.
Optional Synchronised Video EEG: MPEG-4 video can be recorded and synchronised precisely with patient EEG data.
