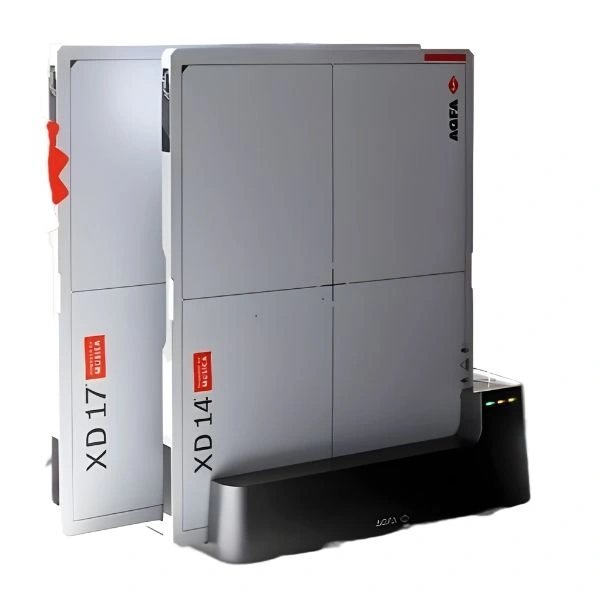

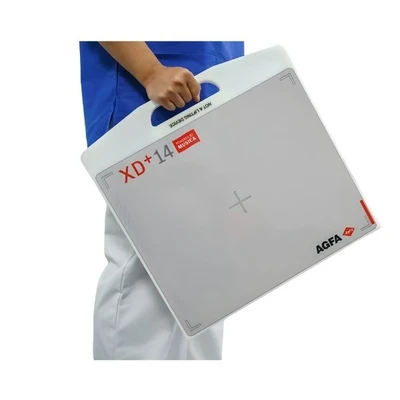

Agfa XD-14 Retrofit Detector DR System

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Agfa XD-14 Retrofit Detector DR System
Detector Size : 36 × 43 cm (14" × 17")
Active Pixel Matrix : 2560 × 3048 pixels
Pixel Pitch : 140 μm
Scintillator : Cesium Iodide (CsI)
Image Sensor : TFT: a-Si (Amorphous Silicon)
Grayscale : 16-bit
Spatial Resolution : Min. 3.5 lp/mm
Field of View : 36 × 43 cm
Wireless Communication : Yes
Wired Communication : Ethernet / PoE
AED : Full Field Automatic Exposure Detection
Battery Operating Time : Up to 8 hours (standby)
Battery Weight : 200 g
IP Rating : IP67
Operating Temperature : 0°C to 40°C
Weight Approx. : 2.95 kg
Application : General Radiography / Mobile Imaging / Retrofit
Image Processing : MUSICA™
Optional : Advanced Application Digital Tomosynthesis

highlights

Easy and versatile way to upgrade to Direct Digital radiography
No generator cable needed due to Full Field AED
Up to 8 hours battery autonomy
Proven Agfa image quality with MUSICA™ software
Supreme durability and rugged construction
Convenient charging options with charging stand/cradle
Enhanced workflow efficiency and faster image transfer
Detector can be shared across compatible systems

in the box

Agfa XD-14 wireless DR detector
Rechargeable battery / dual battery option
DR detector battery charger
Charging stand / cradle
Power adapter with USB Type-C cable
Wireless access point / wireless power transmitter
DR detector cable
System Control Unit / Lite (depending on configuration)
User manual and documentation
Label set for detector/workstation identification
Optional anti-scatter grid accessories

Use Cases :

General radiography (chest, abdomen, extremities)
Mobile X-ray / bedside imaging
ICU / ER / trauma imaging
Orthopedic and trauma imaging
Retrofit upgrade for analog and CR X-ray rooms
Portable/mobile healthcare imaging environments
Digital tomosynthesis on compatible Agfa DR systems

Key Features :

14" × 17" cassette-size digital wireless detector
Full Field Automatic Exposure Detection (AED)—no electrical integration required
Cesium Iodide (CsI) scintillator for high DQE and low-dose imaging
Amorphous Silicon (a-Si) TFT image sensor
Compatible with MUSICA™ image processing software
High DQE and optimized pixel size for excellent image quality
Lightweight ergonomic design
Fast and stable wireless communication
IP67 ingress protection against dust and water
Long-lasting dual-battery support
Temperature-stable operation
Supports use in both fixed and mobile X-ray systems
Optional digital tomosynthesis support on compatible Agfa DR systems

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Agfa XD-14 Retrofit Detector DR System is a lightweight, cassette-size wireless digital radiography detector designed to convert conventional or mobile X-ray systems into high-performance DR systems. It features Full Field Automatic Exposure Detection (AED), robust wireless communication, and co...
