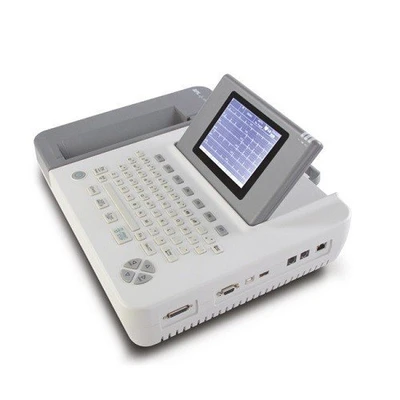

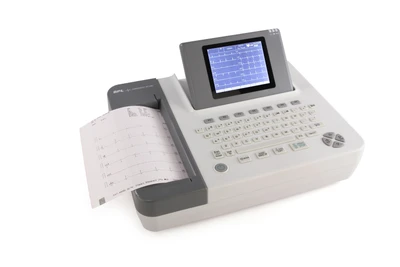

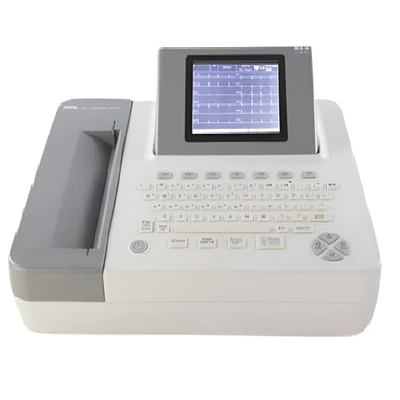

BPL Cardiart 9108 12‑Channel Resting ECG Machine

New

4.5

12456 Ratings

₹1,03,000₹120,00014% off

Specifications

Display - 5.7 inch single color LCD Display
Weight - Approx.5.0kg (11.0 lbs)(Excluding recorder paper and battery)
Dimension - 420mmx330mm x105mm
Communication - Interface Ethernet, RS232, USB
Power Supply - 100V-240VAC, 50Hz/60Hz
Battery - Built-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh
Battery Life - When the battery is fully charged, Cardiart 9108 can work normally about 4 hours, and it can continually print about 1.5 hours in the manual mode or print about 300 ECG reports of 3×4+1R in the auto mode.
Transportation and Storage - Temperature: 20ºC~ +55ºC
Leads - 12 standard leads
Acquisition Mode - simultaneously 12 leads
A/D - 24 bits
Resolution - 2.52uV/LSB
Time Constant - ≥3.2s

in the box

BPL Cardiart 9108 ECG Machine
Patient Cable (1 no.)
Chest Electrodes (6 nos.)
Limb Electrodes (4 nos.)
Power Cord (1 no.)
Cardi-Jelly Bottle (1 no.)
ECG Paper Roll (1 no.)
User Manual (1 no.)

Key Features :

Twelve Channel ECG Recording - Simultaneous 12 channel ECG recording with 12 lead simultaneous acquisition.
High Resolution Foldable Display - 5.7 inch high resolution foldable display enables the easy viewing of patient demographics and real time ECG data option.
Ease of Operation - The user-friendly design of the machine ensures easy operation.
QWERTY Alphanumeric Keyboard - Ensures the freedom of easy use.
Easy measurement and Interpretation - Built-in ECG parameters measurement and interpretation.
External Archiving - Supports external archiving devices such as USB drive for virtually unlimited ECG data storage.
Pace maker detection - This feature ensures recognition of pacing signal artifacts.
Print Mode - Different print modes include pre-sample, realtime sample, period sample and arrhythmia triggered sample.
Internal Memory - Has an Internal Memory, which can store up to 800 ECG recordings.
Built-in Rechargeable Battery - High performance Li-ion rechargeable battery enables mains independent operations and provides battery use after charging.
Trolley - Custom trolley avaialble as an option.
PC Interface - Interfaces with PC using optional Smart-View software.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL Cardiart 9108 is a professional 12-channel electrocardiograph (ECG) machine designed for clinical, hospital and diagnostic-centre use. It captures and analyzes the heart’s electrical activity across all 12 standard leads simultaneously — making it suitable for comprehensive cardiac assessmen...
