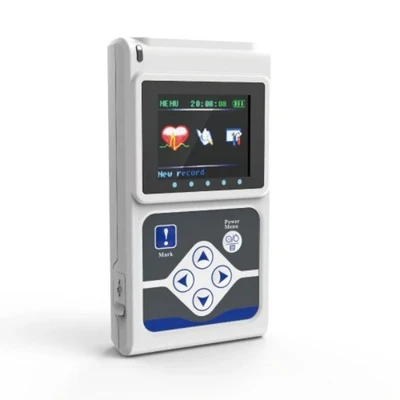

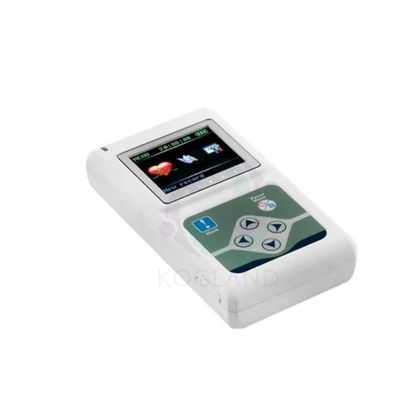

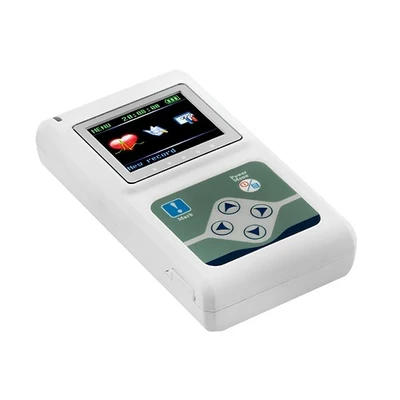

Contec TLC5000 12-Lead ECG Holter System

New

4.5

12456 Ratings

₹40,999₹65,00037% off

Specifications

Sampling Rate: Selectable 200, 500, 1000 samples/sec
Sampling Accuracy: 12 bit
Storage Capacity: Up to 2GB
Polarization Voltage: ±300mV DC
Sensitivity Shift: ≤±10%
Least Measure Signal: 50 µV p-p
Product Safety Type: Type B (Internally powered)
Dimensions: 111mm (L) x 60mm (W) x 25mm (H)
Weight: Approximately 105g (without battery)

highlights

Accurate Diagnosis: Detects arrhythmias, ischemia, and heart rate variability effectively with advanced ECG analysis algorithms.
Improved Patient Comfort: Lightweight design and easy electrode placement make long-term monitoring comfortable for patients.
Efficient Workflow: Automated data transfer and analysis reduce reporting time for cardiologists and technicians.
Reliable Hospital Integration: Ideal for both small and large hospitals, with scalable data management and compatibility with existing hospital information systems.
Trusted Clinical Performance: Used by medical professionals worldwide for routine cardiac monitoring and post-operative evaluation.

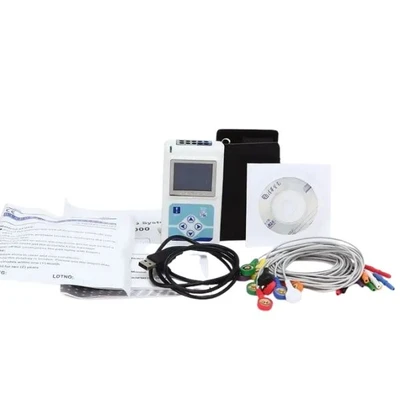

in the box

12-lead ECG lead wires
ECG electrodes (1 bag, 20 per bag)
USB data line (1)
Disk (1)
Bag (1)
User Manual (1)

Use Cases:

In-depth Cardiac Monitoring: Ideal for diagnosing and managing a wide range of cardiac arrhythmias and conditions requiring prolonged ECG observation.
Clinical Diagnosis: Supports accurate diagnosis in hospital and community medical settings.
Pacemaker Monitoring: Precisely records pacemaker function for effective patient management.
Research and Data Analysis: Provides high-fidelity data for research studies and clinical trials.

Key Features :

International standard 12-lead ECG system
Continuous 24-hour ECG recording capability
Small volume with OLED screen
Selectable sampling rates: 200, 500, 1000 samples/sec
Sampling accuracy: 12 bit
Build-in FLASH storage media (up to 2GB capacity)
Advanced PC software for quick and accurate analysis
12-leads synchronous analysis for accurate QRS search
Capabilities include VCG, LPG, high frequency ECG, FCG
Can record the state of pacemaker exactly
Durable, stable, and dependable operation
Anti-jamming and aseismatic capabilities

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Contec TLC5000 Dynamic ECG System is a robust and affordable solution for continuous 24-hour ECG monitoring. Adopting the international standard 12-lead system, this advanced Holter recorder ensures comprehensive data acquisition, mirroring the diagnostic quality of standard ECGs. Its compact de...
