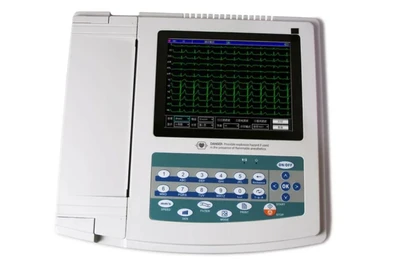

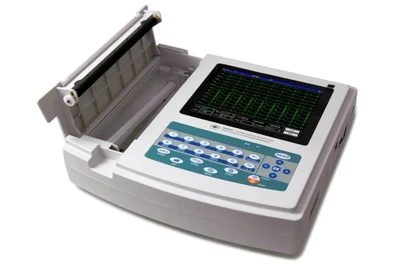

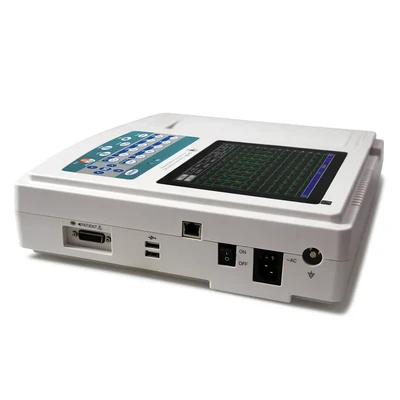

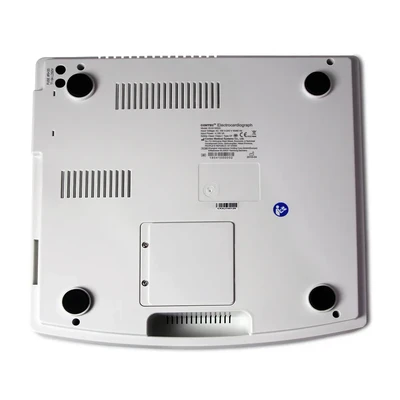

Contec 12 Channel ECG Machine- 1200G

New

4.5

12456 Ratings

₹45,500₹95,00052% off

Specifications

Screen size: 8 inches
Leads : 12 leads
Input way : Floating and defibrillation protection
Lead: Standard 12 leads
Patient leak current : <10ÂµA
Frequency response : 0.05Hz~150Hz(-3dB)
Time constant : Time constant>3.2s
CMRR : >60dB, >100dB( Adding filter)
EMG interference filter : 35Hz(-3dB)
Recording way : Thermal printing system
Specification of recording paper : 210mm(W)*20m(L) high-speed thermal paper
Paper speed : Auto record: 25mm/s, 50mm/s, error:Â±5%
Paper speed : Rhythm record: 25mm/s, 50mm/s, error:Â±5%
Paper speed : Manual record:5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:Â±5%
Sensitivity selections : 2.5,5,10,20,40mm/mV, error:Â±5%. Standard sensitivity is 10mm/mVÂ±0.2mm/mV.
Auto record : Record setup according to auto-record format and mode, automatically changing leads, measuring and analyzing.
Rhythm record : Record setup according to rhythm record format and mode, automatically measuring and analyzing.
Manual record : Record setup according to manual record format, manually changing leads.
Measurement parameters : HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P A*is, QRS A*is, T A*is, R(V5) , S(V1) , R(V5)+S(V1)
Product safety type : Class I CF applied part; there is defibrillation and pacing protection circuit in it.
Enduring polarization voltage : Â±300mV
Noise level : â‰¤15ÂµVp-p
Fuse specification : 2 pcs Ï†5*20mm AC time lag; T1.6A/250V(Power supply 220V)
Size : 340mm(L)*320mm(W)*85mm(H)
Net Weight : 3.2Kg

in the box

A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual

Key Features :

Recording and displaying ECG waveform in AUTO/Manual mode measuring and diagnosing ECG waveform parameters automatically prompting for “Leadoff” and “Lack of paper
Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
Multiple printing modes and formats, including auto 12x1, auto6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor's burden.
Built-in memory stores up to 1000 cases, convenient for case review and statistic.
Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it 3s case), which meets the requirements of visiting a patient at home and body examination.

Warranty

1 Year

Seller

AA MEDIE QUIPLearn More

Product Description

The Contec 1200G 12 Channel ECG Machine is a portable, high-performance digital electrocardiograph designed for simultaneous 12-lead ECG signal collection and analysis, suitable for a variety of clinical settings. It features automatic measurement and diagnosis, a built-in thermal printer, and long ...
