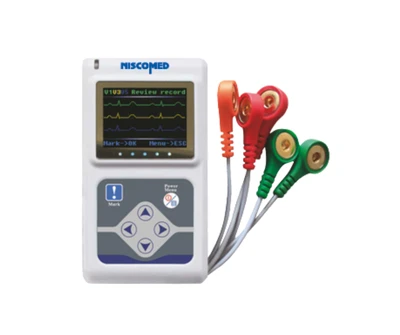

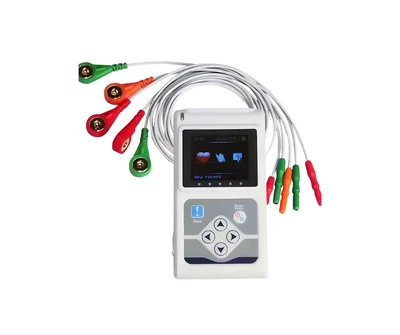

Niscomed TLC-9803 Holter ECG System 3 Channel

New

4.3|34 Ratings

₹32,700₹40,00018% off

Quantity :

Specifications

Number of Channels: 3
Recording Time: 24 hours
Interface: USB 2.0
Standard Sensitivity: 10 mm/mV ±5%
CMRR: ≥60 dB
Low Frequency Characteristics: Time Constant ≥3.2 s
Scan Speed: 25 mm/s ±5%
Enduring Polarization Voltage: ±300 mV DC
Least Measurable Signal: 50 µV p-p
Product Safety Type: Type B (Internally Powered)
Sampling Accuracy: 12 Bit
Power Supply: 2 AA size batteries
Scale Voltage: 1 mV ±5%
Noise Level: ≤30 µV

in the box

ECG Cable
One set of three lead wire
Software Dongle
Carry Bag

Use Cases

Cardiology Clinics: For diagnosing arrhythmias and monitoring heart health.
Hospitals: Continuous ECG recording for inpatients and outpatients.
Home Monitoring: Portable design for patient convenience.
Research & Clinical Trials: Accurate data collection for cardiac studies.

Applications

Continuous 24-hour ECG monitoring
Detection of cardiac arrhythmias
Atrial fibrillation (AF) evaluation
Heart Rate Variability (HRV) analysis
Investigation of palpitations
Assessment of unexplained dizziness or syncope
Pacemaker monitoring
Routine cardiac evaluation
Cardiology departments
Hospitals and diagnostic centres

Key-Features

Continuous 24-hour ECG recording
Compact and lightweight 3-channel Holter recorder
High-quality ECG waveform acquisition
Advanced arrhythmia detection and analysis
Atrial Fibrillation (AF) analysis
Pacemaker analysis support
Heart Rate Variability (HRV) analysis
Built-in patient case management software
USB interface for quick data transfer
One-click ECG report generation
User-friendly software for fast data review
Ideal for hospitals, cardiology clinics, and diagnostic centres

Clinical Benefits

Continuous ECG recording for up to 24 hours
Supports early detection of cardiac rhythm disorders
Helps diagnose intermittent arrhythmias more effectively
Provides detailed heart rhythm analysis
Reduces reporting time with automated ECG analysis
Improves diagnostic confidence through comprehensive reports
Lightweight recorder enhances patient comfort during monitoring
Suitable for routine cardiac assessment as well as complex diagnostic cases

Warranty

1 Year

Seller

AA Medie QuipLearn More

Product Description

The Niscomed TLC 9803 Holter Monitor is a compact and easy-to-use ambulatory ECG monitoring system designed to record a patient's heart activity continuously for up to 24 hours. Unlike a standard ECG, which captures heart activity for only a few seconds, this Holter monitor provides long-term ECG re...
