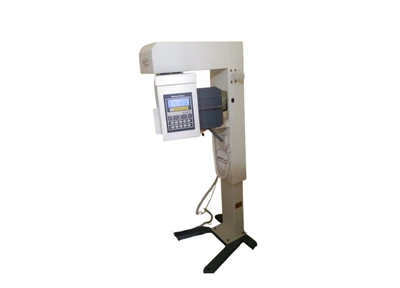

Detech 32 OPG Panoramic Dental X-Ray Unit

New

4.7|32 Ratings

₹3,50,000₹450,00022% off

Quantity :

Specifications

System Operation: Fully Automatic
Power Voltage: 230V / 50Hz
Nominal Power: 630 Watt
Max. Line Current: 5 Amp
Max. Power: 1100 Watt
Column Height: 150–220 cm (Motorized vertical movement)
OPG Tube: CEI 105/4
Tube Current: 15 mA
Tube Voltage: 55–85 Kvp (in steps)
Tube Focal Spot: 0.4 mm² Fine Focus
Exposure Time: PAN: 15 sec; TMJ: 4×4 sec
Total Filtration: 2.5 mm Aluminum
Cassette Size: OPG & TMJ: 6"x12", 10"x12"; Ceph: 8"x10", 10"x12"
Cassette Type: Flat (Analog/Digital)
Safety Features: Automatic exposure termination, audible & visible error alarms
Patient Positioning: LED center light, chin rest with bite wing
Remote: Lightweight, easy operation for exposure, test run, reset
Console: Microcontroller-based, soft-touch panel, 4-line LCD display
Voltage Regulation: Double-stage CVT regulation
Generator: Two-pulse generator, full-wave rectified
Magnification: OPG: 1.2; Ceph: 1.1
Positioning Mirror: Convex mirror
Unit Dimensions: With Ceph: 230×190×90 cm; Without Ceph: 230×90×90 cm
Weight: 185 kg

highlights

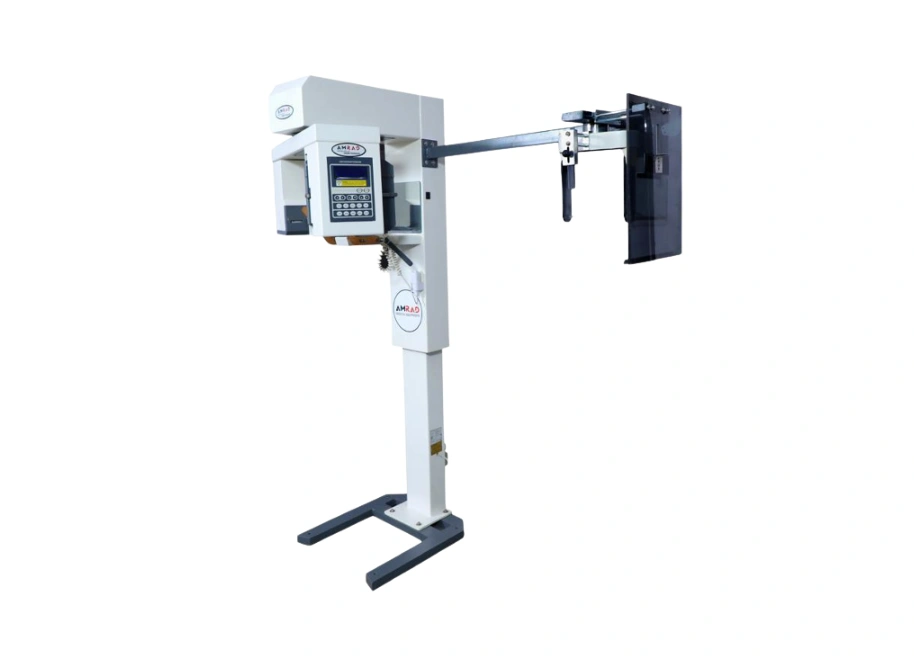

Type: Panoramic Dental X-Ray Unit with Cephalometric option
Operation: Fully automatic with soft-touch panel and remote
Model: Dentech-32
Warranty: 1 Year

Use Cases

Dental Clinics & Hospitals: For complete dental and jaw imaging.
Orthodontic Centers: Cephalometric analysis for treatment planning.
Maxillofacial Surgery: Pre-operative and post-operative imaging.
TMJ Disorder Diagnosis: Detailed joint imaging for dysfunction assessment.
Educational Institutions: Training and research in dental radiology.

Applications

Panoramic dental imaging (adult & child)
Temporomandibular joint (TMJ) imaging
Cephalometric imaging (AP/Lateral/Oblique)
Oral surgery and facial orthopedics

Warranty

Seller

avd undefinedLearn More

Product Description

The Dentech-32 Panoramic Dental X-Ray Unit is a next-generation imaging system designed for comprehensive dental and maxillofacial radiography. Built on the principle of X-ray drum curative tomography, it offers fully automatic operation, microcontroller-based controls, and advanced safety features....
