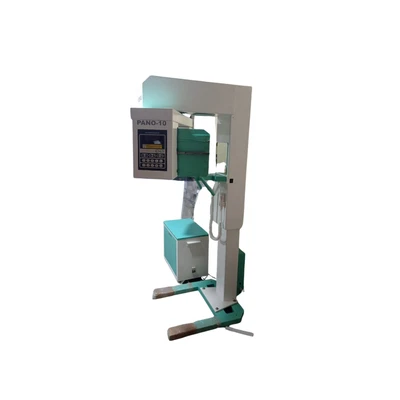

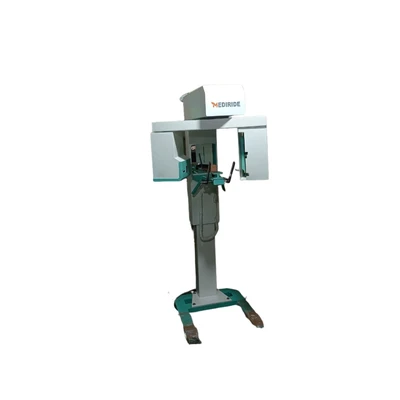

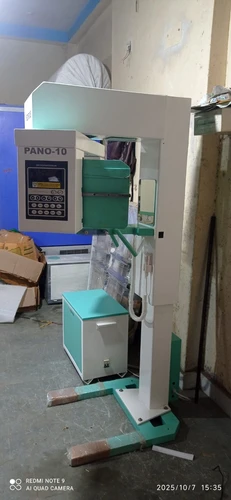

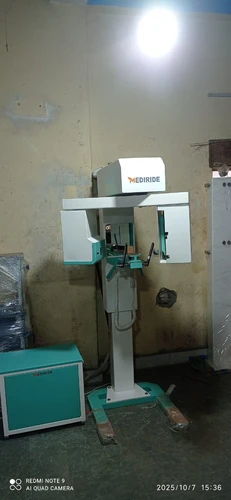

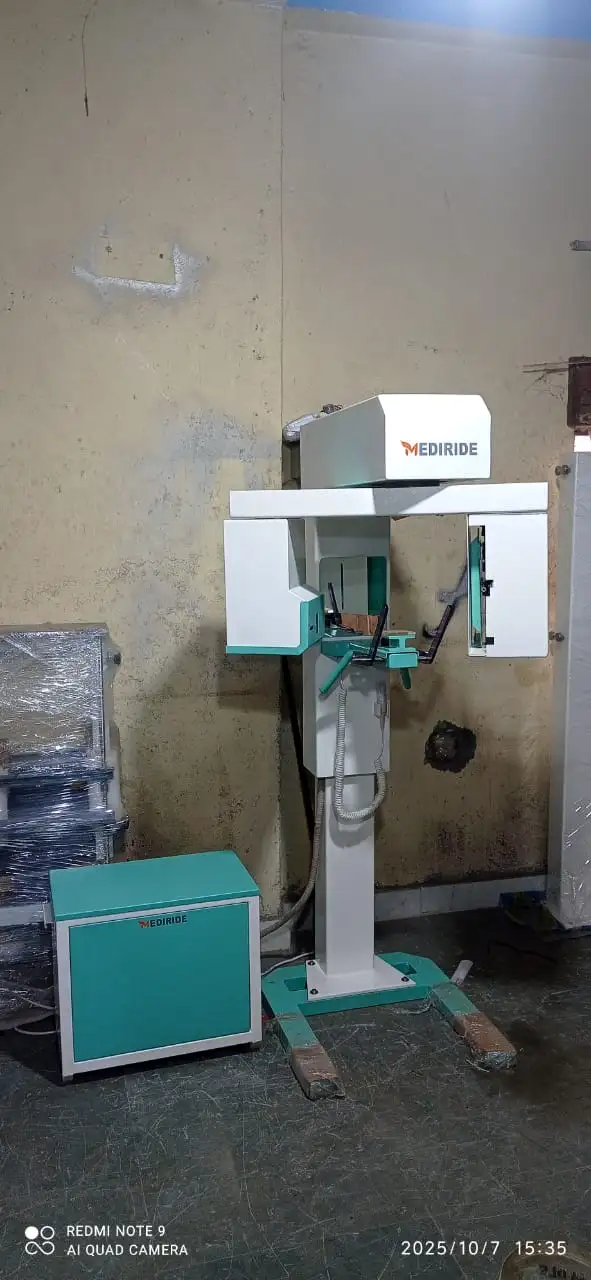

Mediride OPG Machine Analog (PANO-10)
Pre - Owned₹1,85,000₹400,00054% off
Specifications
- Generator : Two Pulse Generator, Full Wave Rectified
- Console : Microcontroller Based, Touch Panel
- APR Facility : Available
- OPG Tube : OPX-105 (Make: CEI, Imported)
- Tube Current : 10 mA
- Tube Voltage : 55 Kvp to 90 Kvp (1 Kvp steps)
- Tube Focal Spot : 0.5 mm² Fine Focus
- Total Filtration : 2.5 mm Aluminum at 70KV
- Exposure Time : PAN: 17s, TMJ: 4×4s, CEPH: 60mAS
- Patient Positioning : Laser Marking
- Centering Reference : Chin Rest with Bite Rod
- Remote : Lightweight, Easy Operation
- Cassette Size : OPG/TMJ: 6"x12", 10"x12"; Ceph: 8"x10", 10"x12"
- Cassette Type : Flat (Analog/Digital)
- Safety Features : Auto Exposure Termination, Audible/Visual Alarms
- Cephalogram Views : AP / PA / LAT
- Magnification : OPG: 1.2, CEPH: 1.1
- Voltage Regulation : Double Stage CVT Regulation
- Power Requirement : 200/220/240VAC, 15 Amps Socket
- Max Line Current : 5 Amp
- Max Power : 900 Watt
- Unit Dimensions : With Ceph: 230×175×95 cm; Without Ceph: 230×80×95 cm
- Weight : Approx. 200 Kg
- Column Height : Adjustable from 5'8" to 7'8" (up to 2 ft.)
highlights
- Model: Mediride PANO-10
- Type: Panoramic Dental X-Ray Unit
- Certifications: AERB Approved, ISO Certified, IS 7620 Compliant
- Applications: Panoramic, TMJ, and Cephalometric imaging
- User Interface: Microcontroller-based touch panel
- Safety: Includes automatic exposure termination and error alarms
- Marketing Contact: Pecskart Medical Devices Pvt Ltd, Gurgaon
Warranty
No Warranty
Seller
AA MEDIE QUIPLearn More
Disclaimer : Product details are submitted by the seller. EquipMedy will carry out inspection and give you inspection report before you purchase.
Product Description
The Mediride PANO-10 is a high-definition panoramic dental X-ray unit designed for comprehensive dental imaging.
Other Details
The Mediride PANO-10 is a high-definition panoramic dental X-ray unit designed for comprehensive dental imaging. Manufactured and marketed by Pecskart Medical Devices Pvt Ltd, it is certified by AERB and conforms to IS 7620: Part 1:1986 standards. The unit supports multiple imaging modes including Standard Panoramic Projection, Child Projection, and Temporomandibular Joint (TMJ) imaging.
