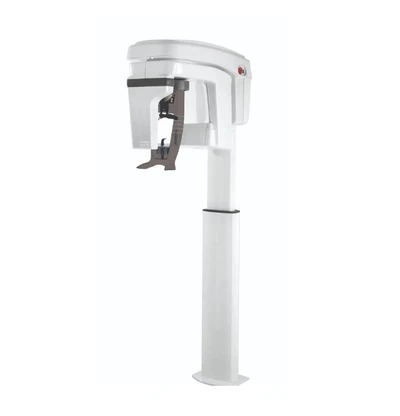

Carestream OPG Dental Xray Machine - CS 8100

Name: Carestream OPG Dental Xray Machine - CS 8100
Brand: Carestream
SKU: 2d5c1293-3002-4222-8387-aa623e31660a
Price: 920450 INR
Availability: InStock
Rating: 4 (39 reviews)

New

4.0|39 Ratings

₹9,20,450₹1,199,00023% off

Quantity :

Specifications

Tube voltage 60–90 kV
Tube current 2–15 mA
Frequency 140 kHz
Tube focal spot 0.5 mm (IEC 60336)
Sensor technology CMOS
Image field 6.4 × 131.2 mm
Gray scale 4096–12 bits
Magnification 1.2 (± 10%)
Radiological exam options Full panoramic, segmented panoramic, maxillary sinus, LA TMJ x2, LA TMJ x4, 2D+
Exposure time 4 to 14 seconds
Weight 72 kg (158.7 lb)
Minimum required space 1200 (L) × 1400 (D) × 2400 (H) mm

in the box

OPG Dental Xray Machine - CS 8100

available offers

OPG Dental Xray Machine - CS 8100

Key Features of the Carestream CS 8100

Advanced CMOS Sensor Technology: Delivers sharp, detailed, and well-contrasted panoramic images.
Exclusive 2D+ Imaging: Creates thin slices along the jaw to provide additional diagnostic detail compared with a standard 2D panoramic image.
High-Frequency Generator with 0.5mm Focal Spot: Supports clear image capture within just a few seconds.
Vibration-Free Motion System: Helps reduce motion artifacts for cleaner and more diagnostically useful images.
One-Click Artifact-Free Filters: Improve contrast and sharpness instantly without the need for complex post-processing.
Complete Range of Exam Programs: Supports full panoramic, segmented panoramic, maxillary sinus, and LA TMJ (x2/x4) imaging from a single unit.

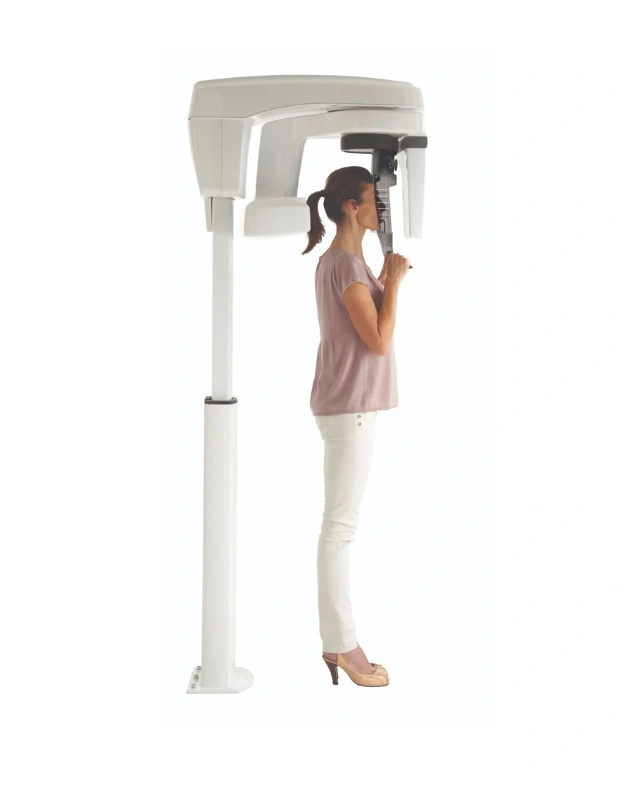

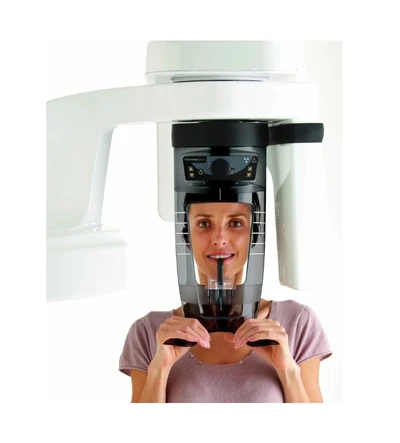

Open Design with Face-to-Face Positioning: Transparent patient support and an open layout make correct patient positioning easier.
"Plug-and-Pan" Installation: The ultra-compact design fits into tight clinic spaces and allows installation with minimal disruption.
Direct Network Connectivity: Ethernet connectivity supports remote servicing, helping reduce service costs and system downtime.

Clinical Benefits of Carestream CS 8100

More Accurate Diagnoses: Sharp, artifact-free imaging supported by a high-frequency generator and CMOS sensor gives clinicians clearer detail to work from.
Greater Positioning Tolerance: An increased focal trough thickness accommodates imperfect patient positioning and challenging anatomy, particularly in the anterior area.
Deeper Diagnostic Detail with 2D+: Thin-slice imaging along the jaw reveals detail that a standard 2D panoramic image can miss.
Broader Exam Coverage from One Unit: Full panoramic, segmented panoramic, maxillary sinus, and TMJ imaging options support a wide range of everyday diagnostic needs.
Fewer Retakes: Preset programs, automatic exposure settings, and clear positioning guidance help reduce technique-related errors and repeat exposures.

Why Choose the Carestream CS 8100 Digital Panoramic System?

Genuinely easy to install and use: The "plug-and-pan" approach helps reduce setup time and makes it easier for staff to learn the system.
Strong value for everyday panoramic imaging: Offers advanced imaging technology without the cost of a complete imaging suite.
Space-efficient design: The compact footprint makes it suitable for clinics where a larger panoramic unit may not fit.
More forgiving of imperfect positioning: A thicker focal trough provides greater tolerance for challenging anatomy, particularly in the anterior region.
Future-ready with 2D+: Provides additional diagnostic detail from routine panoramic examinations without moving to a full CBCT system.
Lower long-term service costs: Ethernet connectivity allows many service activities to be handled remotely, helping reduce downtime.

Warranty

5 Year

Seller

AA Medie QuipLearn More

Product Description

The Carestream CS 8100 is a compact digital panoramic imaging system built around a simple idea: advanced technology should be easy to use. This CS 8100 digital panoramic system delivers sharp, artifact-free image quality, an exclusive 2D+ imaging program, and easy installation in a compact unit tha...
