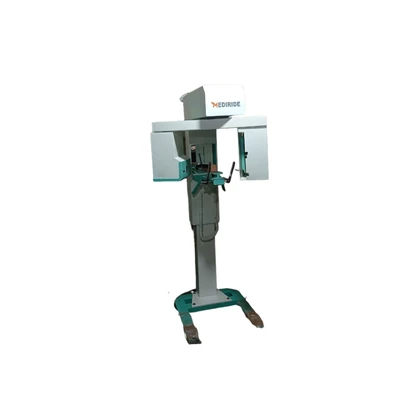

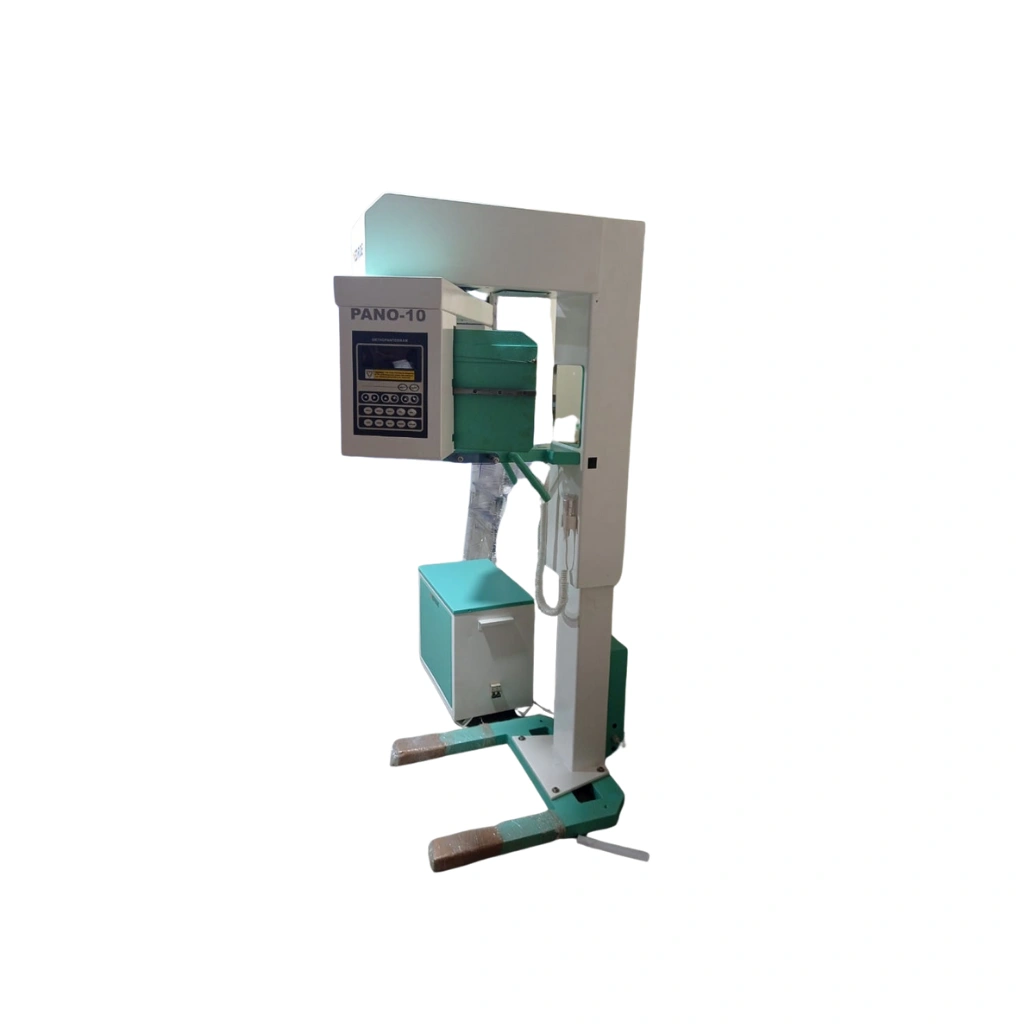

Mediride OPG Machine Analog (PANO-10)

New

₹3,60,000₹450,00020% off

Specifications

Generator : Two Pulse Generator, Full Wave Rectified
Console : Microcontroller Based, Touch Panel
APR Facility : Available
OPG Tube : OPX-105 (Make: CEI, Imported)
Tube Current : 10 mA
Tube Voltage : 55 Kvp to 90 Kvp (1 Kvp steps)
Tube Focal Spot : 0.5 mm² Fine Focus
Total Filtration : 2.5 mm Aluminum at 70KV
Exposure Time : PAN: 17s, TMJ: 4×4s, CEPH: 60mAS
Patient Positioning : Laser Marking
Centering Reference : Chin Rest with Bite Rod
Remote : Lightweight, Easy Operation
Cassette Size : OPG/TMJ: 6"x12", 10"x12"; Ceph: 8"x10", 10"x12"
Cassette Type : Flat (Analog/Digital)
Safety Features : Auto Exposure Termination, Audible/Visual Alarms
Cephalogram Views : AP / PA / LAT
Magnification : OPG: 1.2, CEPH: 1.1
Unit Dimensions : With Ceph: 230×175×95 cm; Without Ceph: 230×80×95 cm
Weight : Approx. 200 Kg
Column Height : Adjustable from 5'8" to 7'8" (up to 2 ft.)

highlights

Model: Mediride PANO-10
Type: Panoramic Dental X-Ray Unit
Certifications: AERB Approved, ISO Certified, IS 7620 Compliant
Applications: Panoramic, TMJ, and Cephalometric imaging
User Interface: Microcontroller-based touch panel
Safety: Includes automatic exposure termination and error alarms
Marketing Contact: Pecskart Medical Devices Pvt Ltd, Gurgaon
Warranty : 1 Year Warranty

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Mediride PANO-10 is a high-definition panoramic dental X-ray unit designed for comprehensive dental imaging.

Other Details

The Mediride PANO-10 is a high-definition panoramic dental X-ray unit designed for comprehensive dental imaging. Manufactured and marketed by Pecskart Medical Devices Pvt Ltd, it is certified by AERB and conforms to IS 7620: Part 1:1986 standards. The unit supports multiple imaging modes including Standard Panoramic Projection, Child Projection, and Temporomandibular Joint (TMJ) imaging.
