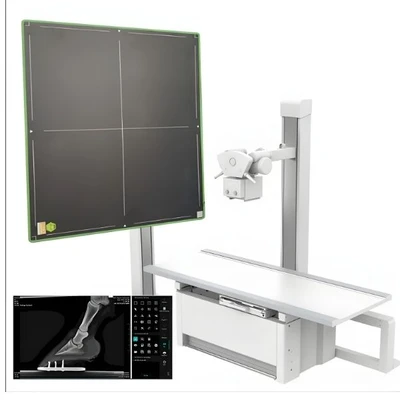

CareRay CareView 1500cw DR System

New

0.0|0 Ratings

Quantity :

Specifications

Product Model : CareView 1500cw
Detector Type : Wireless Flat Panel Detector
Detector Size : 14" × 17"
Active Imaging Area : 433.7 × 354.8 mm
Scintillator : Direct-Deposit CsI
Pixel Matrix : 2816 × 2304
Pixel Pitch : 154 μm
Limiting Resolution : 3.25 lp/mm
DQE : > 65% @ 0 lp/mm
MTF : 70% @ 1 lp/mm, 40% @ 2 lp/mm, 22% @ 3 lp/mm
Dynamic Range : 16 bit / 82 dB
Image Acquisition Time : 2–4 sec
Communication Interface : Gigabit Ethernet, Wi-Fi (2.4 / 5 GHz)
Exposure Control : AED / Manual Sync / Software Sync
Power Supply : 100–250V AC, 50/60 Hz
Maximum Power : < 8W standby / 120W operating
Operating Temperature : 5°C to 35°C
Storage Temperature : -20°C to 55°C
Operating Humidity : 30%–75% RH
Storage Humidity : 10%–90% RH
Dimensions : 460 × 384 × 15 mm
Weight : 3.6–3.7 kg
Housing Material : Carbon Fiber Front + Aluminum Alloy Back
Certification : FDA, CE, CFDA

highlights

Wireless acquisition and full-resolution image transfer within approximately 4 seconds
Low power consumption with long battery life
Rugged aluminum alloy body with carbon fiber imaging surface
Advanced low-dose imaging technology
Flexible synchronization modes: AED, Manual Sync, Software Sync
Easy installation into standard bucky trays
Robust design for harsh environments and long-term use

in the box

CareView 1500cw wireless detector panel
Rechargeable Li-ion battery
Battery charger / charging dock
Power supply adapter
Ethernet / interface cables
Wireless access point / network module (optional depending on package)
User manual / operation manual
Calibration and installation accessories

Use Cases :

General radiography (Chest, abdomen, limbs)
Emergency and trauma imaging
Bedside / ICU / ward portable X-ray imaging
Operating room imaging
Mobile healthcare / field radiography
CR to DR retrofit upgrades
Veterinary radiography

Key Features :

14" × 17" wireless cassette-size flat panel detector
Direct-deposit Cesium Iodide (CsI) scintillator for high sensitivity and low-dose imaging
2304 × 2816 pixel matrix
154 μm pixel pitch
DQE > 65% @ 0 lp/mm
Full-Field Automatic Exposure Detection (AED) for easy retrofit and broad compatibility
Dual-band Wi-Fi (2.4 GHz / 5 GHz) connectivity
Gigabit Ethernet wired connection
Magnetic folding handle for easy transport
Lightweight and slim design
Pre-calibrated for out-of-box imaging
IP64-rated dustproof and water-resistant construction
FDA and CE certified

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

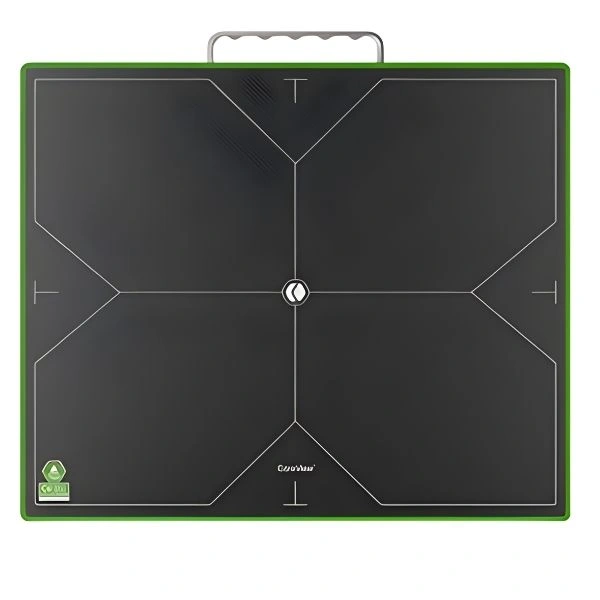

The CareRay CareView 1500cw DR System is a high-performance 14" × 17" wireless cassette-size digital radiography detector designed for upgrading conventional analog or CR X-ray systems to DR. It offers excellent image quality, low-dose performance, and flexible integration for hospitals, clinics, mo...
