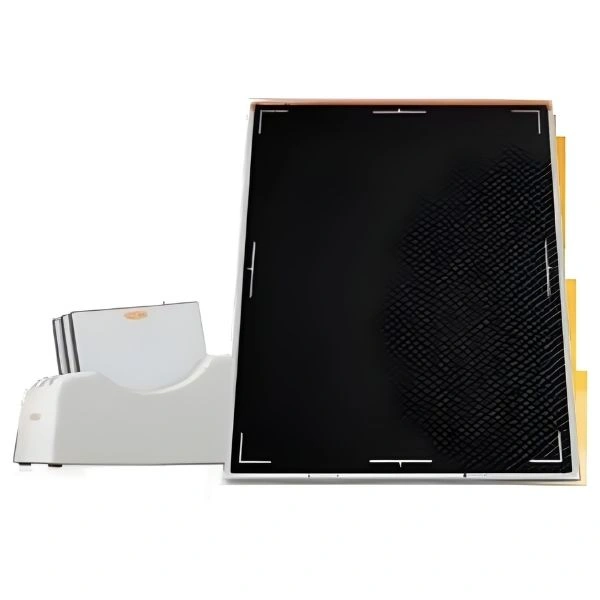

CareStream DRX Plus DR System

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Carestream DRX Plus Detector
Detector Type : Wireless Flat Panel Detector
Detector Sizes : 25 × 30 cm / 35 × 43 cm / 43 × 43 cm
Scintillator Options : CsI / GOS
Pixel Pitch : Up to 139 μm (model dependent)
A/D Conversion : 16-bit
Communication : Wi-Fi / Ethernet
Wireless Bands : 2.4 GHz / 5 GHz
Enclosure Rating : IP57
Battery Feature : Hot-Swap Supported
Image Acquisition : Fast frame rate / instant access
Beam Detect Mode : Yes
Calibration Storage : On-detector
Detector Sharing : X-Factor platform compatible
Max Water Resistance : 1 meter for 30 min
Load Capacity : Model dependent
Weight : Reduced vs DRX-1 (varies by model)
Application : General, Mobile, Pediatric, Orthopedic
X-ray Energy Range : Up to 150 kVp
LED Indicators : Tri- and Bi-color
Compatibility : DRX Family & retrofit systems

highlights

World’s first wireless cassette-size DR detector heritage
Exceptional image quality with lower dose potential
Shareable detector across multiple rooms and mobile systems
Rugged waterproof design can withstand submersion up to 1 meter for 30 minutes
Faster workflow with wireless connectivity and instant image access
Spare battery charging with separate charger for continuous operation
Compatible with future advanced applications due to high frame rate

in the box

Carestream DRX Plus wireless detector
Rechargeable battery
Spare battery / optional extra battery
Battery charger / charging dock
Wireless access point / network accessories
Ethernet / interface cable
Calibration files/software
User documentation / installation guide

Use Cases :

General radiography
Mobile X-ray / bedside imaging
ICU / ER / trauma imaging
Operating room imaging
Pediatric imaging (especially with 2530C model)
Orthopedic tabletop imaging
Retrofit upgrades for analog or CR systems
Bariatric and chest imaging with larger-format detectors

Key Features :

Wireless, cassette-sized flat panel detector

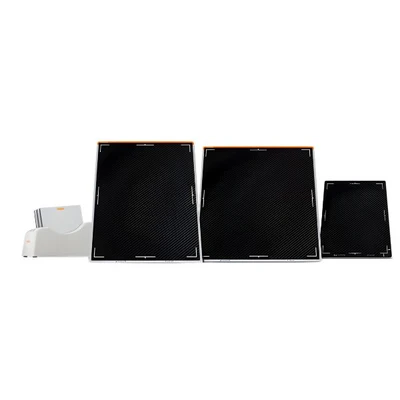

Available in multiple sizes: 2530C, 3543C/G, 4343C/G
Cesium Iodide (CsI) scintillator for dose-sensitive applications
Optional Gadolinium Oxysulfide (GOS) scintillator in select models
Higher DQE for improved image quality at lower radiation dose
X-Factor sharing across DRX family systems
IP57 enclosure for dust and water protection
IP57 enclosure for dust and water protection
Beam Detect Mode for retrofit rooms without generator cable connection
On-detector calibration file storage for quicker setup
Fast frame rate for advanced imaging applications
Tri- and bi-color LED status indicators
Reduced weight and thinner profile for easier handling

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Carestream DRX Plus Detector System is a next-generation wireless, cassette-sized digital radiography (DR) detector designed for high-quality imaging, lower dose performance, and seamless workflow. Built on Carestream’s X-Factor platform, the DRX Plus detectors are shareable across the entire DR...
