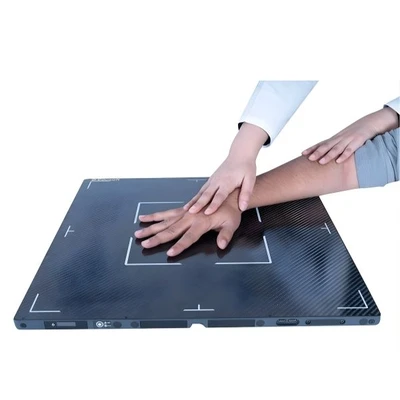

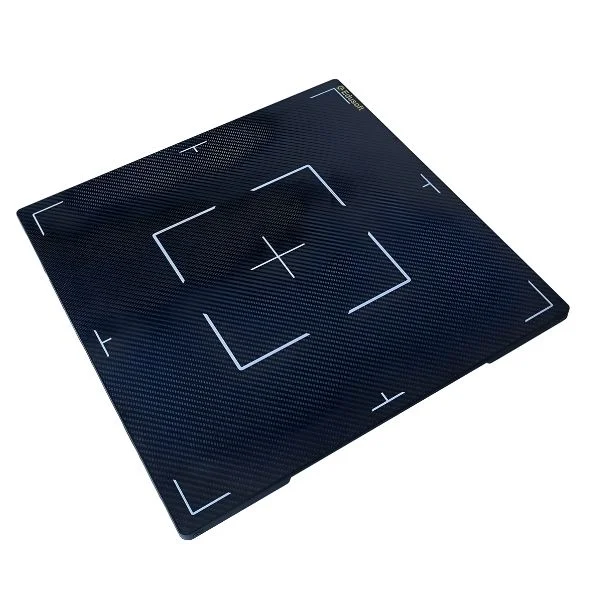

Edusoft Eray 43i DR System

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Edusoft ERAY 43i DR System
Model : ERAY 43i
Application : General Radiography
Detector Size : 17" × 17"
Scintillator : CsI / GOS
TFT Panel : a-Si / IGZO
Pixel Pitch : 140 μm
AD Conversion : 16 bit
Image Area / Resolution : 3072 × 3072 pixels
Wired Communication : Gigabit Ethernet
Wireless Communication : IEEE 802.11ac Wi-Fi
Trigger Mode : High Sensitive 2XAED®
Inner Storage : <100 to 200 Images
Battery Type : Lithium-Ion Polymer
Battery Operation Time : 12–14 Hours
Water & Dust Resistance : IP55
Weight Bearing (Whole Surface) : Up to 500 kg
Center Load : 180 kg on 4 × 4 cm
Drop Test : Up to 50 cm
X-Ray Voltage Range : 40 ~ 150 kVp
Calibration Mode : ACC / Manual
Power Supply : AC 100–240V, 50/60Hz / DC 18V 3.5A
Dimensions : 461 × 461 × 15 mm
Weight (incl. battery) : < 3.9 kg
Operating Temperature : 10°C ~ 35°C
Storage Temperature : -10°C ~ 60°C
Operating Humidity : 20% ~ 75% RH
Storage Humidity : 10% ~ 90% RH

highlights

Cutting-edge imaging technology for excellent image clarity
Ultra-sensitive X-ray detection for low-dose imaging
Long battery life for uninterrupted workflow
Rugged, non-glass detector design for enhanced durability
Easy-grip ergonomic design with detachable handle
Resistant to fluid spills including blood and urine
Fast wireless image transfer and improved workflow efficiency

in the box

ERAY 43i wireless flat-panel detector
Lithium-Ion Polymer battery (dual battery support)
Dual battery charger
AC/DC power adapter
Ethernet cable
Wireless communication accessories / access point
Removable handle
User manual / installation guide
Calibration software / tools (depending on package)

Use Cases :

General radiography (chest, abdomen, extremities)
Mobile / portable X-ray systems
Retrofit upgrade for analog X-ray rooms
Emergency and trauma imaging
ICU / bedside radiography
Orthopedic imaging
Veterinary imaging
Field and remote healthcare diagnostics

Key Features :

17" × 17" wireless cassette-size flat panel detector
Advanced IGZO Non-Glass TFT / Robust Non-Glass TFT technology
140 μm pixel pitch for high-resolution imaging
High Sensitive 2XAED® (Auto Exposure Detection) technology
Dual battery technology with up to 12–14 hours continuous operation
Supports Gigabit Ethernet and IEEE 802.11ac Wi-Fi
IP55 dust and water resistance
Durable structure with 500 kg full surface load capacity
180 kg center load on 4 × 4 cm area
Built-in internal storage for 100–200 images
Lightweight magnesium alloy frame with removable handle
Auto Calibration Control (ACC) / Manual calibration modes

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Edusoft ERAY 43i DR System is a premium wireless flat-panel digital radiography detector designed for general radiography applications. Developed by Edusoft Healthcare in partnership with PIXXGEN Corporation, the ERAY Prudent Series offers high sensitivity, high performance, and reliability for ...
