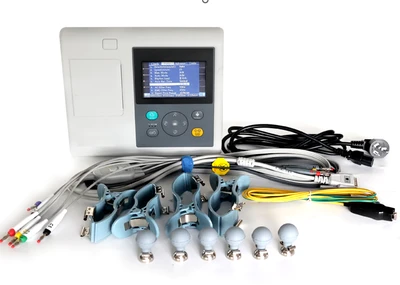

Elvionix ELV Cardia 3 ECG Machine

New

0.0|0 Ratings

₹22,000₹40,00045% off

Quantity :

Specifications

Model: ELV Cardia 3
ECG Channels: 3 Channel
Lead Configuration: Standard 12 Leads
Lead Acquisition: Simultaneous 12-Lead Acquisition
Display: 5-inch 800 × 480 Color LCD
Operating Modes: Manual, Auto, R-R, Store
Recording Modes: 1ch+, 3ch, 3ch+
Paper Type: 80 mm × 20 m Thermal Paper
Paper Speed: 6.25, 12.5, 25, 50 mm/s
Sensitivity: Auto, 2.5, 5, 10, 20, 40 mm/mV
Frequency Response: 0.05 – 160 Hz
CMRR: ≥120 dB
Input Impedance: ≥50 MΩ
Filters: AC Filter (50/60 Hz), EMG Filter (25/45 Hz), Anti-Drift Filter (Adaptive 0.15 Hz)
Storage Capacity: Up to 250 Patient Cases
Connectivity: USB, UART
Battery: Built-in Rechargeable Li-ion Battery, 14.4V, 2200mAh
Battery Backup: Up to 9 Hours of Continuous Operation
Power Supply: AC 110–240V, 50/60Hz
Dimensions: 300 × 230 × 72 mm
Weight: 2.8 kg

highlights

Simultaneous 12-lead ECG acquisition for accurate cardiac assessment
High-resolution 5-inch color LCD display with clear waveform visualization
3-channel thermal printing with automatic interpretation
Multiple operating modes: Manual, Auto, R-R, and Store
Stores up to 250 patient records for easy data management
Advanced digital filters for enhanced signal quality
Built-in rechargeable Li-ion battery with up to 9 hours of backup
USB and UART connectivity for data transfer and printing
Compact, lightweight, and portable design for convenient use
Suitable for hospitals, clinics, diagnostic centers, and emergency care

in the box

ELV Cardia 3 ECG Machine
Patient Cable
Limb Electrodes Set
Chest Electrodes Set
Power Cable
Grounding Cable
Paper Axis
Thermal Recording Paper
User Manual

Use Cases

Heart check-ups in hospitals and clinics
ECG tests in diagnostic centers
Monitoring patients in emergency rooms
Checking heart health before and after surgery
Bedside ECG monitoring for admitted patients
Regular heart assessments in doctor's clinics
Use in ambulances and mobile healthcare units
Health camps and preventive screening programs
Home healthcare visits

Key Features

Simultaneous 12-lead ECG acquisition
3-channel ECG recording with thermal printer
5-inch high-resolution color LCD display
Automatic ECG interpretation
Multiple operating modes: Manual, Auto, R-R, and Store
Stores up to 250 patient records
Advanced digital filters for clear ECG signals
Built-in rechargeable battery with up to 9 hours of backup
USB connectivity for data transfer and printing
Compact, lightweight, and easy-to-use design

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

ELV Cardia 3 is a portable and user-friendly 3-channel ECG machine designed for accurate and efficient cardiac assessments. It features simultaneous 12-lead acquisition, a 5-inch color LCD display, and automatic ECG interpretation for faster clinical decision-making.

Equipped with multiple operat...
