Shipping time and rates
Shipping about 5-7 days

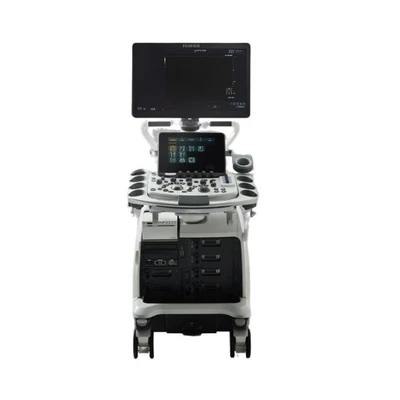

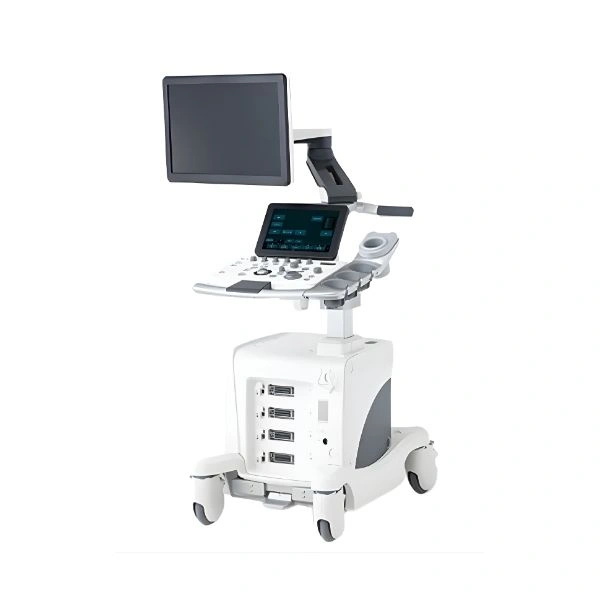

Fujifilm Arietta 850 Ultrasound Machine
New4.3|46 Ratings
Quantity :
1
Specifications
- Imaging Platform : DeepInsight with eFocusing & Active Backend Plus architecture
- Display : 22″ OLED main monitor; 10.4″ touchscreen secondary panel
- Transducer Ports : 6 available (4 active, 2 parking)
- Advanced Applications : Elastography (RTE & SWM), Contrast Harmonic Imaging, RVS, Needle Tracking
- Workflow Tools : Protocol Assistant, automated measurements
- Connectivity : DICOM, USB 2.0/3.0, Ethernet, video I/O
- Dimensions (WxDxH) : ~550 × 900 × 1220–1695 mm
- Weight : ~145 kg
- Power Requirements : AC 100–120 V, 50/60 Hz
- Probe Compatibility : Convex, linear, sector, endovaginal/transrectal, CMUT high-performance probes
- Special Tools : Automated FHR, auto-fetal measurements, dual-port Doppler
highlights
- Premium image clarity with DeepInsight & eFocusing for detailed visualization across depths.
- 22″ OLED monitor with excellent grayscale contrast for diagnostic confidence.
- Broad application support from radiology to cardiovascular and obstetrics.
- Advanced workflow tools reduce exam time and operator variability.
- Multimodality compatibility (e.g., MRI/CT fusion via RVS).
in the box
- Fujifilm ARIETTA 850 console with display
- High-resolution 22″ OLED monitor and touchscreen
- Integrated control panel with ergonomic layout
- Power cables and castor stand/frame
- User manuals and documentation
- Cable management components
- Accessory trays / holders
Use Cases :
- General Radiology
- Cardiology
- Women’s Health & OB/GYN
- Vascular Imaging
- Point-of-Care & Interventions
Clinical Benefits
- More Consistent Diagnostic Quality: AI-based noise reduction and Carving Imaging help reduce variation in image quality between examiners and patients.
- Better Detection in Challenging Cases: DeepInsight's visibility improvements are designed to help examiners identify abnormalities that may otherwise be masked by image noise.
- Faster Cardiac Assessment: Automated Simpson, iDGD, and i2DTT measurements can reduce cardiovascular examination time and support arrhythmia case assessment through optimum heartbeat detection.
- Non-Invasive Tissue Stiffness Evaluation: Real-Time Tissue Elastography and Shear Wave/iATT support breast, thyroid, urinary, and liver assessment without requiring a biopsy.
- Safer, More Accurate Interventions: RVS, 3D Sim-Navigator, and E-field Simulator support needle-path planning and ablation strategies with greater confidence.
- Clearer Blood Flow Visualisation: Noise- and motion-suppression algorithms support clearer blood flow observation, including during routine screening.
Why Choose the FUJIFILM Arietta 850?
- Built around a complete imaging philosophy, not one feature: DeepInsight's five pillars — reproducibility, accuracy, visibility, efficiency, and AI — are integrated across the platform rather than limited to a single imaging mode.
- Designed to reduce examiner-dependent variation: AI-driven noise reduction and Carving Imaging are designed to support more consistent image quality across different operators.
- Genuinely broad application range: From cardiac function and elastography to interventional treatment guidance, the system supports multiple specialties from one platform.
- Streamlined workflow: Protocol Assistant and the Intelligent Series (iDGD, i2DTT) automate several steps that would otherwise require manual measurement.
- Advanced treatment support: Real-Time Virtual Sonography, 3D Sim-Navigator, and E-field Simulator extend the system's use beyond diagnosis into procedure planning.
- Backed by Fujifilm Healthcare's imaging expertise: Part of the established ARIETTA 850 series, with AI capabilities developed under Fujifilm's REiLI technology brand.
Key Features of the FUJIFILM Arietta 850
- DeepInsight AI Noise Reduction (powered by REiLI): Extracts useful tissue information from noisy data, helping reveal fine structures that may otherwise be masked.
- eFocusing PLUS Multi-Frequency Beamforming: Combines multiple received beams and frequencies into a single real-time image with focus maintained across different depths.
- Carving Imaging: Enhances tissue structures for clearer demarcation and more stable results across different patients.
- Pure Symphonic Architecture: Uses a refined signal chain from the transducer through the variable beamformer, active backend, and OLED monitor to support premium-class image performance.
- Protocol Assistant with Guide View: Allows exam protocols and imaging conditions to be programmed in advance, reducing the number of button operations needed during scanning.
- AI-Powered Cardiac Function Tools: Automated Simpson measurement recognises LV, LA, and RA intima to calculate volume, along with Doppler Cursor Assist and related tools.
- Intelligent Series (iDGD & i2DTT): Automates E/e' measurement in Dual Gate Doppler and 2D tracking-based measurements, including Global Longitudinal Strain (GLS).
- Real-Time Tissue Elastography (RTE) & Shear Wave/iATT: Evaluates tissue stiffness in real time, with applications validated for breast, thyroid, and urinary examinations, along with hepatic fat estimation through iATT.
- Enhanced Blood Flow Visibility: An algorithm suppresses motion and scanning noise in colour mode to provide clearer blood flow visualisation, including during body movement.
- Real-Time Virtual Sonography (RVS) & 3D Sim-Navigator: Combines live ultrasound with previous CT/MRI data and simulates needle paths to support interventional guidance.
Warranty
Seller
AA Medie QuipLearn More
Product Description
The FUJIFILM Arietta 850 is Fujifilm Healthcare's premium ultrasound platform, built around a philosophy the company calls DeepInsight — its approach to what modern ultrasound imaging should deliver. Instead of focusing on just one headline feature, the Arietta 850 ultrasound system is designed arou...
