FujiFilm FDR ES C35 DR System

New

0.0|0 Ratings

Quantity :

Specifications

Product Name : Fujifilm FDR ES C35
Model Number : DR-ID 1283SE
Detector Size : 14" × 17"
Scintillator : CsI (Cesium Iodide)
External Dimensions : 460 × 384 × 15 mm
Weight : Approx. 2.9 kg (including battery)
Pixel Pitch : 150 μm
Pixel Matrix : Approx. 2836 × 2836 pixels
Dynamic Range : 16-bit
Wireless Standard : IEEE 802.11n / 802.11ac
Frequency Band : 2.4 GHz / 5 GHz
Image Preview Time : Less than 2 sec
Cycle Time : Less than 9 sec (wired/wireless)
Cycle Time (AED) : Less than 10.5 sec (wireless)
Battery Recharge : Time Approx. 3 hrs (charger), 4.5 hrs (Power Box)
Battery Performance : Over 3 hrs / 200 shots
Housing Material : Carbon Fiber
Waterproof Rating : IPX-3
Connection Type : Wireless / Tethered
Compatible Console : Console Advance / FDX Console
Application : General Radiography / Retrofit / Portable Imaging

highlights

Affordable next-generation DR retrofit solution
High image quality at lower dose
No major room modifications required
Rounded edges for easy pickup and positioning
Lightweight and portable design
Fast workflow with rapid image display
Available in wireless or tethered configurations
Easy battery replacement and sleep mode for improved uptime

in the box

Fujifilm FDR ES C35 detector panel
Rechargeable battery pack
Battery charger
Tether cable / detachable cord (depending on configuration)
Wireless communication module / access point
Power box / MP box (optional in some configurations)
User manual / installation guide
Calibration / console software compatibility with Console Advance or FDX Console

Use Cases :

General radiography (chest, abdomen, extremities)
Retrofit upgrade for analog and CR X-ray rooms
Tabletop and free-positioning exams
Mobile / portable X-ray systems
Orthopedic imaging
Emergency and trauma imaging
Veterinary applications

Key Features :

14" × 17" cassette-size flat panel detector
Cesium Iodide (CsI) scintillator
Proprietary ISS (Irradiated Side Sampling) technology for sharper images and improved dose efficiency
150 μm pixel pitch
16-bit dynamic range
Wireless and tethered operation
Fits standard bucky trays and holders
Lightweight 2.9 kg (including battery)
Carbon fiber casing for durability and easy handling
IPX-3 liquid resistance
Sleep mode for extended battery life
IEEE 802.11n / 802.11ac wireless communication
Fast image preview in less than 2 seconds
Battery performance of 200+ shots per charge
Dose efficiency improvements up to 30% compared to Fujifilm CR and up to 20% over comparable DR designs

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

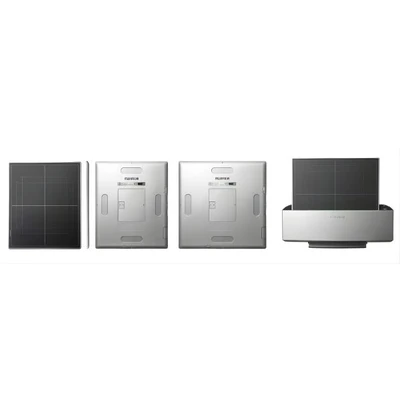

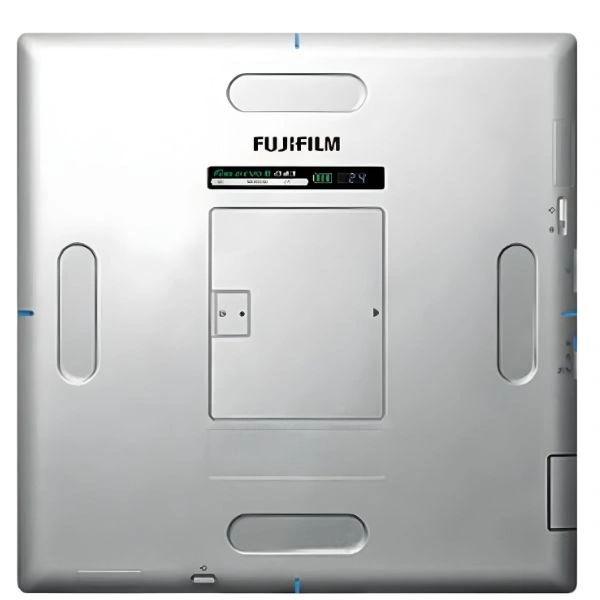

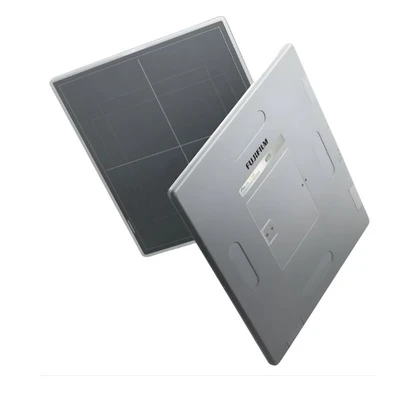

The Fujifilm FDR ES C35 DR System is a 14" × 17" wireless/tethered cassette-size digital radiography detector designed as an affordable and efficient DR retrofit solution. It offers excellent image quality with low-dose performance using Fujifilm’s proprietary Irradiated Side Sampling (ISS) technolo...
