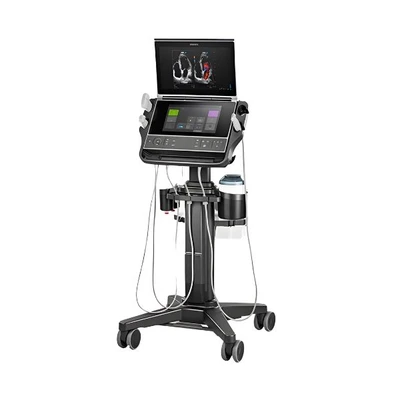

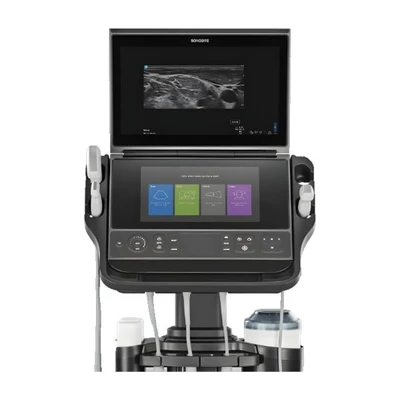

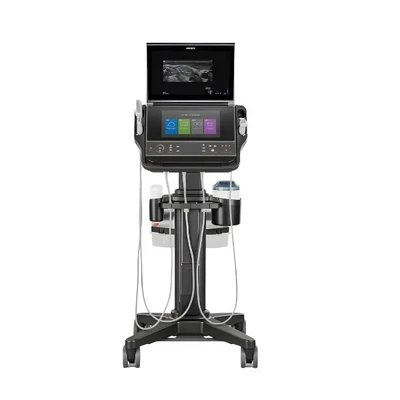

FujiFilm Sonosite PX Portable Ultrasound Machine

New

Specifications

Display : 15.6″ high-resolution (1920×1080) clinical screen
Touch Panel : Projected capacitive touchscreen with physical button support
Imaging Modes : 2D, M-Mode, Tissue & Pulse Inversion Harmonics, Colour Doppler, Power Doppler, PW Doppler, CW Doppler, TDI
Dynamic Range : Up to ~183 dB
Connectivity : Wi-Fi, Ethernet, USB 2.0/3.0, DICOM, 1080p video output
Operating System : Windows 10 IoT Enterprise 2019 LTSC
Transducer Ports : 3 (stand configuration); 1 (system only)
Ingress Protection : System: IP22; Transducers: IPX7
Footprint (Stand) : ~720 × 720 mm
Adjustable Height : 1072–1650 mm
Weight : ~7.5 kg (system); ~38.6 kg (system + stand)
Battery : Support Optional stand/caddy battery pack (varies)

highlights

Advanced point-of-care imaging with high resolution and dynamic imaging depth.
Hybrid control interface for efficiency and minimal learning curve.
Ergonomic design — adaptable work surface and compact footprint for busy clinical workflows.
Security & connectivity ready for modern healthcare IT environments.

in the box

Fujifilm Sonosite PX ultrasound system (system + stand)
15.6″ high-resolution clinical display and touchscreen controls
Power cables and stand components
Quick start documentation and user guides
Mounting accessories and cable management features

Use Cases :

Point-of-Care and Critical Care
Cardiac & Vascular Imaging
Obstetrics & Gynecology
Musculoskeletal & Small Parts
Procedural Guidance

Key Features :

Most advanced image clarity in the Sonosite POCUS lineup for superior visualization of anatomy and pathology.
Standard imaging modes: 2D (B-mode), Tissue Harmonic, Pulse Inversion Harmonic, M-mode, Colour Doppler, Power Doppler, Pulsed Wave (PW), Continuous Wave (CW), Tissue Doppler Imaging (TDI).
Proprietary processing technologies (e.g., speckle reduction, multi-beam imaging) enhance resolution and contrast.

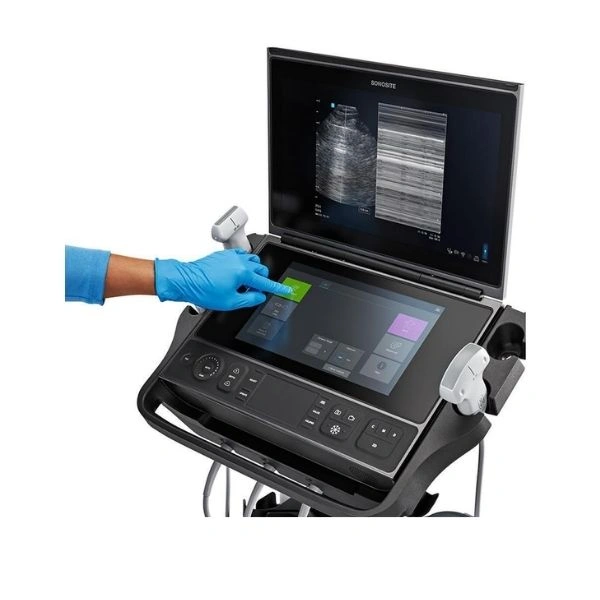

Hybrid controls: Touchscreen + physical buttons for efficient scanning and control.
Customizable presets and streamlined UI designed from clinician feedback.
Adaptable work surface with ergonomic adjustment from horizontal to vertical.
Built for clinical environments with rugged stack design and stable mobility.
Security hardened with standards compliance such as FIPS199/200 and NIST 800-53; secure boot and encrypted data support.
Built-in Wi-Fi, Ethernet, USB 2.0/3.0 and DICOM support for seamless integration into PACS/HIS workflows.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Fujifilm Sonosite PX Portable Ultrasound Machine is an advanced point-of-care diagnostic ultrasound system that delivers industry-leading image clarity, intuitive controls, and ergonomic flexibility for use in emergency, critical care, procedural, and general clinical settings. It features a hyb...
