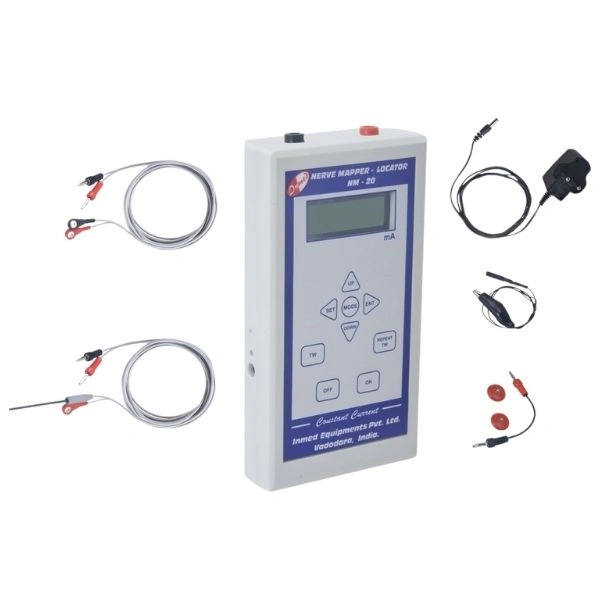

Inmed NM-20 Nerve Mapper Locator
New0.0|0 Ratings
₹52,680₹75,00030% off
Quantity :
1
Specifications
- Product Type : Nerve Mapper / Peripheral Nerve Locator
- Nerve Mapper Current Range : 1–20 mA, 1 mA steps
- Nerve Mapper Pulse Width : 50–300 µs, default 300 µs
- Nerve Mapper Frequency : 0.5–99 Hz, default 10 Hz
- Motor Nerve Locator Current : 0.1–10 mA, 1 mA steps
- Motor Nerve Locator Pulse Width : 40–200 µs
- Motor Nerve Locator Frequency : 0.5–10 Hz, default 1 Hz
- Sensory Nerve Locator Current : 0.1–10 mA, 1 mA steps
- Sensory Nerve Locator Pulse Width : 200–500 µs, default 300 µs
- Sensory Nerve Locator Frequency : 0.5–99 Hz, default 10 Hz
- Display : Alphanumeric LCD with backlight
- Current Control : Variable / constant-current operation
- Power : Mains adaptor + rechargeable battery
- Battery Indicator : Yes
- Audio-Visual Indication : Yes
- Automatic Shutdown : Yes
- Keypad : Soft-touch, spill-proof
- Mapping Probe : Transcutaneous mapping probe with cable
- Leads : Autoclavable
- Design : Portable, compact and lightweight
highlights
- Dual-purpose functionality: nerve mapping and nerve localization
- Transcutaneous nerve mapping: helps trace the course of nerves from the skin surface
- Motor nerve localization: supports identification of motor responses during nerve block procedures
- Sensory nerve localization: dedicated sensory mode for locating sensory nerves
- Adjustable stimulation: current, pulse width and frequency can be selected according to the operating mode
- Audio-visual feedback: provides indication during pulse delivery
- Portable design: compact and lightweight for clinical use
- Rechargeable operation: supports battery operation as well as mains power
- Autoclavable leads: suitable for clinical environments
in the box
- Transcutaneous mapping probe with cable
- Interface cable for locator/stimulator
- Main power adaptor
- Rechargeable battery
Use Cases :
- Peripheral nerve blocks
- Pain management procedures
- Surface/transcutaneous mapping of peripheral nerves
- Identification and localization of motor nerves
- Identification and localization of sensory nerves
- Defining anatomical landmarks for needle entry
- Nerve localization in patients with distorted anatomy
- Nerve localization in obese patients
- Nerve localization in growing children
- Identification of sensory nerves such as the glossopharyngeal nerve and maxillary branch of the trigeminal nerve for procedures in the OR and pain clinic
Key Features :
- Microprocessor-controlled nerve mapper and peripheral nerve locator
- Transcutaneous tracing of nerves
- Constant-current operation
- Variable/selectable current range
- Large, bright display for easy reading
- User-programmable pulse width and frequency
- Audio-visual indication for pulse delivery and errors
- Low-battery indication
- Automatic changeover between mains adaptor and rechargeable battery
- Automatic shutdown for power saving
- Compact, lightweight and user-friendly design
- Soft-touch, spill-proof keypad
- Autoclavable leads
- Suitable for motor and sensory nerve localization
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The INMED NM-20 Nerve Mapper-Locator is designed to identify the course and location of nerves lying beneath the skin. It can help identify the appropriate entry point for nerve blocks and define anatomical landmarks, particularly where anatomy may be difficult to identify, such as in growing childr...
Other Details
