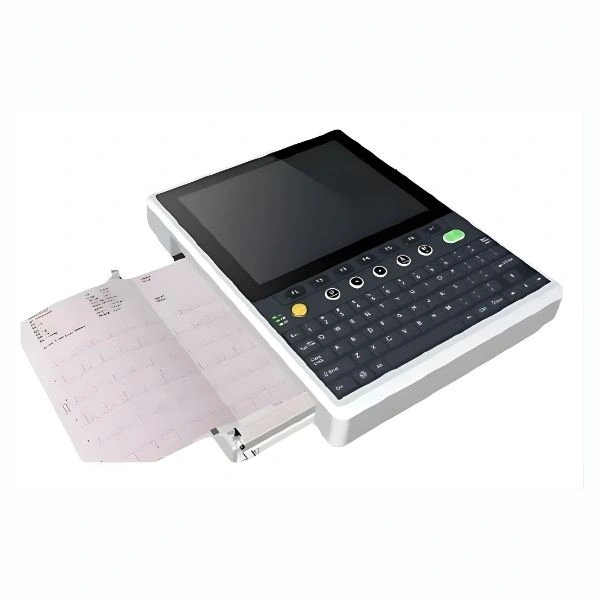

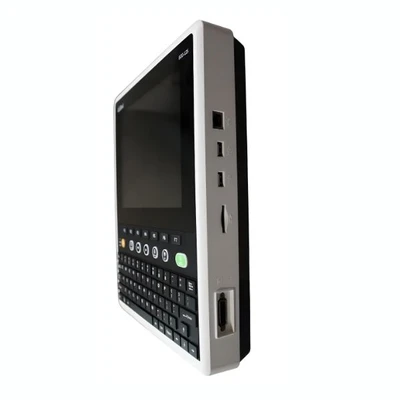

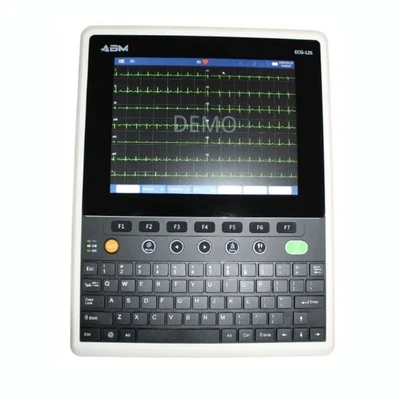

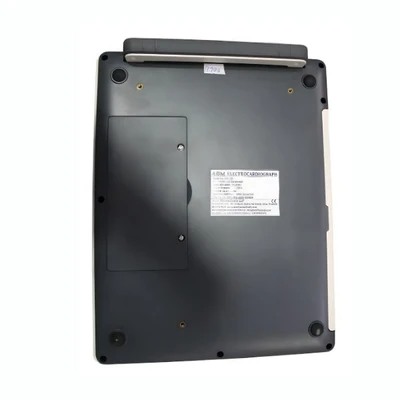

ABM 12S 12 Channel ECG Machine

New

4.5

12456 Ratings

₹80,000₹100,00020% off

Specifications

Product Name : ABM 12S 12 Channel ECG Machine
ECG Channels : 12 Channel (Simultaneous)
Lead System : Standard 12-Lead
Display : Color TFT / LCD
Recording Method : Thermal Printing
Print Width : 210 mm
Paper Speed : 25 mm/s, 50 mm/s
Sensitivity : 2.5, 5, 10, 20 mm/mV
Frequency Response : 0.05 – 150 Hz
Input Impedance : ≥ 50 MΩ
CMRR : ≥ 100 dB
Heart Rate Measurement Range : 30 – 300 bpm
Operating Modes : Auto / Manual
ECG Interpretation : Automatic
Noise Level : ≤ 15 μVp-p
Data Storage : Internal Memory
Connectivity : USB (LAN optional, model dependent)
Power Supply : AC 110–240 V, 50/60 Hz
Battery Rechargeable : Li-ion / SLA
Battery Backup : Approx. 3 – 4 hours
Safety Standard : IEC / CE compliant
Portability : Desktop / Portable
Weight : (Approx.) 4 – 6 kg
Warranty : Typically 1 Year

highlights

True 12-lead, 12-channel simultaneous printing
Faster diagnosis with auto interpretation
Clear waveform visibility on large color screen
Reliable performance in high patient-load settings
Portable design with battery backup

in the box

ABM 12S 12 Channel ECG Machine
10-Lead Patient Cable
Limb Electrodes (4 Nos.)
Chest Electrodes (6 Nos.)
ECG Thermal Paper (210 mm or compatible)
Built-in Rechargeable Battery
Power Cord
User Manual

Use Cases :

Cardiology departments
Multi-specialty hospitals
Diagnostic & pathology centers
Emergency rooms & ICUs
Pre-operative cardiac evaluation
Preventive health check-ups and cardiac camps

Key Features :

12-channel simultaneous ECG acquisition & printing
Large color TFT/LCD display for real-time waveform visualization
Automatic ECG interpretation & measurements
Auto and manual operation modes
Built-in high-speed thermal printer
Internal memory for ECG storage & recall
USB / optional LAN connectivity for data transfer (model dependent)
Low-noise, high-precision signal processing
Rechargeable battery for portable and bedside use
User-friendly keypad & menu navigation

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ABM 12S 12 Channel ECG Machine is an advanced electrocardiograph designed to acquire, display, analyze, and print all 12 ECG leads simultaneously. It delivers high-accuracy cardiac measurements with fast workflow, making it ideal for high-volume clinical environments. Featuring a large color dis...
