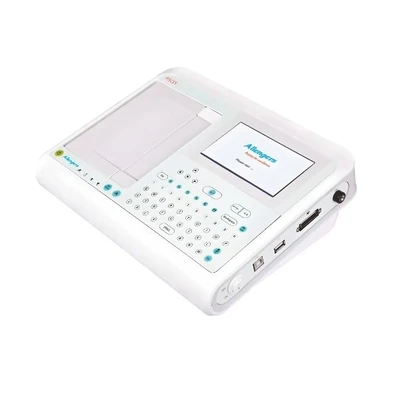

Allengers Pisces-106 Advance 6-Channel ECG Machine

New

Specifications

Brand : Allengers
Model : Pisces 106 Advance
ECG Channels : 6 channels (12 leads simultaneous acquisition)
Display : 5″ Colour TFT Touchscreen
Storage Capacity : >2000 ECG records
Printing Format : 6×2, 3×4+1 rhythm
Printer Type : In-built Thermal Printer (106 mm)
Data Export : USB export / PDF generation
Recording Modes : Auto & Manual
Battery Type : Built-in Lithium-ion
Power Supply : AC 110–240 V, 50/60 Hz
Filters : Baseline drift, pass, notch filters
Sampling Rate : 500 samples/sec per channel
CMRR : ~100 dB
Battery Backup : Standard print capacity on full charge
Indicators : Paper empty, battery status, lead off
Weight & Form : Portable, lightweight design

highlights

High-quality simultaneous 12-lead ECG acquisition with clear waveform display.
Comprehensive storage and reporting, including ECG replay and PDF exports.
Portable with touchscreen operation and solid battery backup.
LED status indicators and software update support via USB.

in the box

Allengers Pisces 106 Advance ECG Machine
Power Adapter & Cable
User Manual
Electrodes (standard set)
Thermal Paper Rolls (106 mm)
USB Pen Drive for Software Updates
Carrying Case

Use Cases :

Hospital Cardiology Units
OPDs & Clinics
Diagnostic & Preventive Health Check-ups
Longitudinal Patient Monitoring

Key Features :

12-Lead Simultaneous Acquisition: Records all 12 ECG leads in one go for precise diagnostics.
5″ Colour Touchscreen Display: Provides clear waveform visualization and user-friendly navigation.
Large Data Storage: Stores over 2000 ECG records with replay capability.
Versatile Printing Formats: Supports 6×2 and 3×4+1 rhythm formats on 106 mm thermal paper.
Data Export & Reports: Allows ECG raw data export and PDF report generation for sharing/patient records.
Portable with Battery Backup: Built-in lithium-ion battery supports mobile use in clinic or within hospital premises.
Auto & Manual Recording Modes: Flexible operation based on clinician preference.
LED Status Indicators: Alerts for paper empty, battery status, lead off, and mains charging.
USB Upgradable Software: Firmware can be updated via USB pen drive.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Allengers Pisces 106 Advance is a 6-channel resting electrocardiograph designed for accurate cardiac diagnostics. It captures all 12 leads simultaneously and presents them in a clear 6×2 format on a 5″ colour touchscreen, allowing clinicians to review ECG waveforms before printing. Its large sto...
