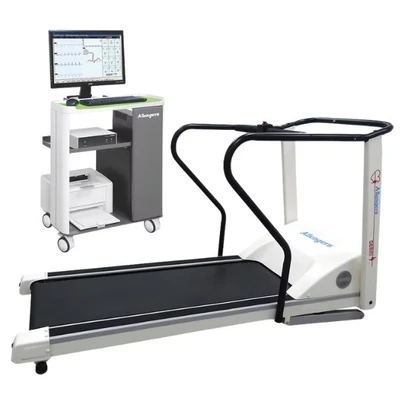

Allengers TMT Machine Stress Test System-(Gemini)

New

0.0|0 Ratings

Quantity :

Specifications

Product Type : Treadmill Stress Test System (TMT)
Model : Gemini
ECG Channels : 12-channel simultaneous acquisition
Sampling Rate : 4500 samples/sec
ADC : 16-bit
Frequency Response : 0.05 – 150 Hz
CMRR : >100 dB
Input Impedance : >100 MΩ
Patient Leakage Current : <10 µA
Display Sensitivity : 2.5, 5, 10, 20, 40, 80 mm/mV
Sweep Speed : 5, 12.5, 25, 50, 100 mm/sec
ECG Display Formats : Multiple (3x4, 6x2, 12 lead, median formats)
Operating System : Windows-based
Treadmill Speed : 0.8 – 16 km/h (expandable up to 20 km/h)
Treadmill Incline : 0 – 22% (expandable up to 25%)
Max Patient : Weight Up to 200 kg
Motor Power : Approx. 7 HP
Walking Area : ~1400 × 535 mm
Control Interface : USB isolated control
Power Requirement : 200–240V, 50 Hz
Safety Features : Emergency stop, defib protection
Connectivity : USB, optional wireless acquisition

highlights

High sampling rate (4500 samples/sec) ensures precise ECG capture
Stable baseline during stress testing improves diagnostic accuracy
Advanced diagnostic tools like ST/HR analysis & risk prediction
Smooth treadmill operation for enhanced patient comfort
Compatible with hospital systems (EMR/HIMS integration possible)
Strong safety features including emergency stop & leakage protection

in the box

Main TMT Console (Gemini System)
Motorized AC Treadmill Unit
12-Channel ECG Acquisition Module
Patient Cable & Electrodes
Software (CD/USB)
Interface cables & power cord
User manual & warranty certificate

Use Cases :

Cardiac stress testing (TMT)
Diagnosis of coronary artery disease (CAD)
Evaluation of exercise tolerance
Monitoring arrhythmias during exertion
Pre-operative cardiac assessment
Routine cardiology diagnostics in hospitals & clinics

Key Features :

Dual functionality: Stress ECG + Resting ECG
12-channel simultaneous ECG acquisition
User-friendly software with editable protocols
Real-time ECG monitoring & analysis
Online/PDF report generation
RR analysis, PVC detection, arrhythmia detection
Unlimited protocols (standard + user-defined)
USB interface for PC/Laptop connectivity
Wireless acquisition (optional) to reduce motion artifacts
Automatic NIBP measurement (optional model)
Emergency stop button for patient safety
Free lifetime software updates & support
Defibrillator protection with isolated acquisition box

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Allengers Gemini TMT System is a state-of-the-art computerized cardiac stress testing solution designed for accurate monitoring of heart activity during exercise. It integrates a high-performance treadmill with an advanced ECG acquisition system, ensuring precise and noise-free cardiac data even...
