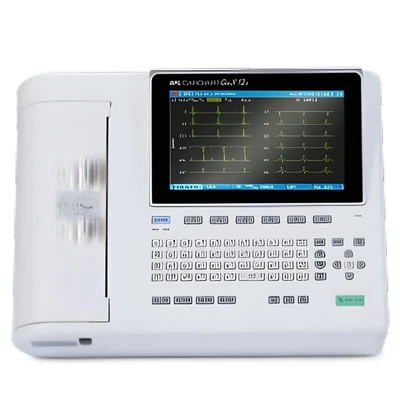

BPL Cardiart GenX 12i 12 Channel ECG Machine
New4.1|22 Ratings
₹1,02,000₹150,00032% off
Quantity :
1
Specifications
- Product Name : BPL Cardiart GenX 12i ECG Machine
- Channels : 12-channel
- Display : 9-inch Color TFT LCD
- Sampling Rate : Up to 500–1000 samples/sec
- Frequency Response : 0.05 – 150 Hz
- Recording System : Thermal printer
- Paper Speed : 5, 6.25, 12.5, 25, 50 mm/sec
- Heart Rate Range : 30 – 240 BPM
- Storage Capacity : 400–800 ECGs
- Connectivity : USB, LAN, FTP (model dependent)
- Battery : Rechargeable Lithium (~3000 mAh)
- Power Supply : 100–240V AC, 50/60 Hz
- Weight : Approx. 4.5 kg
- Dimensions : Approx. 420 × 320 × 100–128 mm
highlights
- High diagnostic accuracy using advanced interpretation algorithms
- Fast workflow with one-touch operation and quick startup
- Paperless reporting with digital export options
- Portable & compact design (~4.5 kg)
- Reliable in low-power environments due to battery support
- Enhanced clinical confidence with real-time waveform analysis
in the box
- Main ECG unit
- Patient cable
- Limb electrodes (4 Nos.)
- Chest electrodes (6 Nos.)
- Thermal paper (roll/Z-fold)
- Power cord & earth cable
- User manual
Use Cases :
- Hospitals (OPD, IPD, ICU, CCU)
- Cardiology departments
- Diagnostic centers & pathology labs
- Emergency and ambulance services
- Mobile cardiac screening units
Key Features :
- 9-inch Color TFT Display for clear waveform visualization
- 12-channel simultaneous ECG acquisition for comprehensive cardiac analysis
- Smart ECG interpretation (age, gender-based analysis)
- Arrhythmia detection & 2-minute waveform review
- USB connectivity & digital data export (PDF/HL7/FTP)
- Thermal printing with adjustable darkness
- User-friendly keypad with color-coded controls
- Long battery backup for uninterrupted operation
- On-screen electrode placement guidance
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The BPL Cardiart GenX 12i is a 12-channel resting ECG machine designed for accurate and reliable cardiac diagnosis. It features a large 9-inch color display, intelligent ECG interpretation, and digital connectivity for modern healthcare workflows. The device is built for high efficiency in hospitals...
