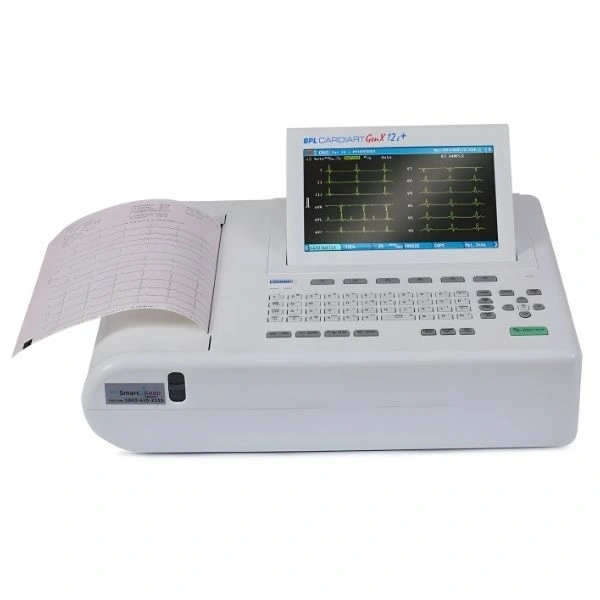

Bpl Cardiart Genx12i+ 12- Channel ECG Machine

New

0.0|0 Ratings

₹1,02,000₹159,00036% off

Quantity :

Specifications

Product Name : BPL Cardiart GenX 12i+ ECG Machine
Channels : 12-channel
Display : 8" Touch Color TFT LCD (800×480)
Leads : Standard 12 leads / Cabrera
Sampling Rate : 1000 samples/sec/channel
Frequency Response : 0.05 – 150 Hz
Recording System : Thermal printer (8 dots/mm, 216 mm paper)
Paper Speed : 5, 6.25, 12.5, 25, 50 mm/sec
Input Impedance : >10 MΩ
Heart Rate Range : 30 – 240 BPM
Storage Capacity : Up to 800 ECGs
Connectivity : USB, LAN, Wi-Fi, FTP
Battery : 14.8V, 3000 mAh (≈250 ECGs/charge)
Power Supply : 100–240V AC, 50/60 Hz
Weight : Approx. 4.5 kg
Dimensions : 420 × 320 × 102 mm

highlights

High diagnostic accuracy using Glasgow interpretation algorithm
Fast startup (~4 seconds) for emergency situations
Paperless workflow with EMR/HL7 integration
Portable & compact (~4.5 kg) for bedside and field use
Efficient data management with internal storage up to 800 ECGs
Flexible printing formats (3×1, 6×2, 12×1, etc.)

in the box

Main ECG unit
Patient cable (1 No.)
Limb electrodes (4 Nos.)
Chest electrodes (6 Nos.)
Thermal paper (roll/Z-fold)
Power cord & earth cable
User manual

Use Cases :

Hospitals (OPD, IPD, ICU, CCU)
Cardiology departments
Diagnostic and pathology labs
Emergency and ambulance services
Corporate health check-up & mobile screening units

Key Features :

8-inch tiltable color touch screen for clear waveform visualization
12-channel simultaneous ECG acquisition for comprehensive cardiac analysis
Advanced ECG interpretation (University of Glasgow algorithm) with age, gender, and race-based analysis
Arrhythmia detection & 2-minute waveform review
USB, LAN, Wi-Fi connectivity & digital export (PDF/HL7/FTP)
Thermal printing with adjustable trace darkness
QWERTY keypad + one-touch function keys for faster workflow
On-screen electrode placement guidance
Long battery backup for uninterrupted use

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL Cardiart GenX 12i+ is an advanced 12-channel resting ECG machine designed for precise cardiac diagnostics and efficient clinical workflow. It features an 8-inch tiltable color touchscreen, intelligent ECG interpretation, and seamless digital connectivity. The system is optimized for hospital...
