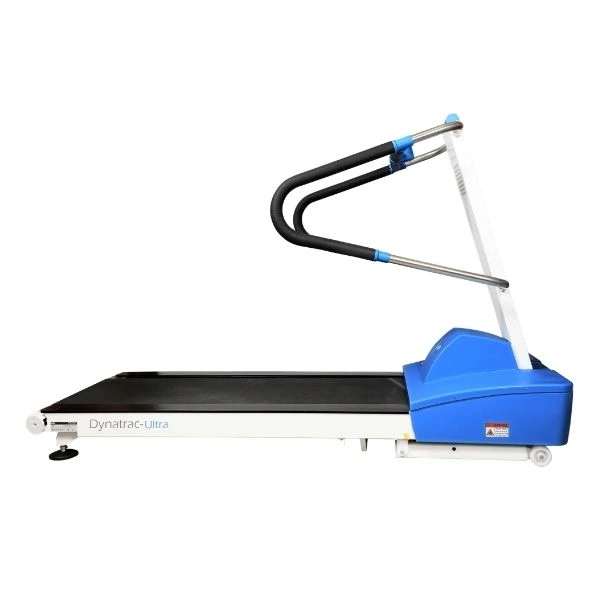

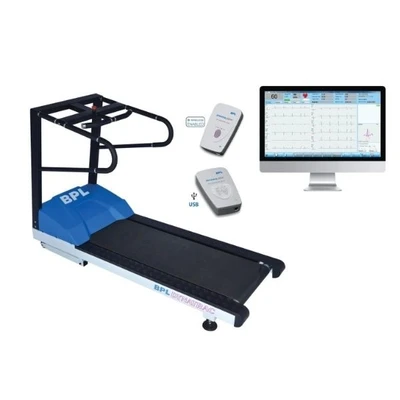

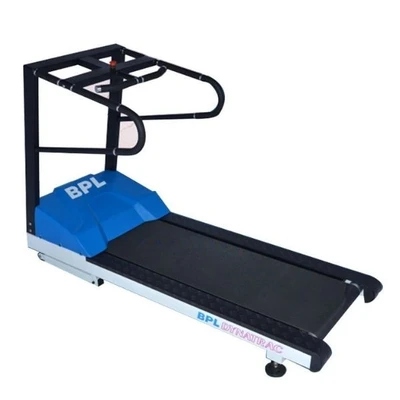

BPL DYNATRAC Ultra Cardiac Stress Test Machine

New

4.3|32 Ratings

₹2,13,000₹300,00029% off

Quantity :

Specifications

Product Name : DYNATRAC Ultra
Product Type : Cardiac Stress Test / TMT System
Brand : BPL
ECG Sampling Rate : 200 samples/sec
ECG Acquisition : Simultaneous 12-lead
ECG Display Resolution : 1024 × 768 pixels
ECG Display Formats : 3 Leads / 6 Leads / 12 Leads Median
ECG Display Speed : 25 mm/sec or 50 mm/sec
Calculated Parameters : ST Levels, ST Slopes, HR, METS
Treadmill Speed Range : 0 – 30 km/h
Inclination Range : 0 – 26%
Walking/Running Surface : 1580 × 480 mm
Patient Weight Capacity : Up to 180 kg
Power Requirement : 230V, 5A
Input Voltage : 200–240 VAC, 50 Hz
Machine Dimensions : 197 × 73 × 130 cm
Machine Weight : 129 kg
Gross Weight : 187 kg
Filter Options : 20 Hz / 40 Hz selectable
Printing Speed : 25 mm/sec
Connectivity : USB Interface
Safety Classification : Class I as per IEC 60601-1
Frequency Response : 0.5 Hz to 100 Hz
Operating Temperature : 10°C to 40°C
Relative Humidity : 20% – 90% non-condensing

highlights

Accurate BP measurement at precise intervals during stress tests
Designed to overcome noise and motion-related ECG disturbances
Supports both wired and wireless ECG acquisition options
Continuous monitoring and display of multiple cardiac parameters
Compatible with advanced ECG interpretation algorithms
Large treadmill running surface for patient comfort
High-speed ECG sampling and detailed waveform analysis

in the box

DYNATRAC Ultra Stress Test Software
ECG Acquisition Module
ECG Cable & Electrodes
Medical Treadmill
Patient Safety Harness
Power Cables & Connectors
User Manual

Use Cases :

Cardiac stress testing in hospitals
Exercise ECG analysis in cardiology departments
TMT diagnostics in diagnostic centers
Coronary artery disease screening
Arrhythmia detection during exercise
Preventive cardiac health assessments
Cardiac rehabilitation monitoring
Corporate and executive health check-ups

Key Features :

Advanced Windows-based stress test software for accurate ECG recording
Motion artefact reduction technology during exercise testing
Flexible treadmill protocols with preset and customizable options
USB-based ECG acquisition system for reliable data transfer
Optional Bluetooth-enabled wireless ECG transmitter
Automated blood pressure monitoring support
HES® HANNOVER ECG analysis and interpretation system compatibility
Real-time monitoring of ECG, BP, HR, METS, and ST levels
User-defined report generation and printing support
High patient weight capacity up to 180 kg

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL DYNATRAC Ultra Cardiac Stress Test Machine is an advanced treadmill stress test (TMT) system designed for cardiac diagnostic procedures. It helps clinicians accurately monitor ECG, heart rate, blood pressure, ST changes, and other cardiac parameters during exercise stress testing. The system...
