Shipping time and rates
Shipping about 5-7 days

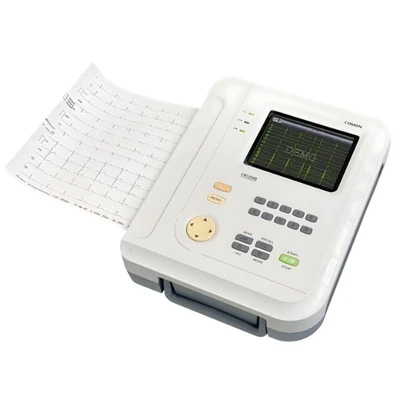

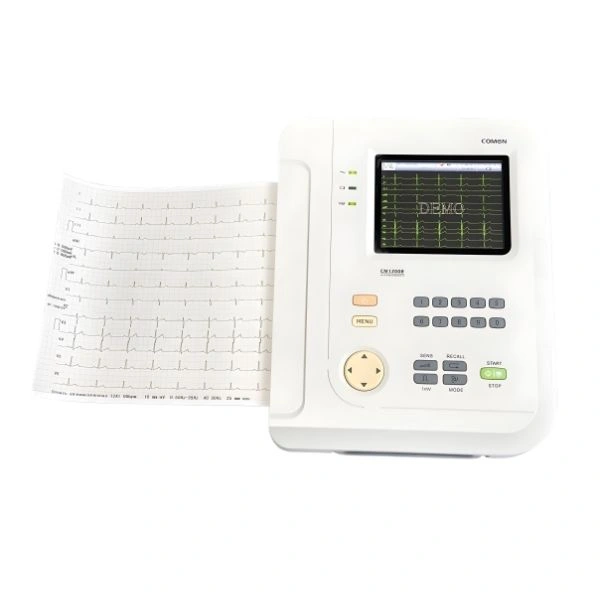

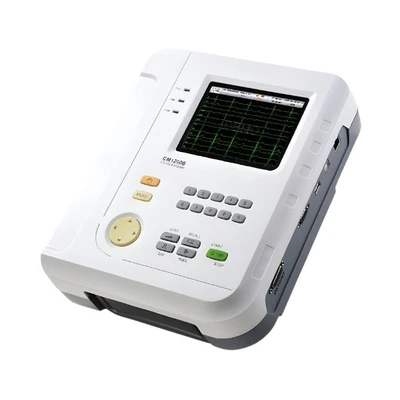

Comen CM1200B 12-Channel ECG Machine
New4.1|23 Ratings
Quantity :
1
Specifications
- Brand : Comen
- Model Name/Number : CM1200B
- Number Of Channels : 12 Channels
- Configuration : Twelve Channel ECG
- Input Circuit : Defibrillation Production Built-In
- Lead : Standard 12 Leads
- Acquisition Mode : Simultaneous 12 Lead Acquisition
- Input Impedance : >50 M Ohm
- Time Constant : >5s
- Frequency Response : 0.05-150 Hz
- Calibration Voltage : 1mV +/-1%
- Noise Level : <15, Vp-p
- Anti Baseline Drift : Automatic
- Dimension : 316 x 259 x 98 mm
- Warranty : 1 year
- Power Supply : AC 100–240V, 50/60 Hz
highlights
- Accurate and stable ECG signal acquisition
- Clear waveform display and high-quality printouts
- User-friendly interface
- Portable and suitable for bedside monitoring
- Reliable performance for routine and emergency cardiac diagnostics
in the box
- CM1200B 12-channel Electrocardiograph
- ECG Cable
- Bulb Electrode 1 Set
- Clamp Electrode 1 Set
- Gel Bottle
- Power Cable
- Earthing Cable
- User Manual
Use Cases :
- Cardiology departments
- Hospitals and multi-specialty clinics
- Diagnostic and pathology centers
- Emergency rooms and ambulances
- Routine health check-ups
- Pre-operative and post-operative cardiac evaluation
Certificaitons
- CE Marked (Notified Body 0434) — certified for conformity with applicable EU health and safety requirements, with assessment by an independent notified body
Why Choose Comen CM1200B ECG Machine?
- Running high daily ECG volumes in an OPD or clinic: Automatic measurement, interpretation, and up to 122 types of arrhythmia analysis can help reduce the time spent manually reviewing each report.
- Worried about defibrillation exposure during monitoring: Built-in defibrillation protection on the input circuit is designed to provide protection in this situation.
- Need to move the machine easily between rooms: The invisible handle and compact 316 × 259 × 98 mm footprint make it easier to move and position.
- Staff who do not all share the same primary language: Multi-language interface support, including Chinese, English, Spanish, Polish, and more, makes routine operation easier for different users.
- Concerned about power reliability: The built-in rechargeable battery allows the machine to continue operating during brief power interruptions.
- Need A4 reports for filing or patient records: The built-in printer supports A4 paper, so A4 report printing does not require an additional add-on.
Key-Features of Comen CM1200B ECG Machine
- 12-lead simultaneous acquisition and amplification with an all-digital, full-floating design
- Defibrillation protection built into the input circuit
- Selectable automatic measurement and interpretation
- Supports up to 122 types of arrhythmia analysis
- Manual, Auto, and Rhythm working modes
- Multiple recording formats — 12×1, 3×4, 6×2, and rhythm-lead combinations
- 5.7" single-color LCD display with 320×240 resolution
- Multi-language interface — Chinese, English, Spanish, Polish, and more
- Built-in thermal printer supporting rolled and Z-folded paper, including A4
- Adjustable recording speed — 5, 10, 12.5, 25, or 50 mm/s
- Built-in rechargeable 14.4V lithium-ion battery with AC power operation
- Stores up to 300 ECGs in internal memory, with USB expansion support
- Large-button, individually backlit alphanumeric keyboard
- Invisible handle for easy movement between rooms or departments
- Lead status diagram for quick visual confirmation of connections
- High-precision digital filtering to reduce baseline drift and interference
- Compact footprint — 316 × 259 × 98 mm
Warranty
1 Year
Seller
AA Medie QuipLearn More
Product Description
The Comen CM1200B is a 12-channel electrocardiograph designed for routine ECG recording in general OPDs, cardiology clinics, and diagnostic centres. It captures all 12 leads simultaneously using an all-digital, full-floating design and supports automatic measurement and interpretation, including up ...
