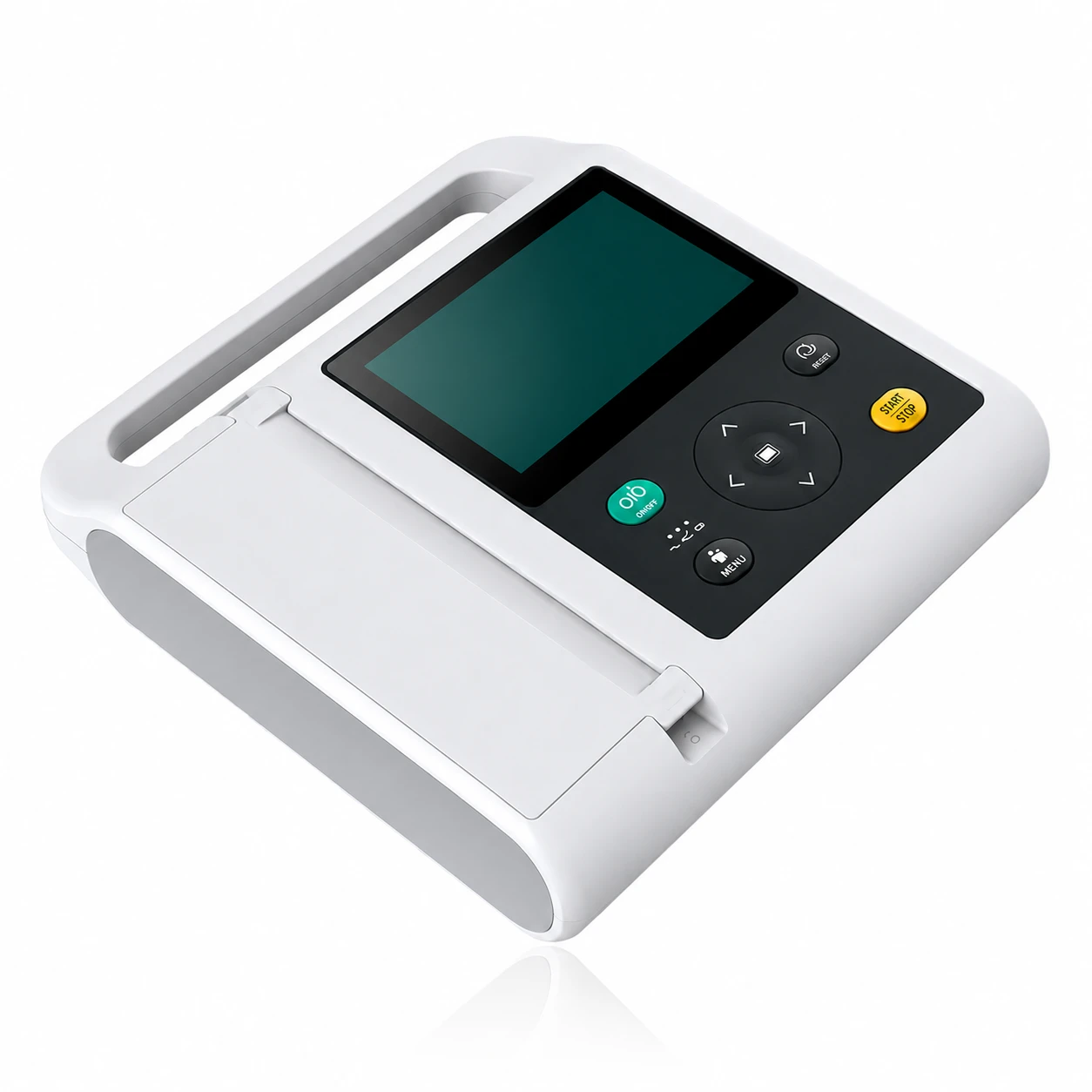

Elvionix ELV Cardia 12 ECG Machine

New

0.0|0 Ratings

₹47,999₹60,00020% off

Quantity :

Specifications

Model: ELV Cardia 12
ECG Channels: 12-Channel
Lead System Standard 12 Leads
Lead Acquisition: Simultaneous 12-Lead Acquisition
Display: 7-inch Color LCD (800 × 480)
Operating Modes: Manual, Auto, R-R, Store
Recording Formats: 3-Channel, 6-Channel, 12-Channel
Paper Type: 210 mm × 30 m Thermal Roll
Paper Speed: 6.25, 12.5, 25, 50 mm/s
Sensitivity: Auto, 2.5, 5, 10, 20, 40 mm/mV
Frequency Response: 0.05–160 Hz
CMRR: ≥120 dB
Filters: AC Filter (50/60 Hz), EMG Filter, Anti-Drift Filter
Patient Storage: Up to 250 Records
Connectivity: USB, UART
Battery: Built-in Rechargeable Li-ion Battery
Power Supply: AC 110–230V, 50/60 Hz
Dimensions: 347 × 293 × 83 mm
Weight: 4.8 kg

highlights

Simultaneous 12-lead ECG acquisition for accurate cardiac analysis
7-inch high-resolution color LCD display
Automatic ECG interpretation with advanced digital filtering
Multiple operating modes: Manual, Auto, R-R, and Store
Stores up to 250 patient records
Supports 3-channel, 6-channel, and 12-channel recording formats
Built-in rechargeable Li-ion battery for uninterrupted operation
USB and UART connectivity for data transfer and external printing
Automatic baseline adjustment for clear waveform display
Compact, portable design for clinics, hospitals, and emergency care

in the box

ELV Cardia 12 Main Unit
Patient Cable
Limb Electrodes Set
Chest Electrodes Set
Power Cable
Grounding Cable
Thermal Recording Paper Roll
User Manual

Use Cases

Routine cardiac screening in hospitals and clinics
ECG monitoring in emergency and critical care units
Pre-operative and post-operative cardiac assessment
Cardiology consultations and diagnostic centers
Health check-up camps and preventive screenings
Monitoring patients with arrhythmias and heart conditions
Outpatient departments (OPD) and physician practices
Bedside cardiac monitoring in inpatient settings

Key Features

Simultaneous 12-lead ECG acquisition
7-inch high-resolution color LCD display
Automatic ECG interpretation
Advanced digital filtering for accurate results
Multiple recording modes: Manual, Auto, R-R, and Store
Stores up to 250 patient records
Supports 3-channel, 6-channel, and 12-channel print formats
Built-in rechargeable Li-ion battery
USB and UART connectivity
Compact and portable design

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ELV Cardia 12 12-Channel ECG Machine is a compact and reliable cardiac monitoring solution designed for hospitals, clinics, and diagnostic centers. Featuring simultaneous 12-lead acquisition, a 7-inch color LCD display, and automatic ECG interpretation, it ensures accurate and efficient diagnosi...
