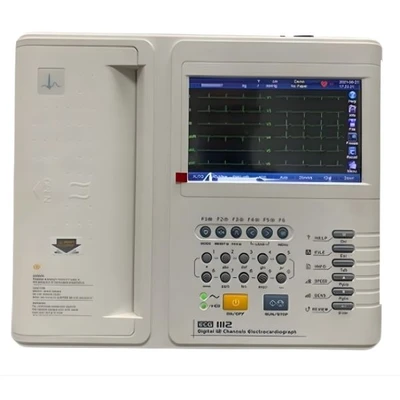

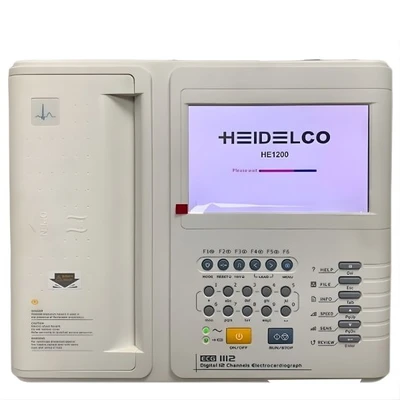

Heidelco HE1200 12-Channel ECG Machine

New

₹73,000₹125,00042% off

Specifications

Model : HE1200
Lead System : Standard 12-lead / Cabrera, simultaneous acquisition
Sampling Rate : 8000 samples/sec
A/D Conversion : 12-bit
Input Circuit : Floating, defibrillation protected
Input Impedance : ≤50 MΩ
Frequency Response : 0.05 – 150 Hz
CMRR : >100 dB
Noise Level : ≤15 µVp-p
Sensitivity : 0.25–40 mm/mV (±2%)
Operation Modes : Auto, Manual, Rhythm, Histogram, Trend
Printing System : Built-in thermal printer
Print Speed : 5–50 mm/s (multiple options)
Paper Type : 215 mm roll / Z-fold
Storage : 200 reports (internal) + SD card
Connectivity : PC, HL7, external storage
Battery : Li-ion rechargeable (≈4400 mAh)
Power Supply : AC 220V ±10%, 50 Hz
Dimensions : ~285 × 200 × 55 mm
Weight : ~3.9 kg
Safety : IEC Class I, Type CF

highlights

High-accuracy ECG measurement with advanced signal processing
Real-time waveform display and instant print capability
User-friendly interface for fast operation
Strong connectivity (PC, SD card, HL7 support)
Reliable performance in both stationary and mobile setups
Designed for continuous clinical use

in the box

Main ECG Unit (HE1200)
Standard 10-core patient cable
Chest electrodes & limb electrodes
ECG paper roll
Power cord
Ground wire
User manual & warranty card

Use Cases :

Cardiology departments & ICUs
Emergency rooms & ambulances
Hospitals and nursing homes
Diagnostic centers & ECG labs
Routine cardiac screening & monitoring
Routine cardiac screening & monitoring

Key Features :

Simultaneous 12-lead ECG acquisition for complete cardiac analysis
Large 10-inch color display for clear waveform visualization
Multiple operation modes: Auto, Manual, Rhythm, Histogram, Trend chart
High sampling rate of 8000 samples/sec for precise waveform capture
Advanced filters: AC, EMG, Drift, Low-pass for noise reduction
Built-in thermal printer with multiple print formats
Internal storage up to 200 ECG reports + SD card support
Defibrillator & pacemaker protection for safety
Rechargeable Li-ion battery backup
Compact, portable, and durable design

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Heidelco HE1200 12-Channel ECG Machine is a high-performance electrocardiograph designed for accurate cardiac monitoring and diagnosis in clinical environments. It captures simultaneous 12-lead ECG signals with high precision using advanced signal processing and filtering systems. The device fea...
